POINT I/O Output Module 11
Publication 1734-IN018A-EN-P - November 2004
dc Output Module Cat. No. 1734-OB2
dc Output Module Cat. No. 1734-OB4
Output Terminal Common Terminal Power
Channel 0 0, 2 4 6
Channel 1 1, 3 5 7
Module power is supplied from the internal power bus.
Output Terminal Common Terminal Power
Channel 0 0 6
Channel 1 1 7
Channel 2 2 4
Channel 3 3 5
Module power is supplied from internal power bus.

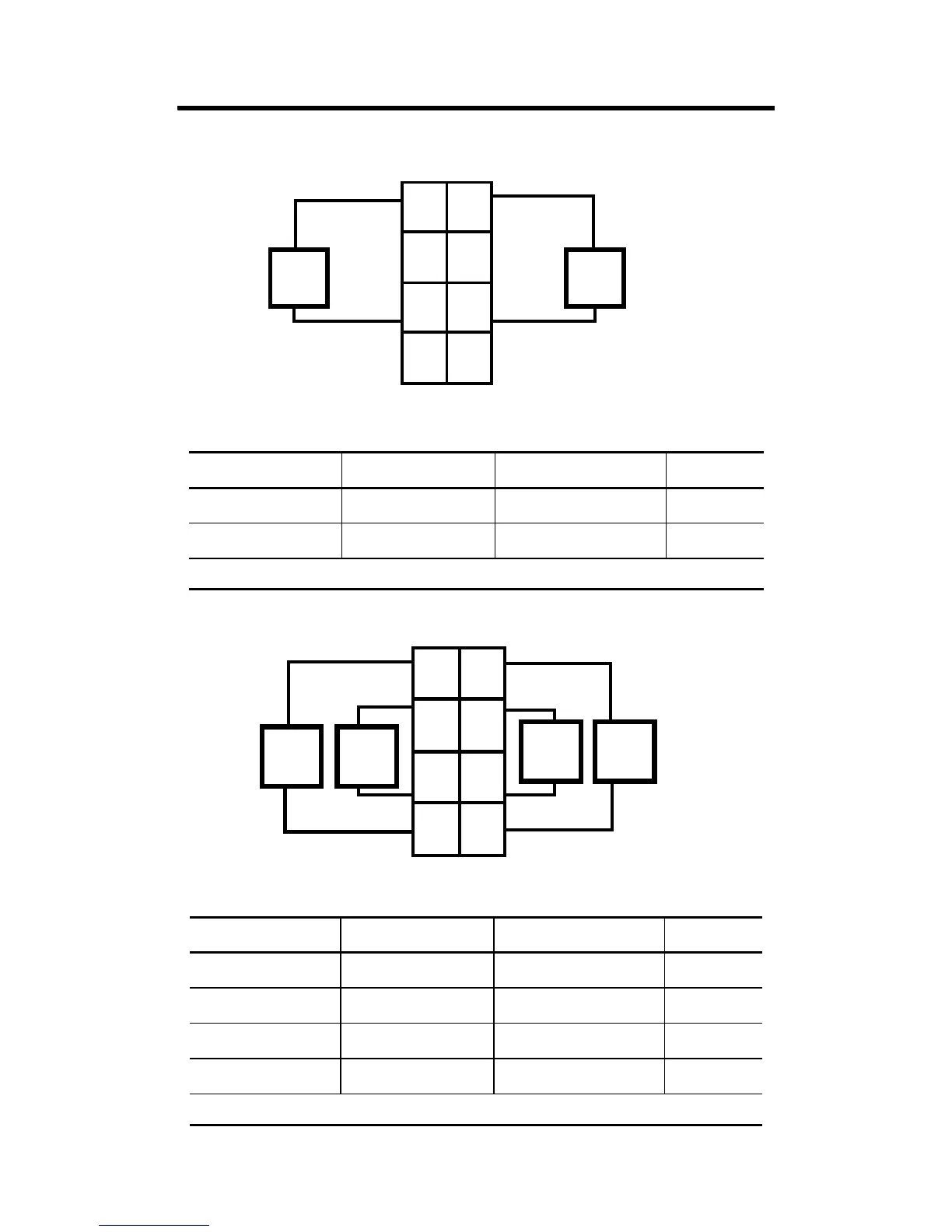

Out 0
Out 1
Out 1
Out 0
CC
V
V
Load
Load
42014
V = 12/24V dc, C = Common
Field power is supplied from internal power bus
1734-OB2
0
2
6
4
3
5
7
1
Out 0 Out 1
Out 3Out 2
C
C
C
C
Load Load
42015
Load
Load
V = 12/24V dc, C = Common
Field power is supplied from internal power bus
1734-OB4
0
2
6
3
1
7
45
