Allen-Bradley 1756 User Manual

12 Rockwell Automation Publication 1756-RM011A-EN-P - June 2016
Chapter 2 Emulation Mode

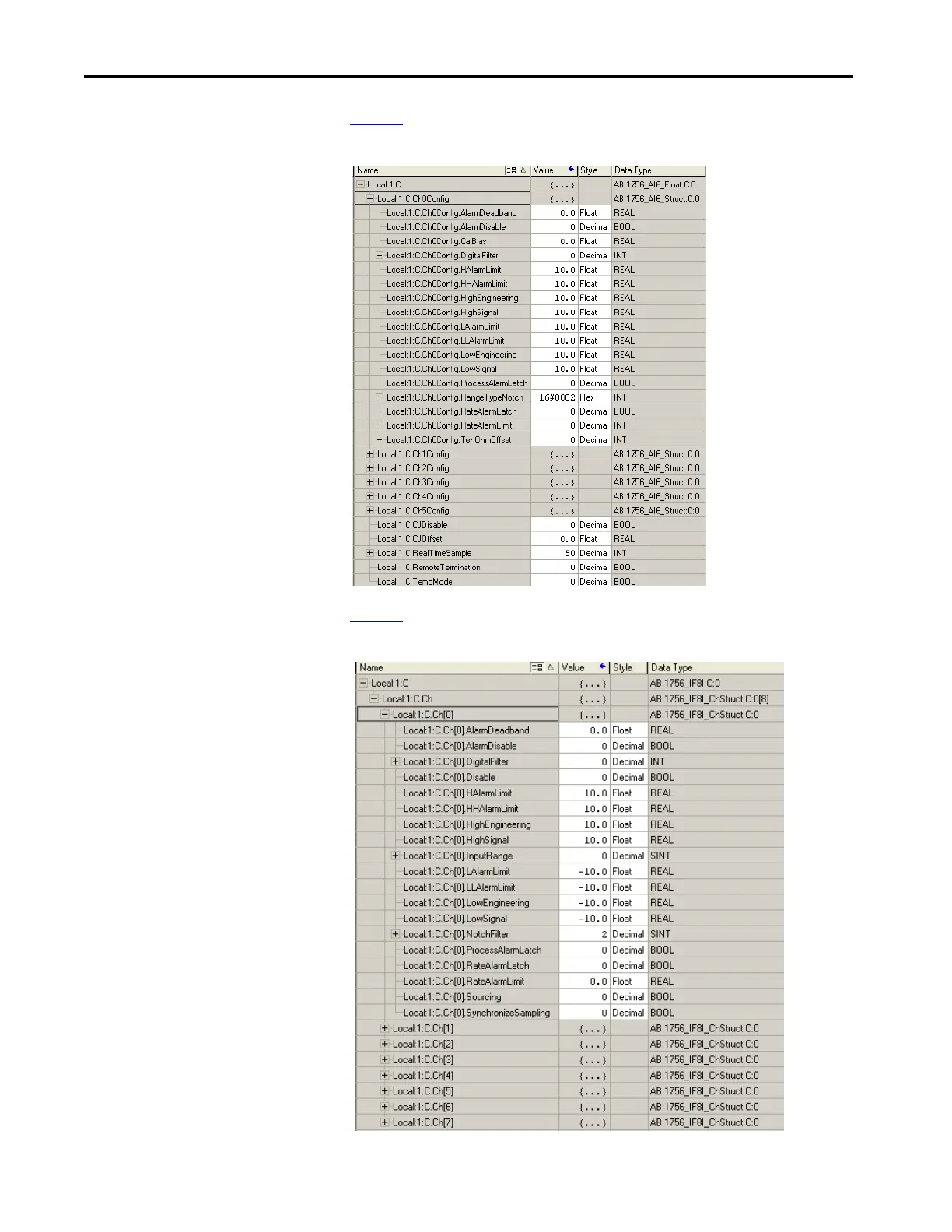

Figure 1 shows the data sent from IF6I to IF8I.
Figure 1 - IF6I Configuration Example
Figure 2 shows how the IF8I sees the data internally.
Figure 2 - 1756-IF8I Data Example

Allen-Bradley 1756 Specifications

General

Brand	Allen-Bradley
Model	1756
Category	Control Unit
Language	English
