Allen-Bradley 1769-L36ERM Quick Start

22 Rockwell Automation Publication IASIMP-QS023B-EN-P - December 2012
Chapter 1 Prepare the CompactLogix 5370 L3 Controller Hardware

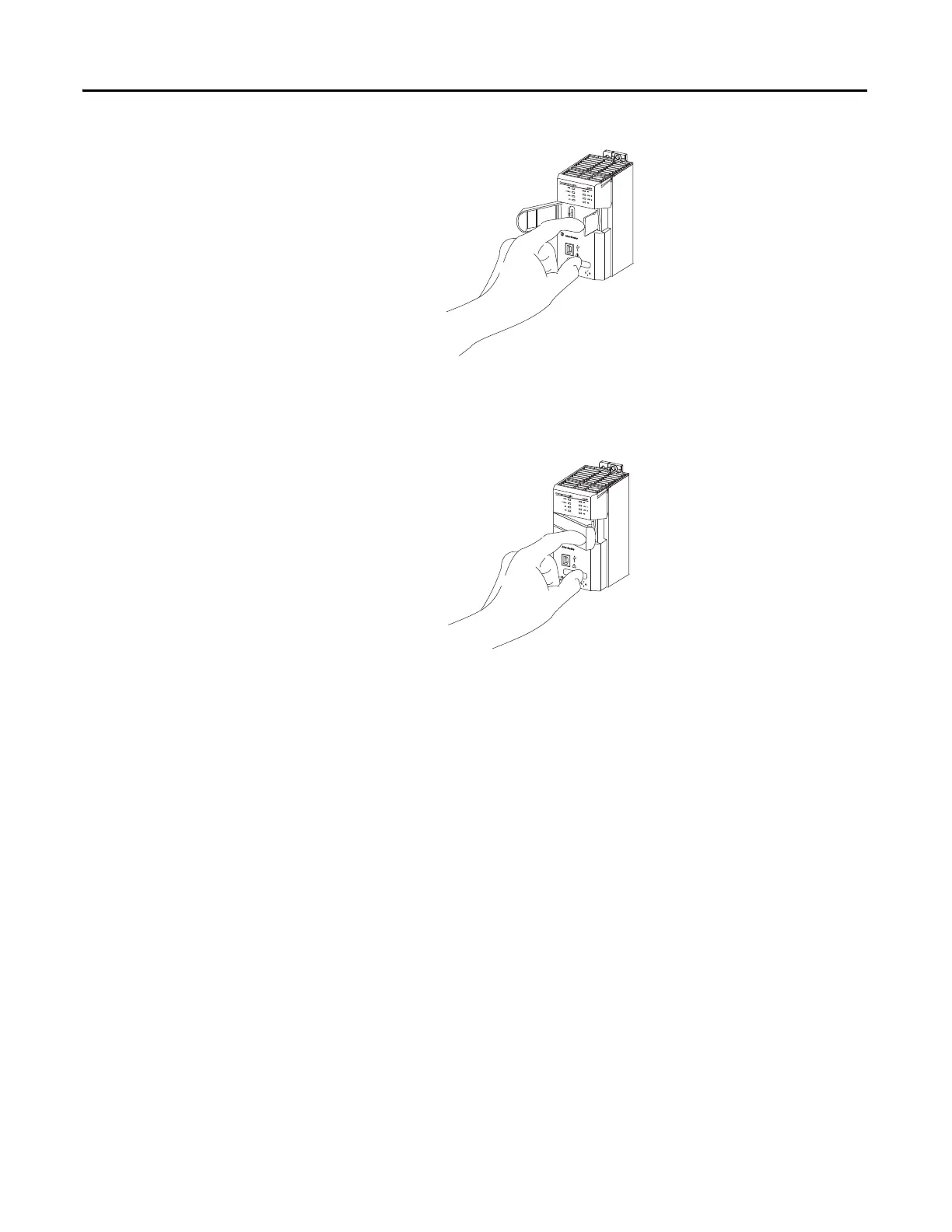

3. Insert the SD card into the SD
card slot.
You can install the SD card in one
orientation only. The beveled
corner should be at the top. An
orientation logo is printed on the
card.
If you feel resistance when
inserting the SD card, pull it out and change the orientation.
4. Gently press the card until it clicks
into place.
5. Close the SD card door.

Allen-Bradley 1769-L36ERM Specifications

General

Brand	Allen-Bradley
Model	1769-L36ERM
Category	Controller
Language	English
