6 Rockwell Automation Publication IASIMP-QS023B-EN-P - December 2012
Where to Start

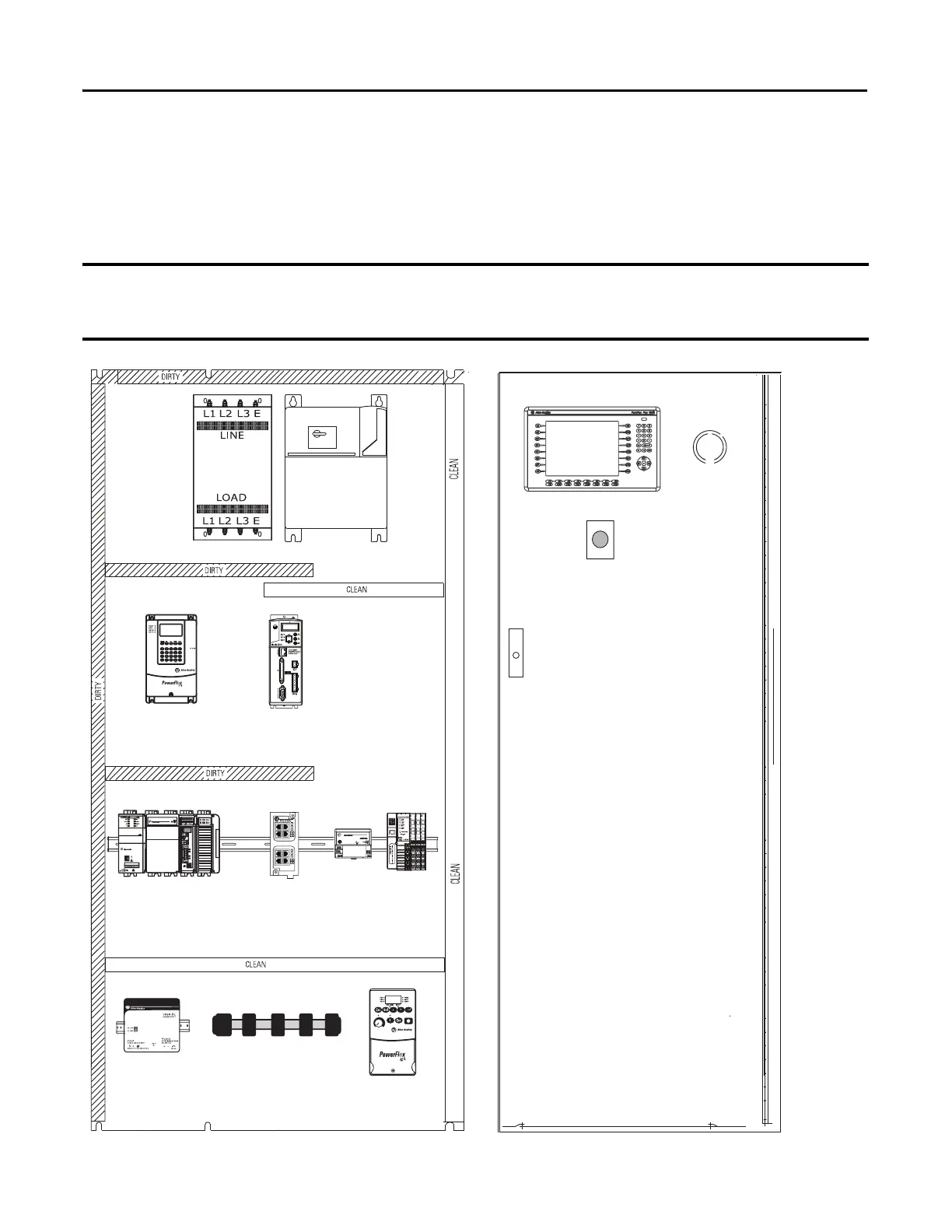

Sample Panel Layout
The sample panel layout shows the orientation of an example CompactLogix 5370 L3 control
system using EtherNet/IP networks and DeviceNet networks.
IMPORTANT
The specific layout of CompactLogix 5370 L3 control systems varies by application. The following graphic is an example
panel layout. The graphic shows a PowerFlex 40 drive used on a DeviceNet network. You can also use a PowerFlex 40
drive on an EtherNet/IP network.
1 (Front)1 (Front)1 (Front)
2 (Rear)
AC Line Filter
PowerFlex 70 Drive
PowerFlex 40 Drive
Kinetix 350 Drive
Line Interface
Module
DeviceNet Power Supply
DeviceNet KwikLink System
CompactLogix 5370 L3
Control System
Ethernet
Switch
Distributed POINT I/O
Modules
Through-the-door
Disconnect
PanelView Plus Terminal
E-Stop Push Button
