Rockwell Automation Publication 750-IN001P-EN-P - April 2017 255
I/O Wiring Chapter 5

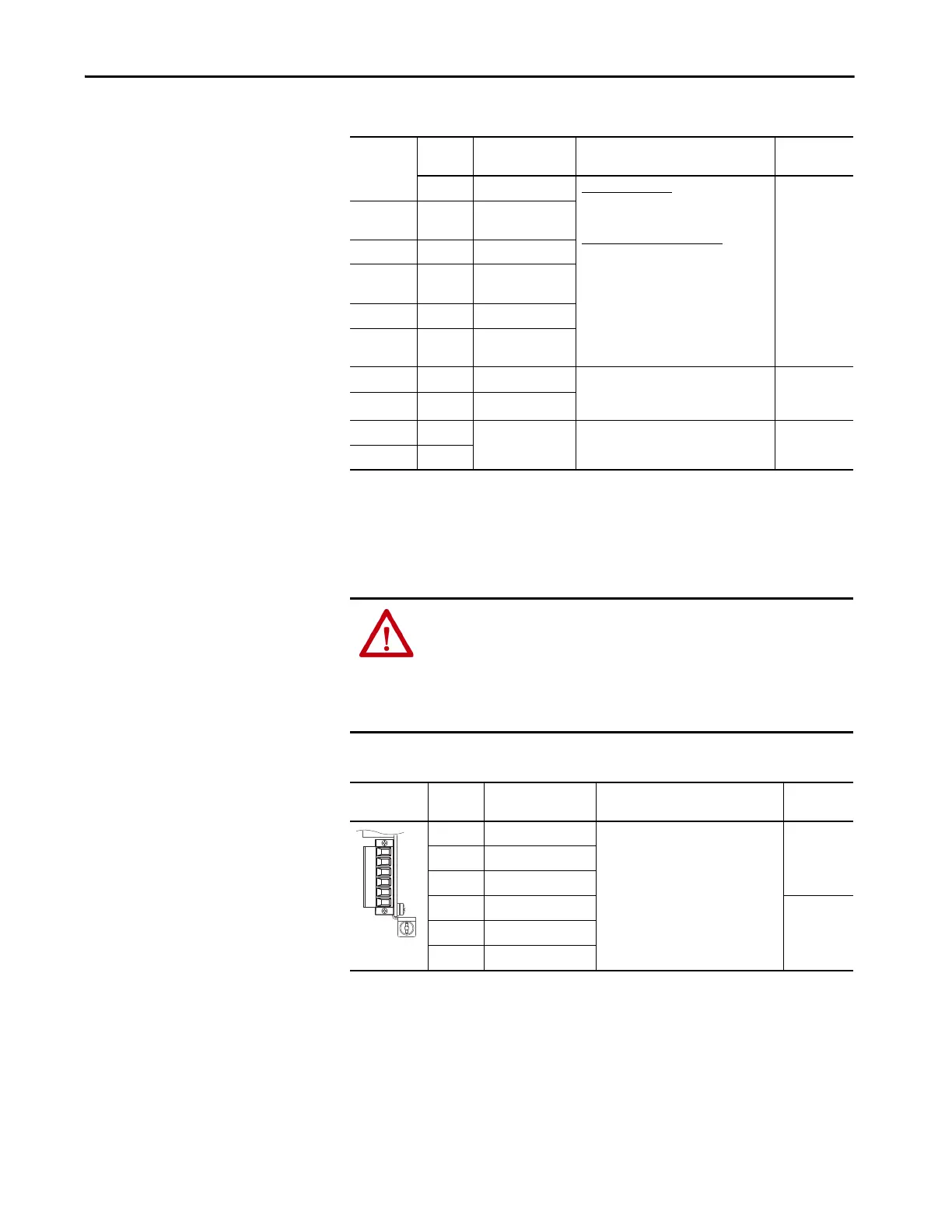

Table 73 - TB2 Terminal Designations (Two Relay Outputs: 2R)
Di0 Digital input 0 24V DC (30V DC Max) – Opto isolated
High state: 20…24V DC 11.2 mA DC
Low state: 0…5V DC
120V AC (132V AC Max) 50/60 Hz
(3)
– Opto
isolated
High state: 100…132V AC
Low state: 0…30V AC
1
On port X
Di0P Digital input 0
power
(1)
Di1 Digital input 1
Di1P Digital input 1
Power
(1)
Di2 Digital input 2
Di2P Digital input 2
power
(1)
Ip Input power External 24V DC or 115V AC power supply
input connections. Does not power the
main control board.
Ic Input common
EnC Enable output ATEX fault enable output. Used only when
an ATEX option module is installed.
EnNO
(1) Digital Inputs are either 24V DC (1132C) or 115V AC (1132D) based on module catalog number. Verify applied voltage is correct
for I/O module.
(2) Differential – External source must be maintained at less than 160V regarding PE. Input provides high common mode
immunity.
(3) For CE compliance use shielded cable. Do not exceed cable length of 30 m (98.4 ft).
(4) I/O Module parameters also have a port designation.
ATTENTION: Risk of equipment damage exists. Verify that the correct
voltage is applied to the I/O Module digital inputs. See the I/O Module
catalog number to determine the voltage rating.
• 20-750-1132C-2R is rated 24V DC
• 20-750-1133C-1R2T is rated 24V DC
• 20-750-1132D-2R is rated 120V AC
Relay Out Terminal Name Description Related
Parameter
R0NO Relay 0 N.O. Relay normally open contact output:
240V AC, 30V DC, 3.5 A max
General-purpose (inductive)/resistive
Relay normally closed contact output:
240V AC, 30V DC, 5 A max
Only resistive
10, 100, 101,
105, 106
On port X
R0C Relay 0 common
R0NC Relay 0 N.C.
R1NO Relay 1 N.O. 20, 110, 111,
115, 116
On port X
R1C Relay 1 common
R1NC Relay 1 N.C.
Table 72 - TB1 Terminal Designations (Continued)
Terminal Name Description Related
Parameter
(4)
R0NO
R0C
R0NC
R1NO
R1C
R1NC
To Next Page
