Rockwell Automation Publication 5069-UM004A-EN-P - April 2019 227
Troubleshoot Your Module Appendix A
Point Diagnostics
Point diagnostics provide information on an individual point basis. For
example, you can check individual points on a 5069-IB8S or 5069-IB8SK
safety input module for the presence of a Short Circuit condition.
Remember the following:
Not all Compact 5000 I/O digital modules provide point diagnostics.
The point diagnostics that are available vary by module type and
functionality.
There are some differences between modules, but most commonly, the
Module Properties dialog box category from which you can access point
diagnostics is Points.
Figure 33 shows how to access output point diagnostics on the 5069-OBV8S
module and the diagnostics dialog box.

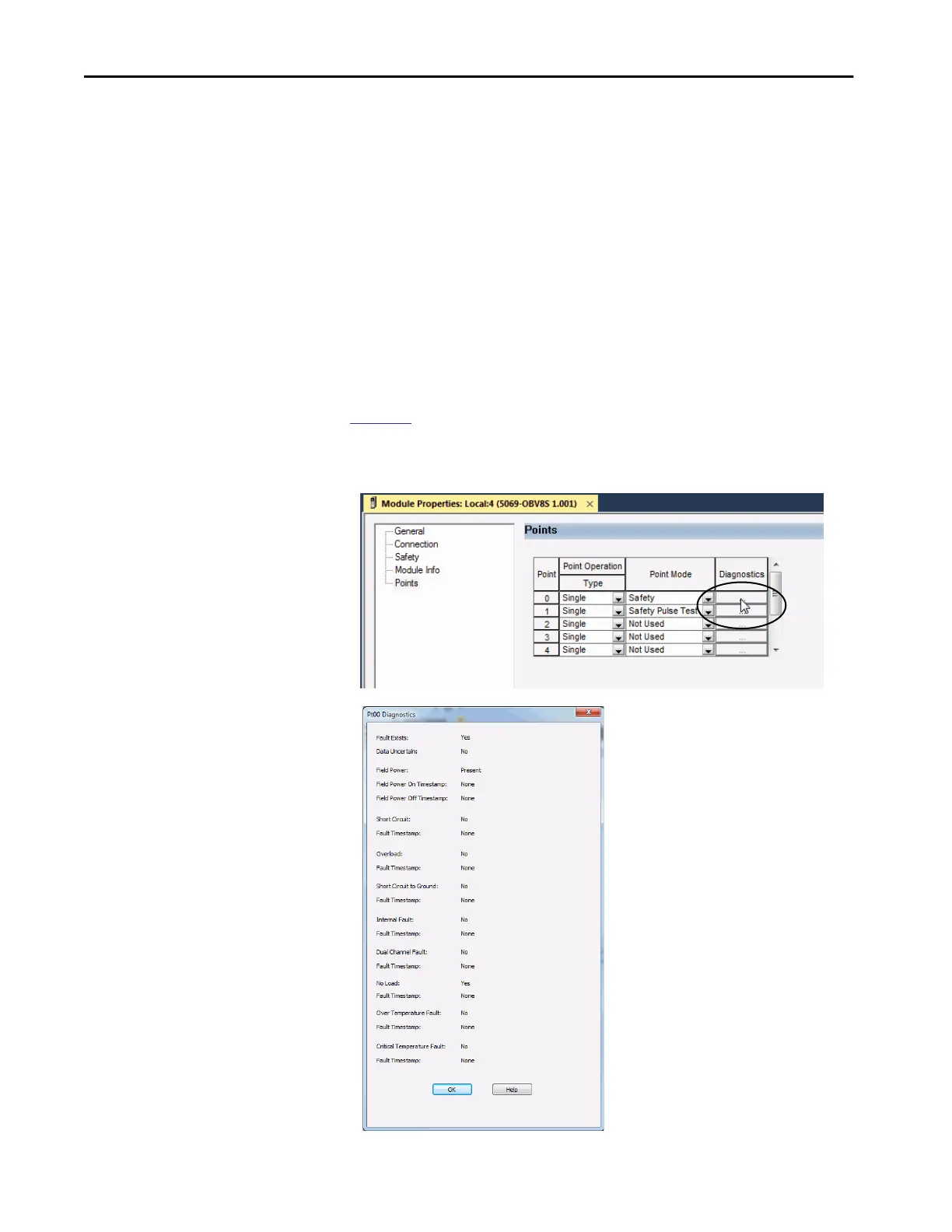

Figure 33 - Point Diagnostics
