Applications for Control

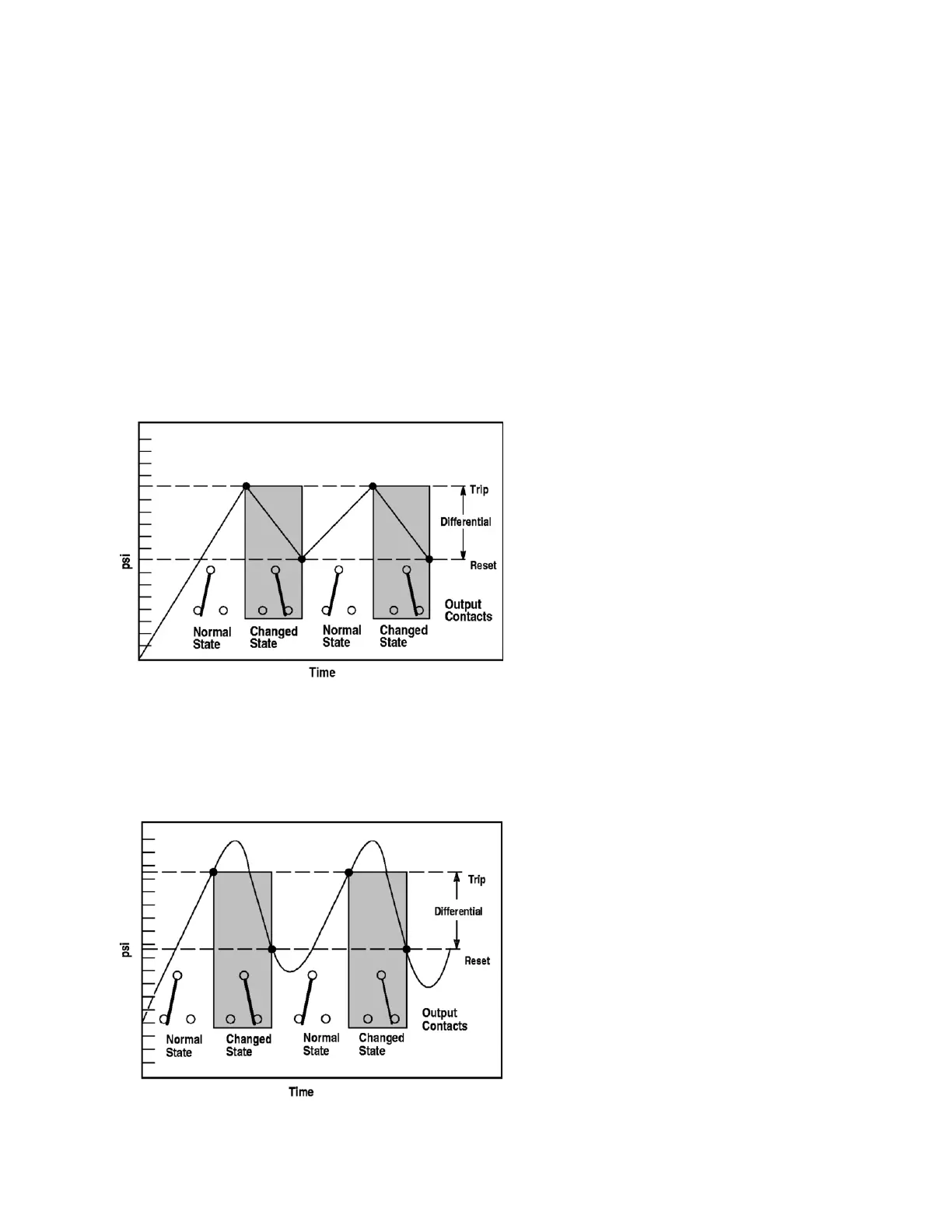

Pressure controls can be used to either control or monitor a machine or process. (Figure 3) shows a
typical control application. Here, pressure is controlled within predetermined high and low values.
(Figure 4) shows a typical monitoring application. Here, pressure is monitored between a high and low
value, signaling when a preset limit has been exceeded.
Figure 3
Typical Control Application
Figure 4
Typical Monitoring Application
