Instruction Execution Chapter 6
Instructions That Operate On Arrays
Instruction actions are limited to member array boundaries. If any of these
instructions attempt to access past the end of a member array, they set the ER
bit and abort the operation.
AVE, BSL, BSR, DDT, FBC, FFL, FFU, LFL, LFU, SQL, SRT, and STD now
respect boundaries when reading.
Mitigation
N/A
GSV/SSV Instructions
GSV and SSV instructions that access unused attributes in 5580 and 5380
controller projects display this verification warning.

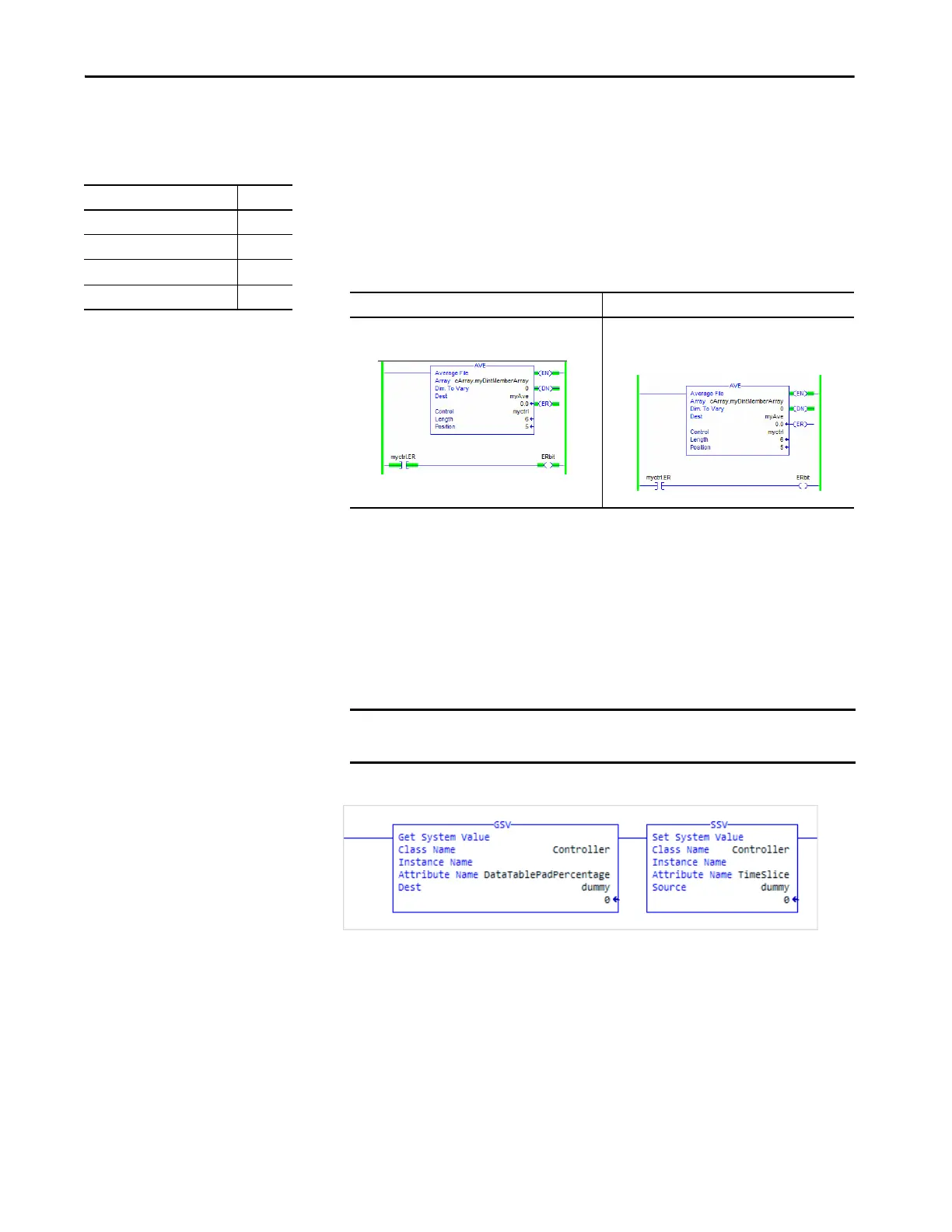

Figure 20 - GSV/SSV of Controller Attributes
The warning occurs for the following controller attributes:
•DataTablePadPercentage
. (GSV only)
• TimeSlice (GSV/SSV)
• ShareUnusedTimeSlice (GSV / SSV)
Language Affected
Ladder Logic (RLL) Yes
Structured Text (ST) No
Function Blocks (FBD) No
Sequential Function Chart (SFC) No
5580/5380 Controllers 5570/5370 Controllers
These instructions are now limited to member array
boundaries.
In previous controllers, these instructions could
overwrite member boundaries if the array was within a
UDT.
IMPORTANT Rung <n>, GSV, Operand 2: Attribute is not used for this controller type.
Instruction has no effect.
