Allen-Bradley CompactLogix 5380 - Diagnostics Web Pages

Rockwell Automation Publication 1756-RM100F-EN-P - October 2018 145
Diagnostics and Status Indicators with ControlLogix Systems Chapter 7

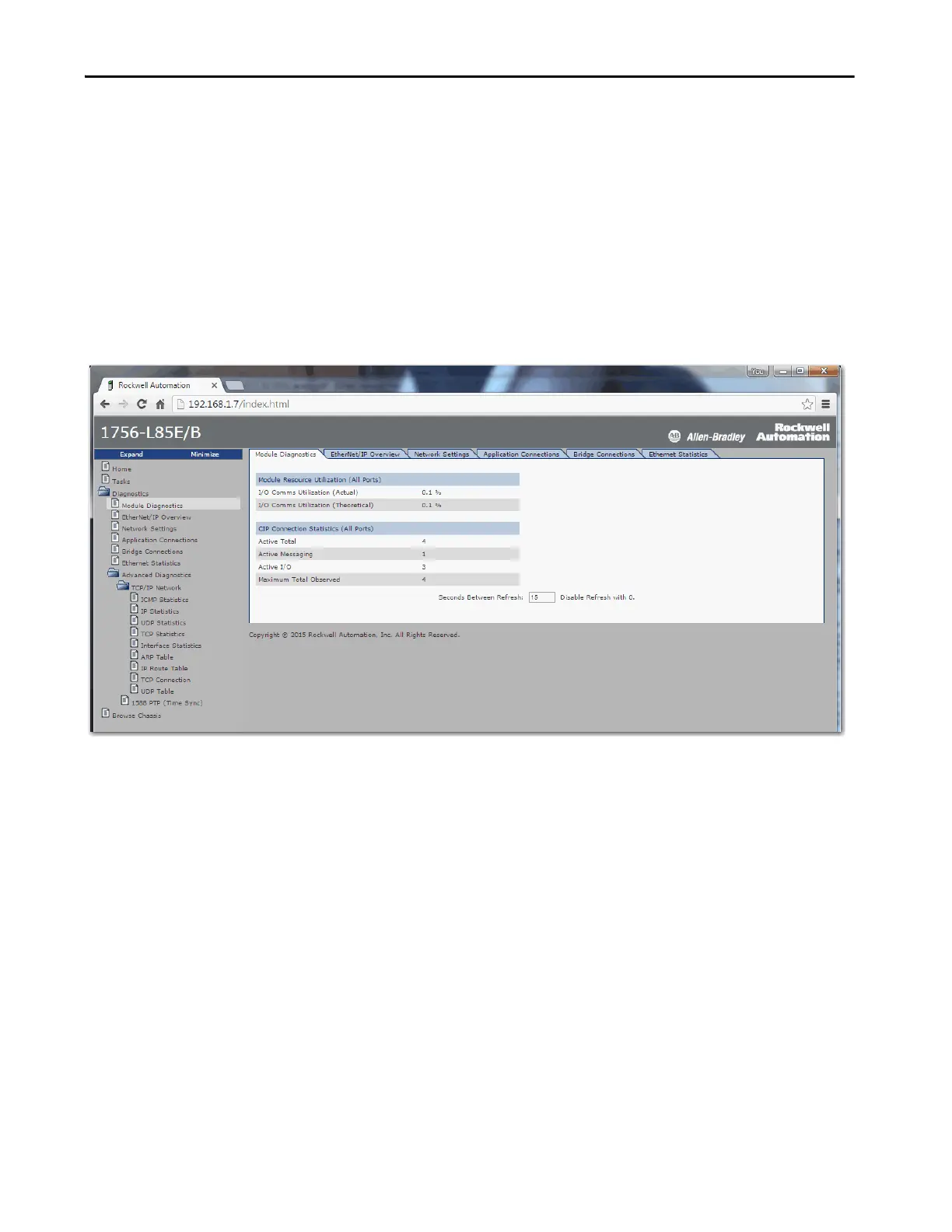

Diagnostics Web Pages
The Diagnostics web pages use a series of tabs to provide information about
the following:
•Module Diagnostics
• EtherNet/IP™ Overview
•Network Settings
• Application Connections
•Bridge Connections
•Ethernet Statistics
