Allen-Bradley CompactLogix 5380 - Advanced Diagnostics Web Pages

146 Rockwell Automation Publication 1756-RM100F-EN-P - October 2018
Chapter 7 Diagnostics and Status Indicators with ControlLogix Systems
Advanced Diagnostics Web Pages

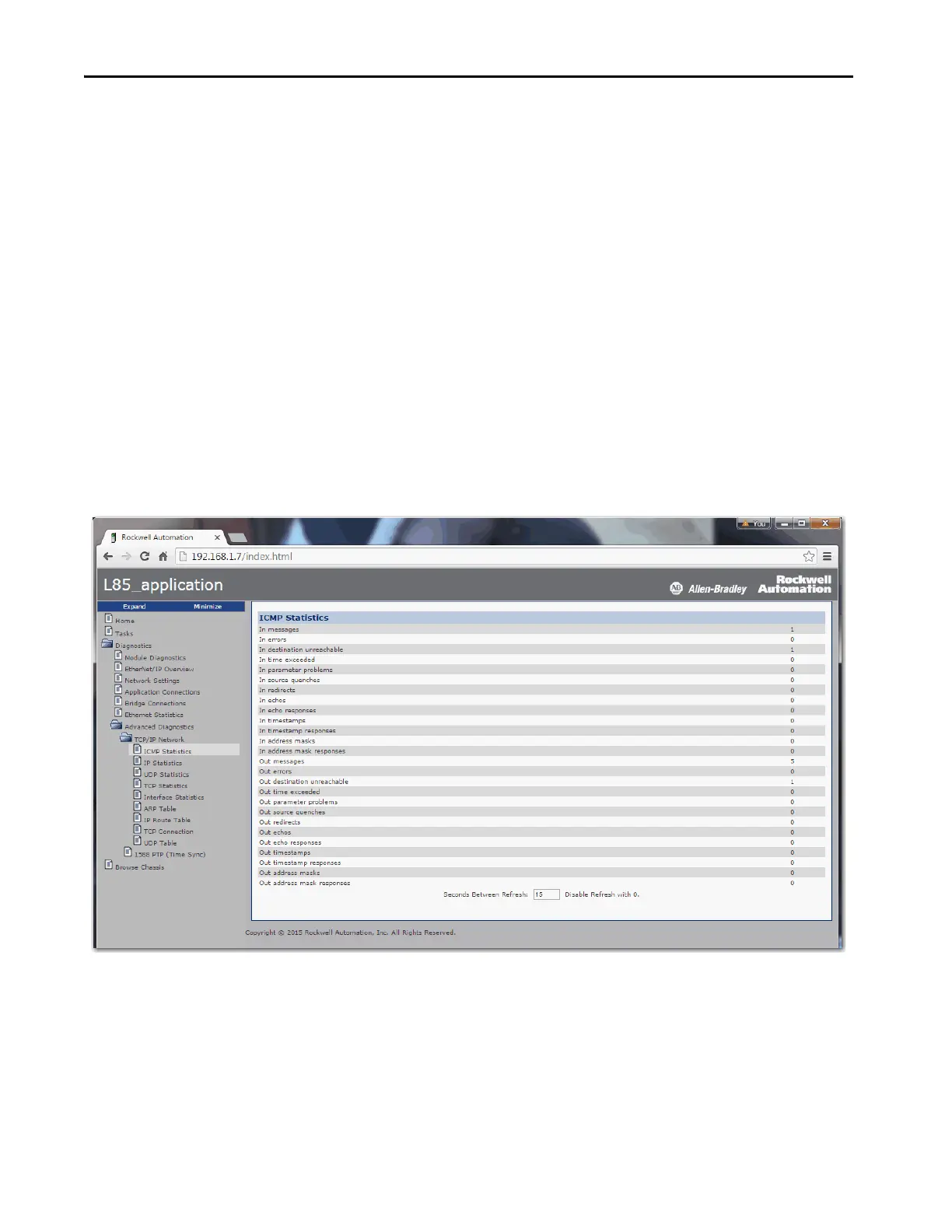

The Advanced Diagnostics web pages provide information about
the following:
• TCP/IP Network - Provide information about the following:
– ICMP Statistics
–IP Statistics
–UDP Statistics
–TCP Statistics
–Interface Statistics
–ARP Table
– IP Route Table
–TCP Connection
–UDP Table
• 1588 PTP (Time Sync)
