Rockwell Automation Publication 1756-RM100F-EN-P - October 2018 149
Chapter 8
Diagnostics and Status Indicators with
CompactLogix Systems
This chapter features these controllers, and where applicable, the controllers
are known as:
The status indicators on the 5380 controllers differ from status indicators on
the 5370 controllers. 5380 controllers provide the following:
• 4-character display that shows messages to provide information about
the controller, for example, the firmware revision
• MOD Power and SA Power status indicators

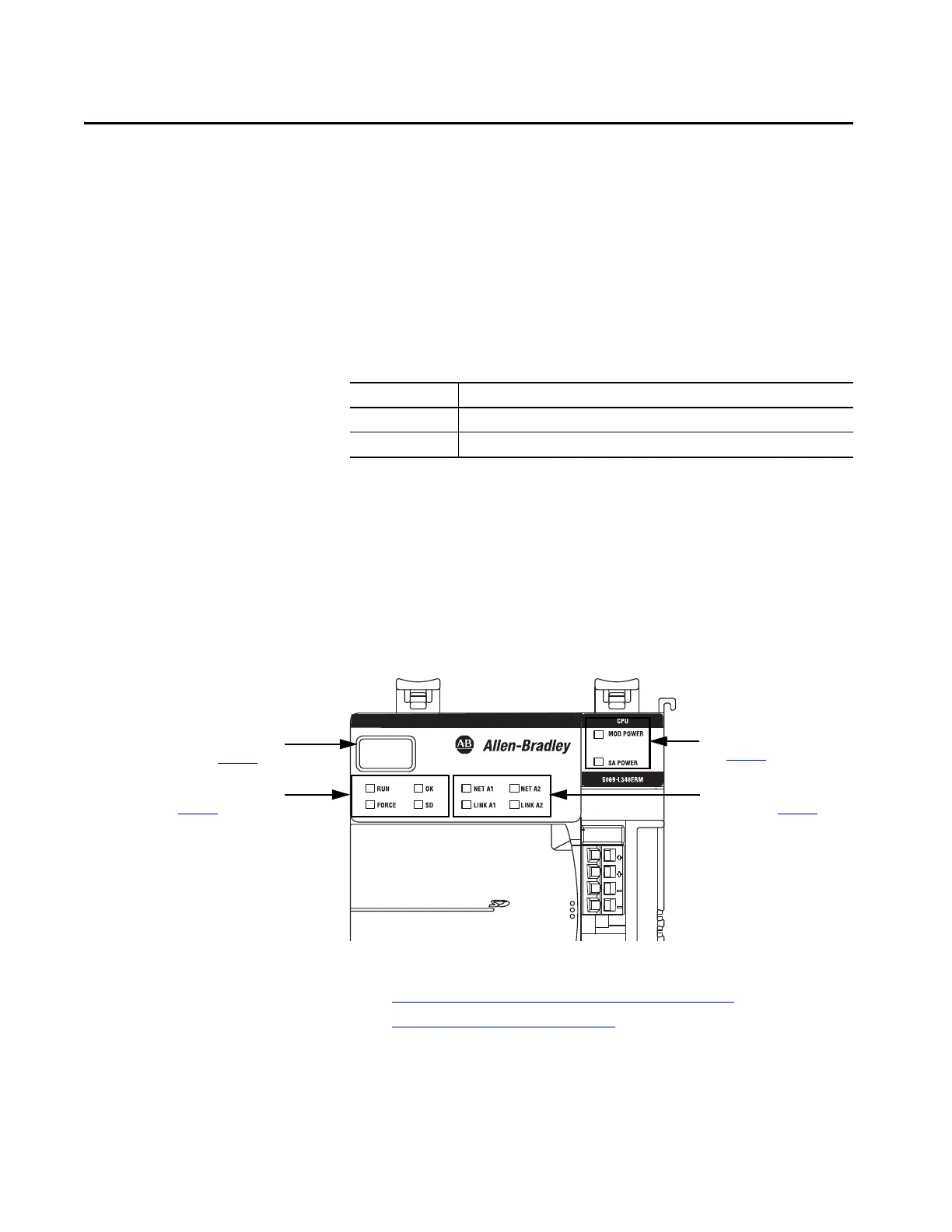

Figure 21 - Status Display and Indicators
You can diagnose and troubleshoot the 5380 Controllers with:
• Controller Status Display and Indicators on page 150
• Controller Web Pages on page 155
Controller Family Includes these controllers
5380 controllers CompactLogix™ 5380 and Compact GuardLogix® 5380 controllers
5370 controllers CompactLogix 5370 and Compact GuardLogix 5370 controllers
4-Character Scrolling Status
Display - See page 150
Controller Status Indicators -
See page 152
EtherNet/IP Status
Indicators - See page 153
Power Status Indicators -
See page 154
