Chapter 3 Replacement Considerations with CompactLogix and Compact GuardLogix Systems
Memory Tab
In the Logix Designer application, version 28 or earlier, the Memory tab
indicates data usage.
• 5370 controllers - Data usage is indicated with two values. The tab
shows I/O memory and Data and Logic memory separately.
As you change the project, you can click Estimate to see the estimated
memory usage and remaining available memory.
• 5380 controllers - Data usage is indicated with one value that combines
Data and Logic memory usage and I/O memory usage.
As you change the project, the data values are automatically updated to
indicate the estimated memory usage and remaining available memory.

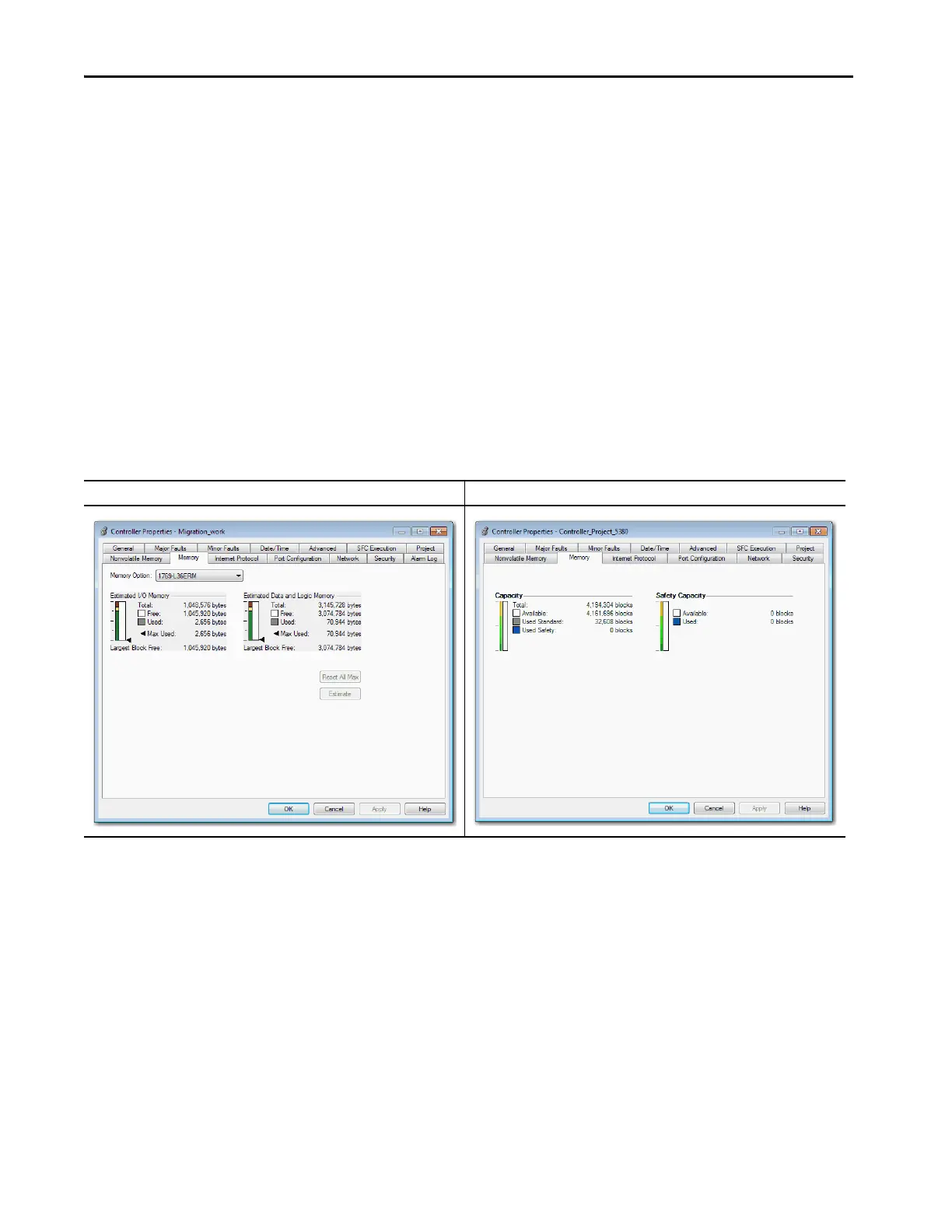

Figure 11 - Controller Properties Dialog Box - Memory Tab
CompactLogix 5370 L3 Version 28 Example CompactLogix 5380 Version 28 Example
