4 Rockwell Automation Publication 5069-IN019C-EN-P - October 2018
CompactLogix 5480 Controller
About the Controller

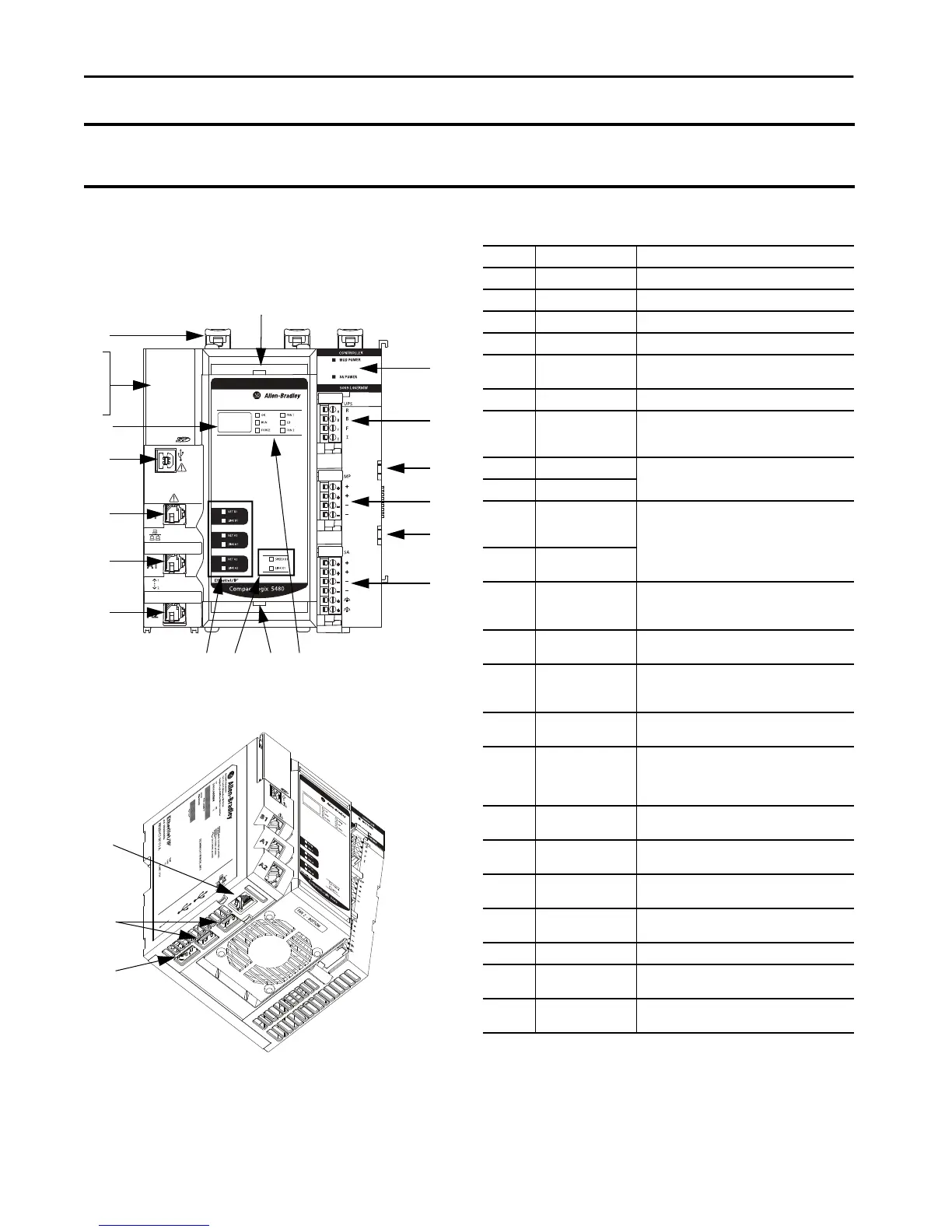

The following graphic shows a CompactLogix 5480 controller.
IMPORTANT
Any illustrations, charts, sample programs, and layout examples that are shown in this publication are intended solely for the purposes of example. Since
there are many variables and requirements that are associated with any particular installation, Rockwell Automation does not assume responsibility or
liability for actual use that is based upon the examples that are shown in this publication.
1
6
7
9
8
2
3
4
14
11
16
10
5
1312
15
18
20
17
19
Front View
Bottom View
22
21
23
CompactLogix 5480 Controller Parts
Number Item Description
1 DIN rail latches Secure adapter to DIN rail.
2 Mode switch Lets you choose the controller operating mode.
3 SD card slot Location for SD card.
4 Reset button Resets the controller to factory default condition.
5 Four-character display
Scrolls information about the controller, such as
firmware revision or project status.
6 USB programming port Provides temporary connection to download projects.
7 Ethernet port B1
Lets the controller connect to the following networks:
• Enterprise-level network
• Device-level network
8 Ethernet port A1
Lets the controller connect to device-level networks.
9 Ethernet port A2
10
Network and link status
indicators for ports B1,
A1, and A2
Show the state of the Ethernet ports and network
communication activity on each port.
11
Speed and link status
indicators for port X1
12 Bottom fan
Helps regulate controller temperature.
Controller ships with fans installed. You can replace
fans, if necessary.
13
Controller status
indicators
Show the state of the controller in multiple respects.
14 Top fan
Helps regulate controller temperature.
Controller ships with fans installed. You can replace
fans, if necessary.
15
MOD power and SA
power status indicators
Show the state of module (MOD) power and sensor
actuator (SA) power, respectively.
16 UPS Control RTB
Connector for control signals to and from an
uninterruptible power supply (UPS) that are used to
support a controlled shutdown upon incoming power
loss.
17
MOD power bus
connector
MOD power bus connection that passes MOD power to
the next local Compact 5000 I/O module in the system.
18 MOD power RTB
Connector for external power supply to provide MOD
power to the system.
19 SA power bus connector
SA power bus connection that passes SA power to the
next local Compact 5000 I/O module in the system.
20 SA power RTB
Connector for external power supply to provide SA
power to the system.‘
21 Ethernet port X1 Used with the COS on the controller.
22 USB 3.0 ports
Connectors for peripherals that are used with the COS
on the controller.
(2)
(2) Devices that are connected to the controller via a USB 3.0 port must reside in the same control enclosure as
the controller. This requirement applies to devices that are powered by the USB 3.0 ports or not. You must
connect the devices to a ground system that is common with the controller. Alternatively, you can connect
the device to the common ground system via a USB hub that provides galvanic isolation.
23
DisplayPort
connection
(1)
(1) Any DisplayPort cables or adapters that are used with this product must be certified by VESA. A list of
certified equipment and cables is on the VESA website (www.vesa.org). Use of non-certified cables and
adapters can cause damage or improper operation.
Connector to use a display with the COS on the
controller.
