Allen-Bradley ControlLogix 1756-OF6CI User Manual

ControlLogix Current Loop Output Module 13
Publication 1756-5.36 - September 1999
Check the Indicators
7KHLQGLFDWRUVVKRZ&$/VWDWXVJUHHQDQGDELFRORUHG/('IRUPRGXOH2.UHGJUHHQ
'XULQJSRZHUXSDQLQGLFDWRUWHVWLVGRQH7KH2.LQGLFDWRUWXUQVUHGIRUVHFRQGDQG
WKHQWXUQVWRIODVKLQJJUHHQLILWKDVSDV VHGWKHVHOIWHVW 
7KLVFRPSOHWHVLQVWDOODWLRQRIWKHPRGXOH8VHWKHIROORZLQJLQIRUPDWLRQWRUHPRYHWKH57%
DQGPRGXOH

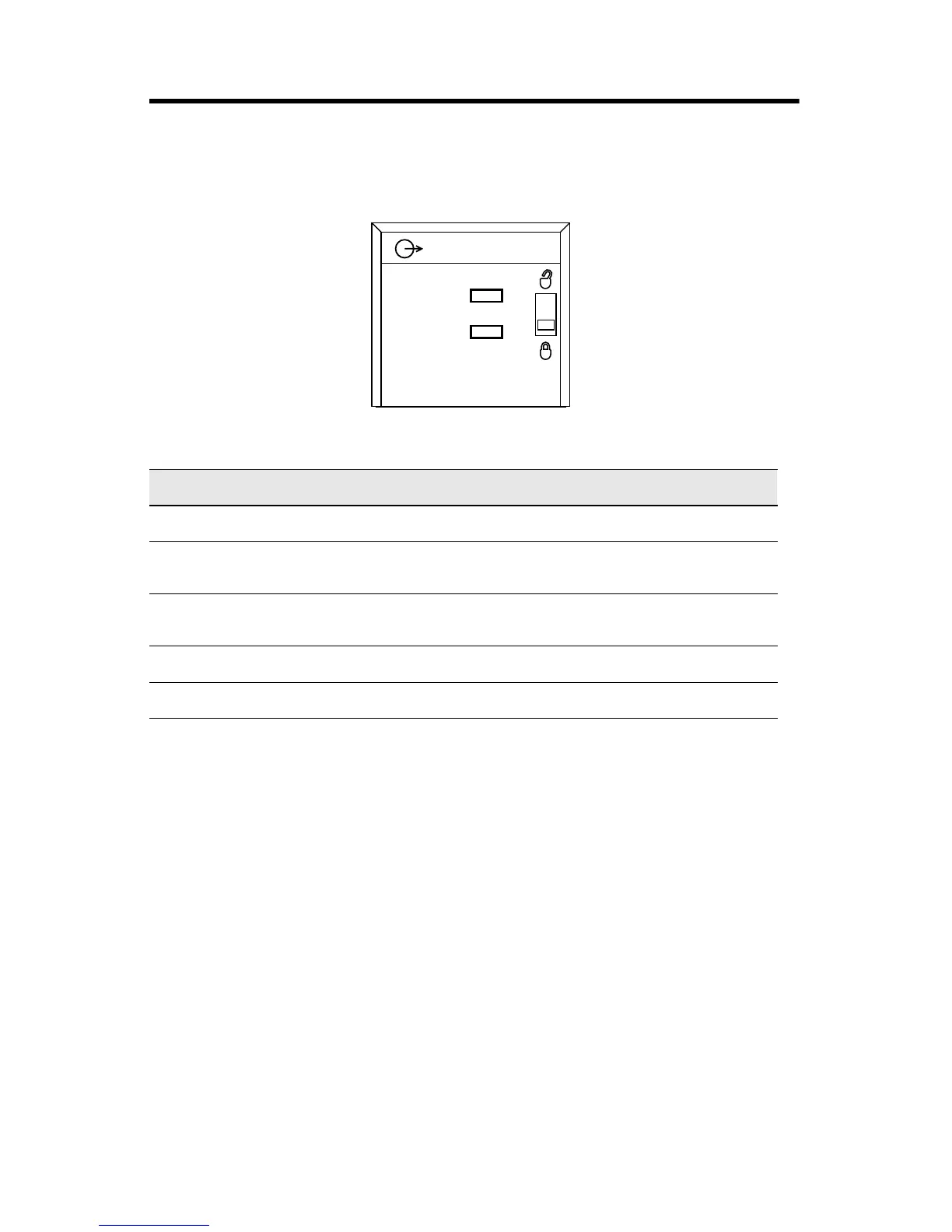

LED
indicators:
This display: Means: Take this action:
OK Steady green light The outputs are in a normal
operating state.
None
OK Flashing green light The module has passed
internal diagnostics but is not
actively controlled.
None
OK Flashing red light Previously established
communication has timed
out.
Check controller and chassis
communication
OK Steady red light The module must be
replaced.
Replace the module.
CAL Flashing green light The module is in calibration
mode.
None
20965-M
ANALOG OUTPUT
CAL
OK
