System Operation and Configuration Chapter 2
Configure Accessory
Modules
This section describes how to configure the accessory modules for the Advanced
version (193/592-1EF) of the E100 relay. You must correctly install the
accessories before you configure them. See page 5
for a list of related installation
instructions.
Cat. No. 193-1EGJ Universal Protection Expansion Module
The Cat. No. 193-1EGJ E100 Universal Protection expansion module adds
Ground fault and Jam protection to the Advanced version (193/592-1EF) of the
E100 relay. The add-on module lets you select the jam current level, jam trip
delay, and ground fault level.

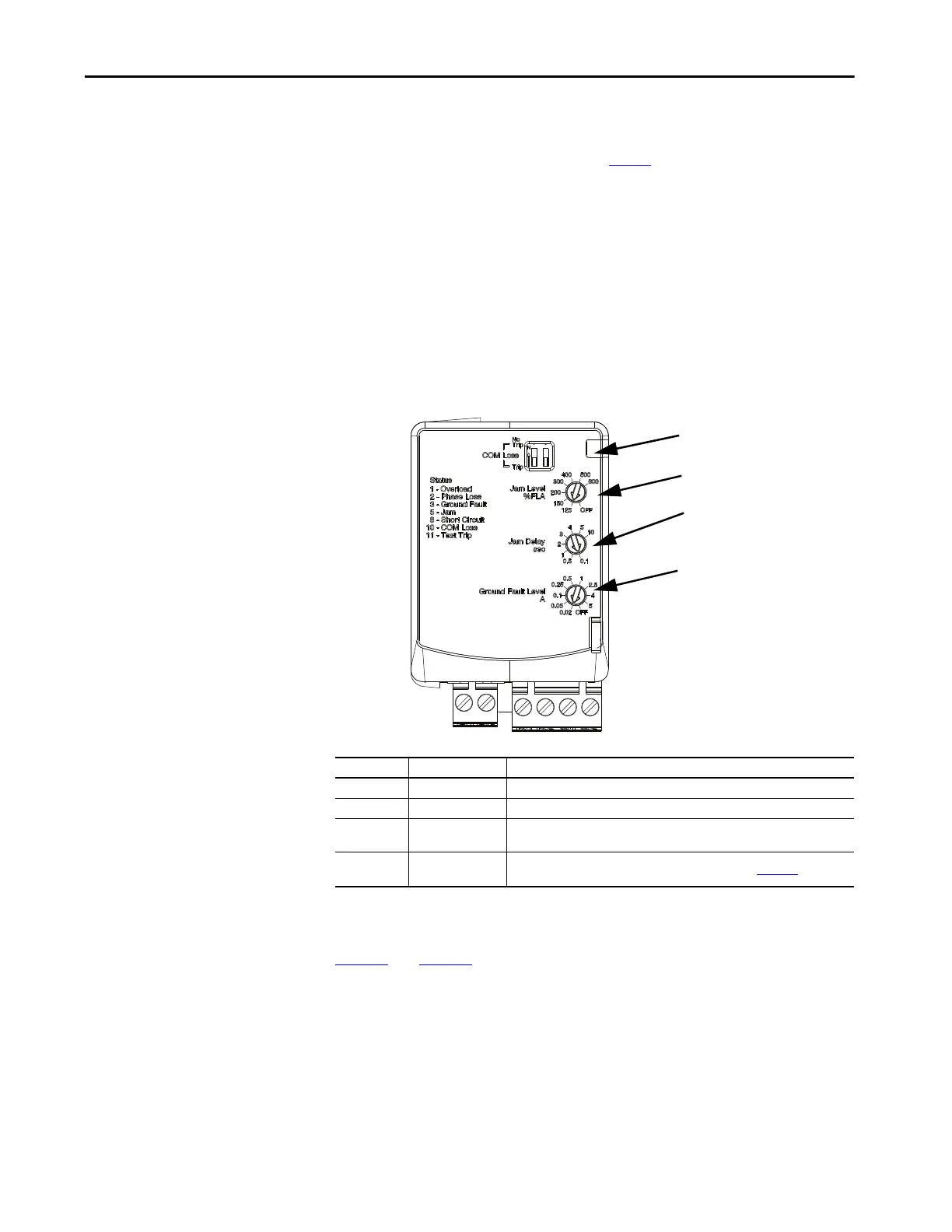

Figure 2 - Cat. No. 193-1EGJ Universal Protection Expansion Module Settings
Wiring
Figure 3 and Figure 5 show the basic wiring for the 193-1EGJ Module.
Note Number Feature Information
1 Jam Level Selection Set the FLA percentage for Jam Protection. Selectable from 125…600% FLA.
2 Jam Delay Selection Set the time delay for a Jam Trip to occur. Customizable from 0.1…10 seconds.
3
Ground Fault Level
Selection
Set the current level for a Ground Fault Trip to occur. Customizable from
0.02…5 A.
4
Accessory Diagnostic
LED
For more information about the diagnostic LED codes, see Chapter 3
.
Jam Level
(1)
Jam Delay
(2)
Ground Fault Level
(3)
Accessory Diagnostic LED
(4)
