(10) DIR 1000587R0002 (Version 02)

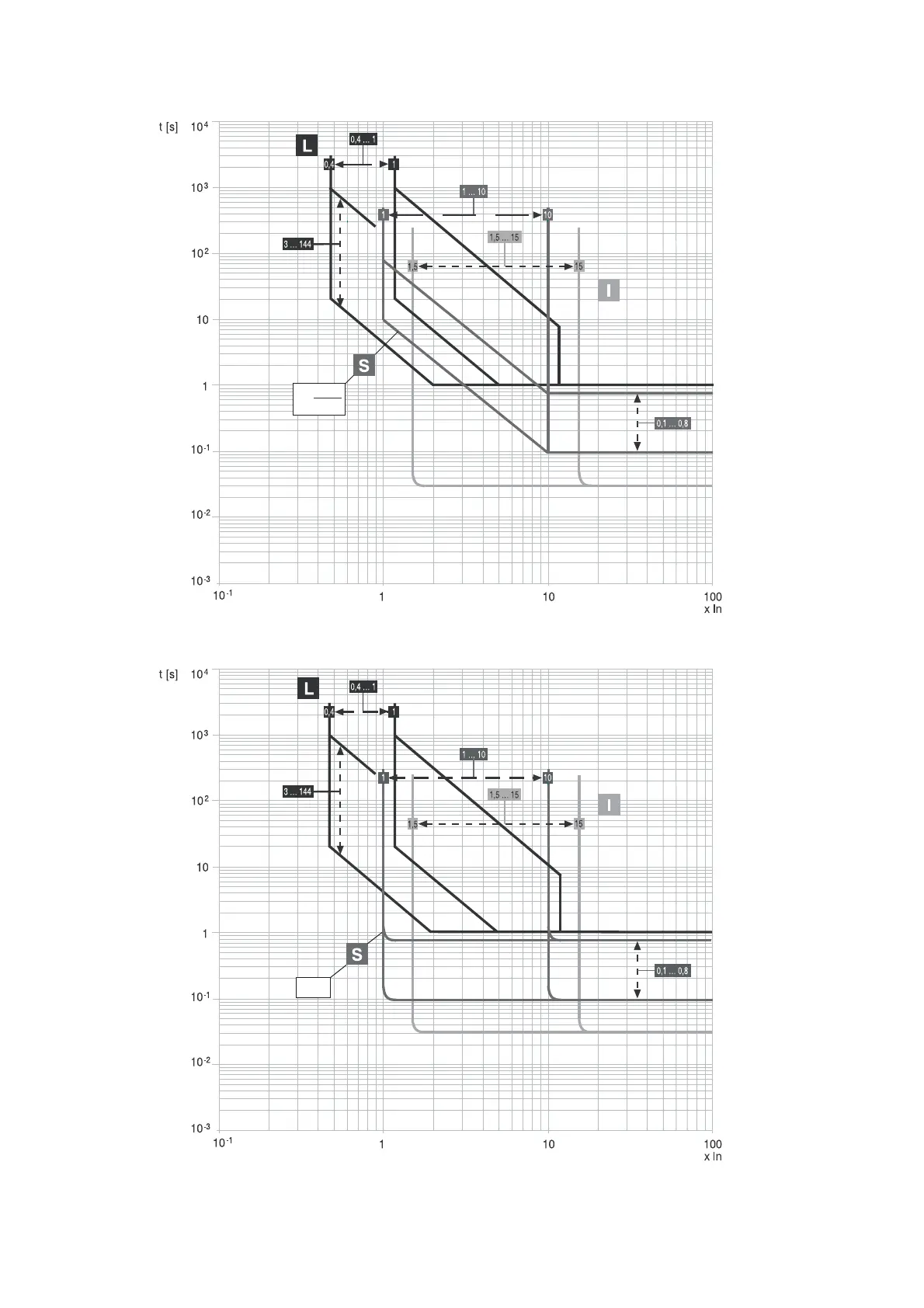

2.4.8. Trip curves
The trip curves provided are merely for guidance and only show a sub-group of the possible selections.
2.4.8.1. Trip curves for functions L-S(t =k/I
2
)-I
t =
k
I
2
2.4.8.2. Trip curves for functions L-S(t=k)-I
t = k
