Allen-Bradley Micro820 User Manual

Rockwell Automation Publication 2080-UM005B-EN-E - March 2015 153
Quickstarts Appendix C
Edit the Project Using Run Mode Change

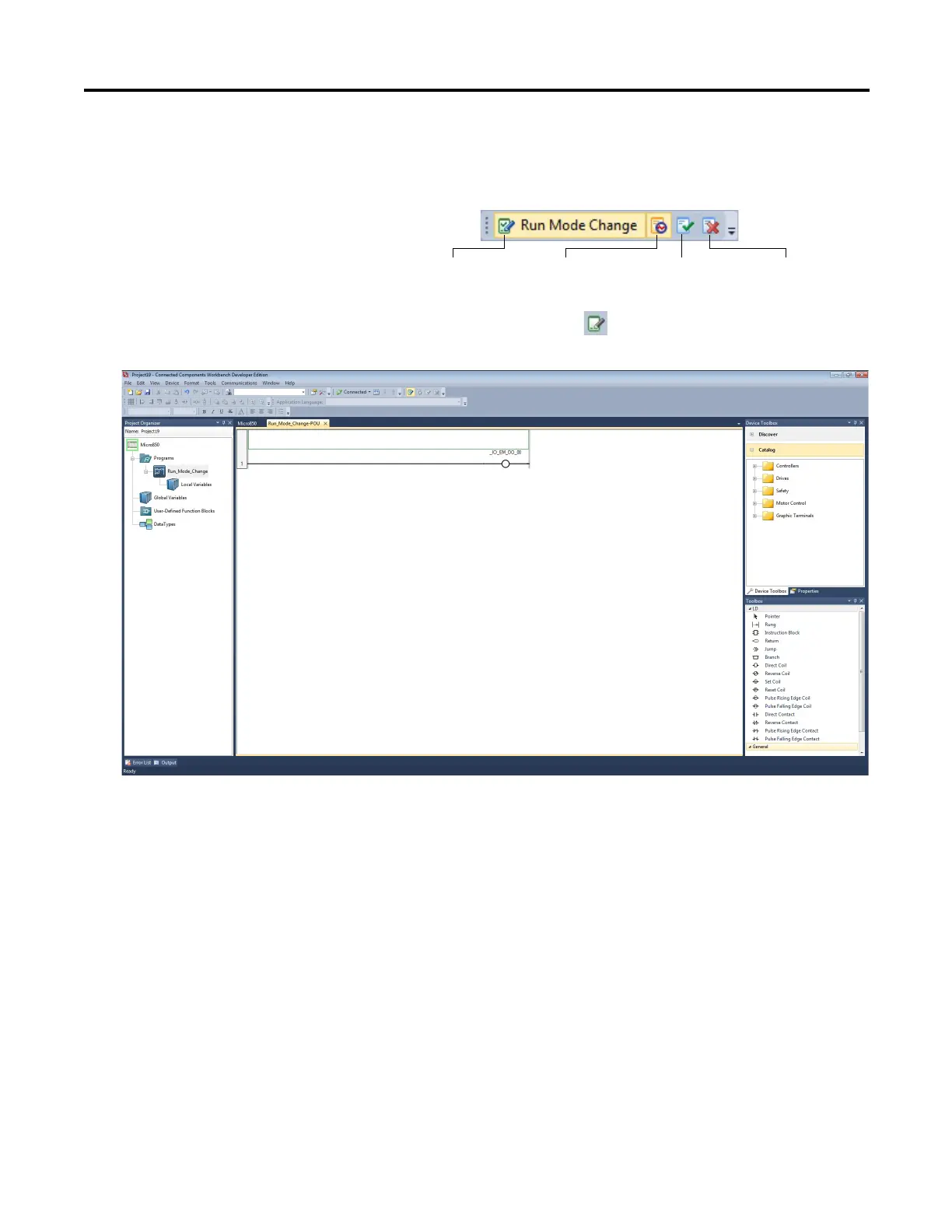

Run Mode Change Toolbar
1. Click the Run Mode Change icon.
Observe that the controller goes into Edit mode and is still connected.
If you add a new variable during RMC, external data access and changing
the access type (default is Read/Write) of this new variable is not available
until you have chosen to Accept or Undo the Test Logic changes.
2. From the Toolbox, double-click Instruction Block to add it to the rung, or
drag and drop Instruction Block onto the rung.
Run Mode Change Test Logic Changes Undo ChangesAccept Changes

Allen-Bradley Micro820 Specifications

General

Processor	32-bit
Power Supply	24V DC
Programming Software	Connected Components Workbench
Series	Micro800
Mounting	DIN Rail
Memory	Embedded
Expansion	Yes
Controller Type	Programmable Logic Controller (PLC)
Communication	Ethernet/IP
Programming Language	Ladder Diagram, Function Block Diagram, Structured Text
I/O	Embedded
