Allen-Bradley Micro820 User Manual

54 Rockwell Automation Publication 2080-UM005B-EN-E - March 2015
Chapter 5 Communication Connections
Configure CIP Serial Driver

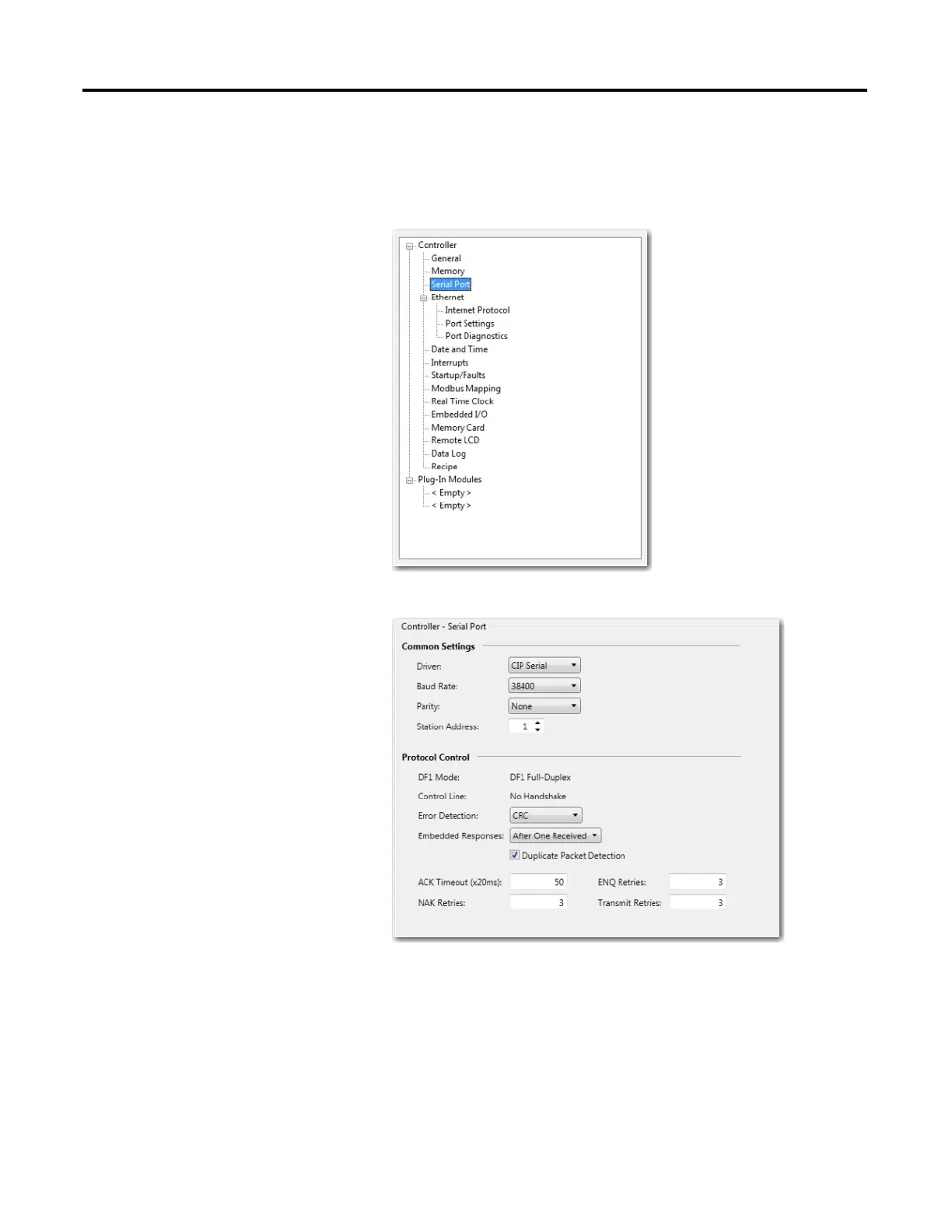

1. Open your Connected Components Workbench project. On the device
configuration tree, go to the Controller properties. Click Serial Port.
2. Select CIP Serial from the Driver field.
3. Specify a baud rate. Select a communication rate that all devices in your
system support. Configure all devices in the system for the same
communication rate. Default baud rate is set @ 38400 bps.
4. In most cases, parity and station address should be left at default settings.

Allen-Bradley Micro820 Specifications

General

Processor	32-bit
Power Supply	24V DC
Programming Software	Connected Components Workbench
Series	Micro800
Mounting	DIN Rail
Memory	Embedded
Expansion	Yes
Controller Type	Programmable Logic Controller (PLC)
Communication	Ethernet/IP
Programming Language	Ladder Diagram, Function Block Diagram, Structured Text
I/O	Embedded
