Preface
MicroLogix 1000 Programmable Controllers User Manual
3–10

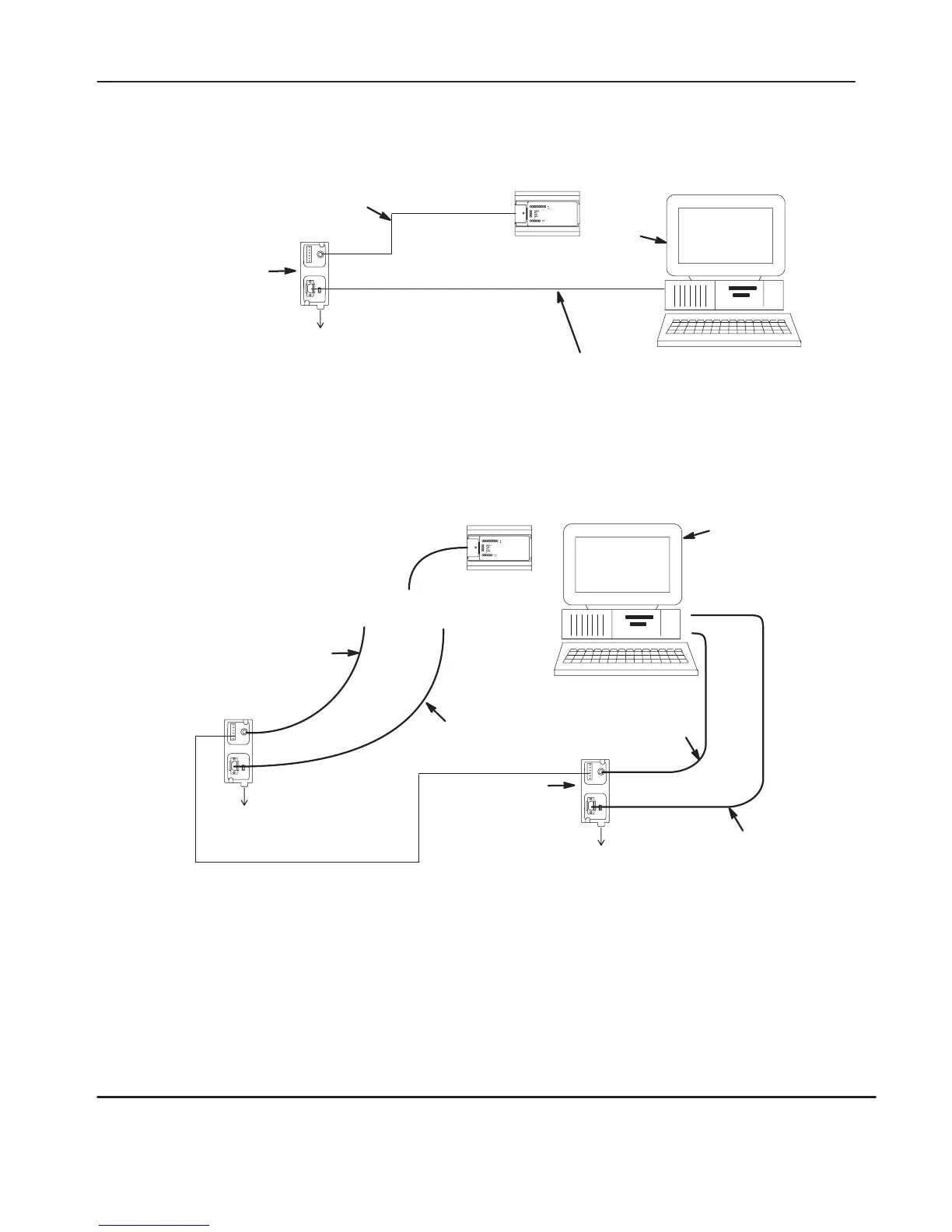

DF1 Isolated Point-to-Point Connection
24V
dc
(Not needed in this
configuration since the
MicroLogix 1000 provides
power to the AIC+ via port 2.)
1747-CP3 or 1761-CBL-AC00
MicroLogix 1000
PC
1761-CBL-AM00
or
1761-CBL-HM02
Selection Switch Up
AIC+
(1761-NET-AIC)
DH-485 Network Connection
MicroLogix
DH-485 Network
PC
connection
from
port 1 or port 2
to MicroLogix
1761-CBL-AM00
or
1761-CBL-
HM02
AIC+
(1761-NET-AIC)
24V dc
(user supply needed if not connected
to a MicroLogix 1000 controller)
24V dc
(user supplied)
1761-CBL-AP00
or
1761-CBL-PM02
APS
1747-CP3
or
1761-CBL-AC00
PC
to port 1
or port 2
1761-CBL-AP00
or
1761-CBL-PM02
MicroLogix
1000 (Series C or later discrete and all analog)
AIC+
(1761-NET-AIC)
DB-9
RS-232 port
mini-DIN 8 RS-232 port
DH-485 port
