Allen-Bradley PanelView 800 User Manual

PanelView 800 HMI Terminals 7
Publication 2711R-IN001A-EN-P - January 2015

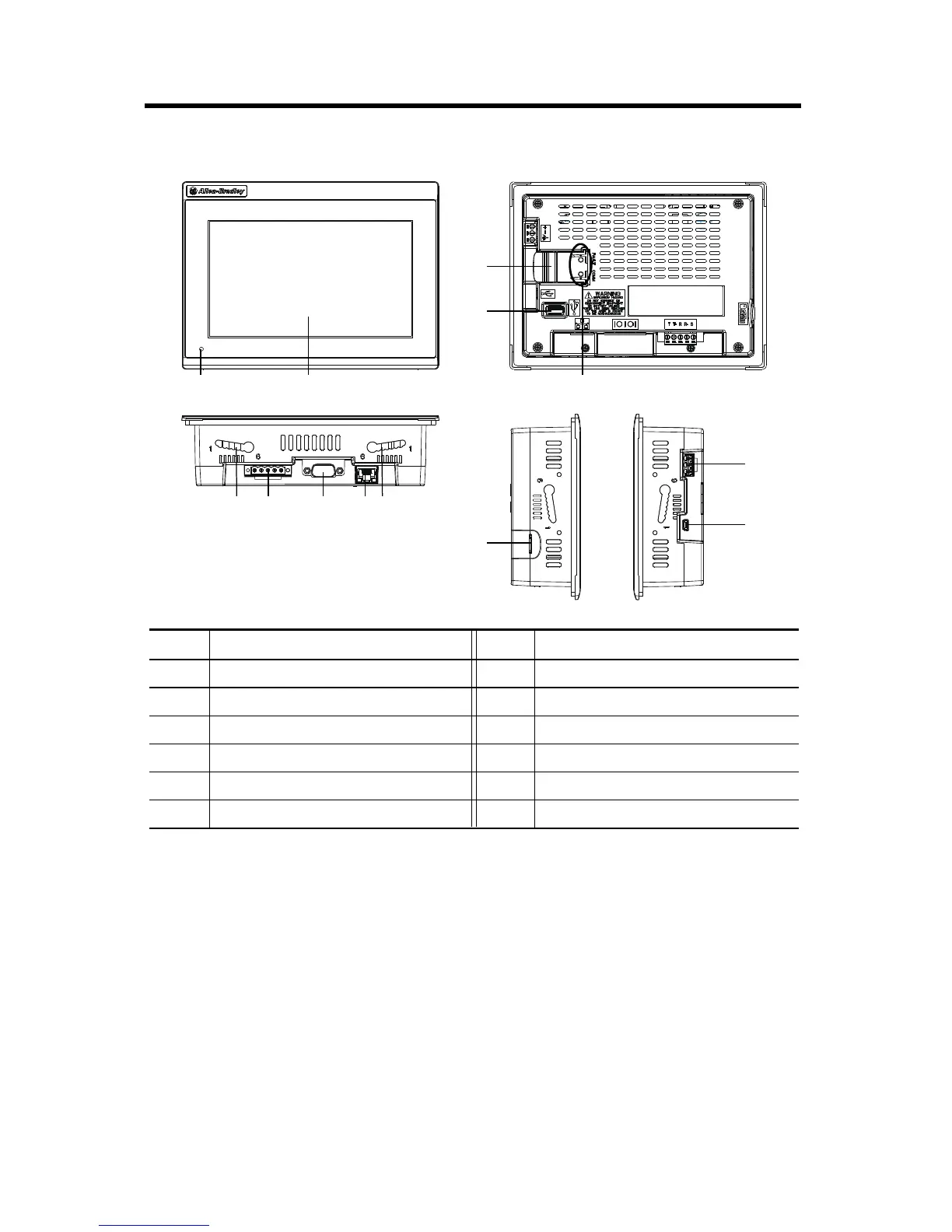

PanelView 800 Terminal – 2711R-T7T
Item Description Item Description
1 Power status LED
(1)
(1)
The Power Status LED is red when in screen saver or dimmer mode and green when in normal (operational) mode.
7 Replaceable real-time clock battery
2 Touch display 8 USB host port
3 Mounting slots 9 Diagnostic status indicator
4 RS-422 and RS-485 port 10 Micro-SD (Secure Digital) card slot
5 RS-232 port 11 24V DC power input
6 10/100 Mbit Ethernet port 12 USB device port
(2)
(2)
The USB device port is not intended for Customer use.
21
4 5 63 3
7
8
12
9
11
10

Allen-Bradley PanelView 800 Specifications

General

Brand	Allen-Bradley
Model	PanelView 800
Category	Touch terminals
Language	English
