POINT I/O 2 and 4 Relay Output Modules 13
Publication 1734-IN055H-EN-E - August 2016

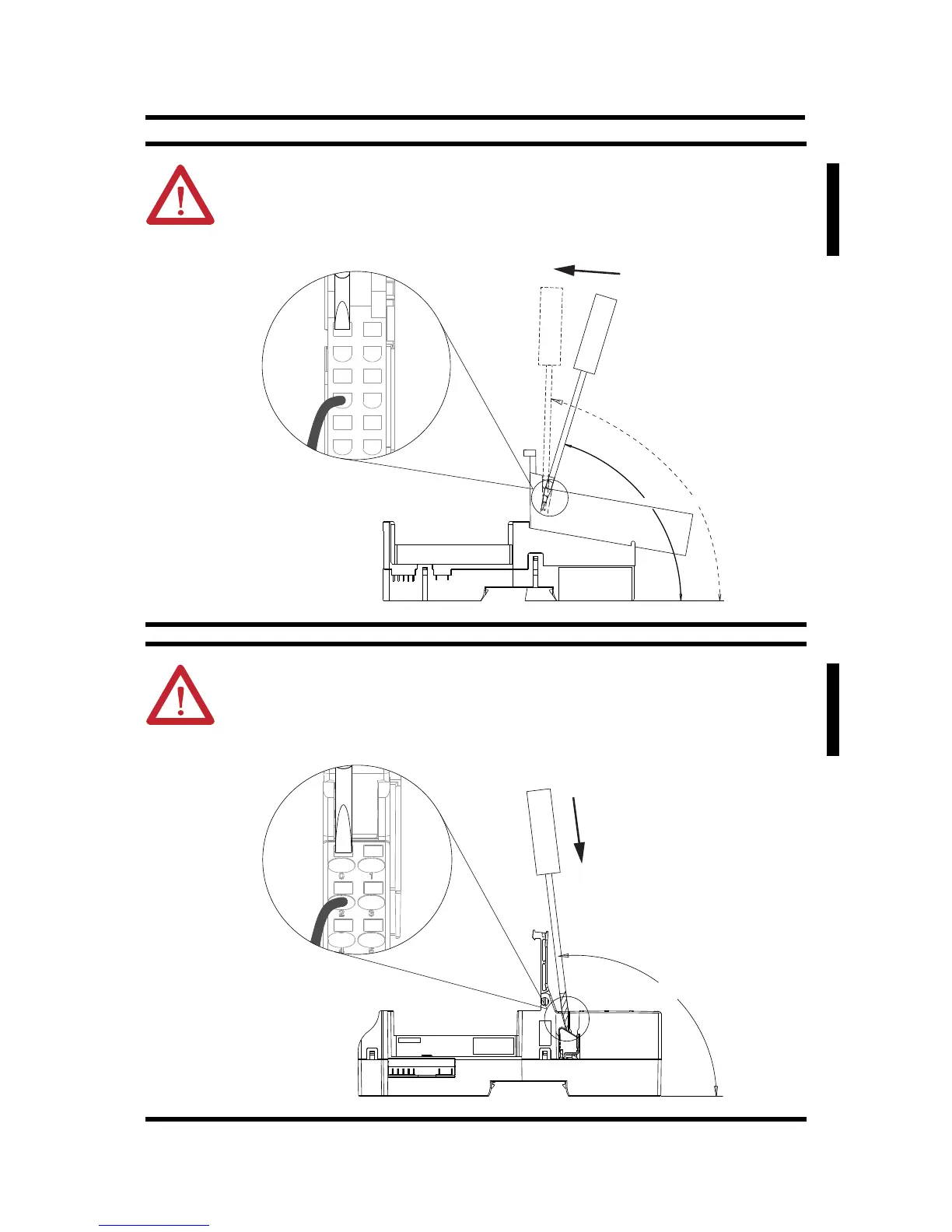

WARNING: For 1734-RTBS and 1734-RTB3S, to latch and un-latch the wire,
insert a bladed screwdriver (catalog number 1492-N90 – 3 mm diameter blade)
into the opening at approximately 73° (blade surface is parallel with top surface
of the opening) and push up gently.
WARNING: For 1734-TOPS and 1734-TOP3S, to latch and un-latch the wire,
insert a bladed screwdriver (catalog number 1492-N90 – 3 mm diameter) into
the opening at approximately 97° (blade surface is parallel with top surface of
the opening) and press in (do not push up or down).
