Allen-Bradley POINT I/O series User Manual

12 POINT I/O 2 and 4 Relay Output Modules
Publication 1734-IN055H-EN-E - August 2016
Install the Removable Terminal Block
A Removable Terminal Block (RTB) is supplied with your wiring base assembly. To
remove, pull up on the RTB handle. This allows the mounting base to be removed and
replaced as necessary without removing any of the wiring. To reinsert the Removable
Terminal Block, proceed as follows:
1. Insert the end opposite the handle into the base unit. This end has a curved
section that engages with the wiring base.
2. Rotate the terminal block into the wiring base until it locks itself in place.
3. If an I/O module is installed, snap the RTB handle into place on the module.
WARNING: When you connect or disconnect the Removable Terminal Block
(RTB) with field side power applied, an electrical arc can occur. This could cause
an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
24VDC
Source
Output
Module
Status
Network
Status
1734
OB4E
NODE:
0
1
2
3
44011

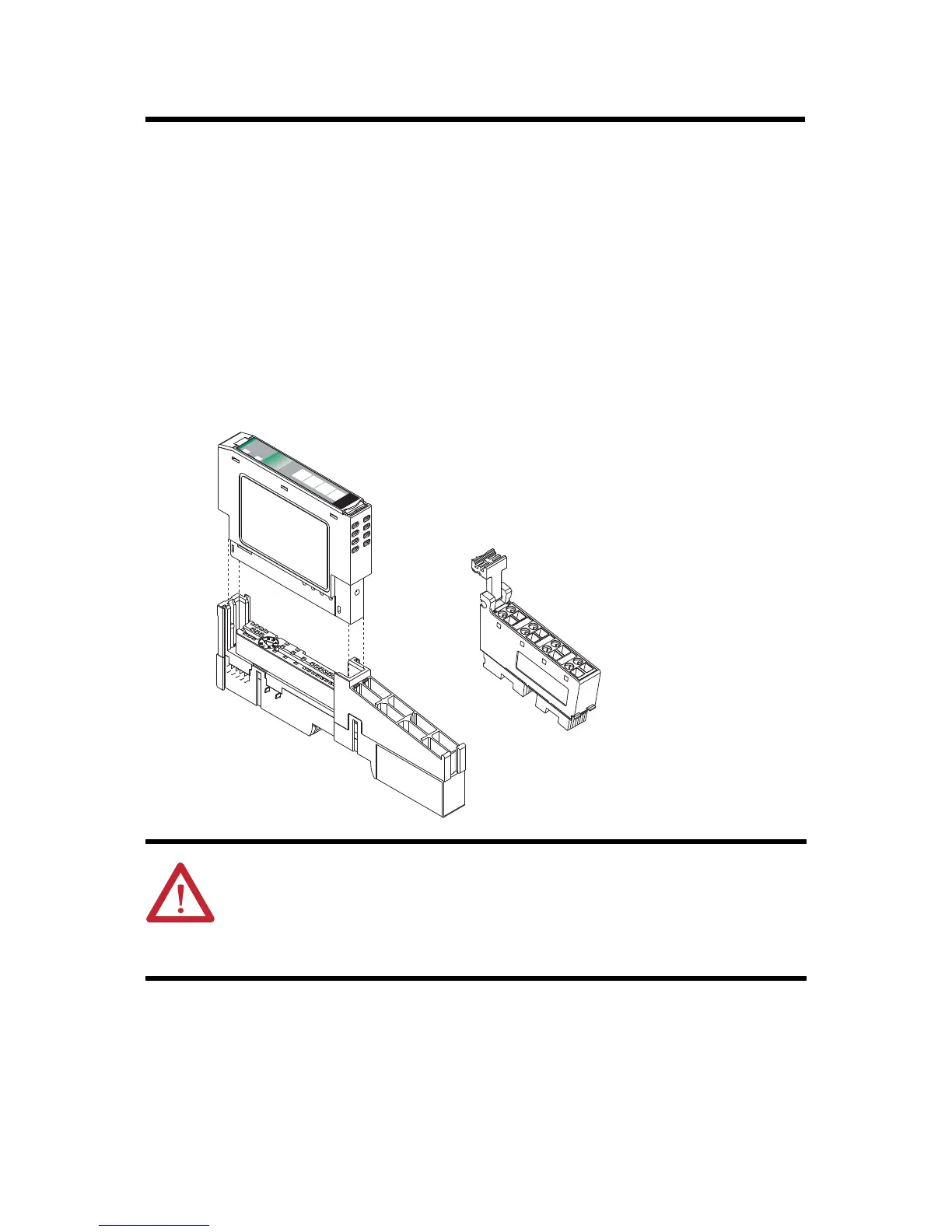

Insert the module
straight down into
the mounting base
Hook the RTB end into
the mounting base end
and rotate until it locks
into place
