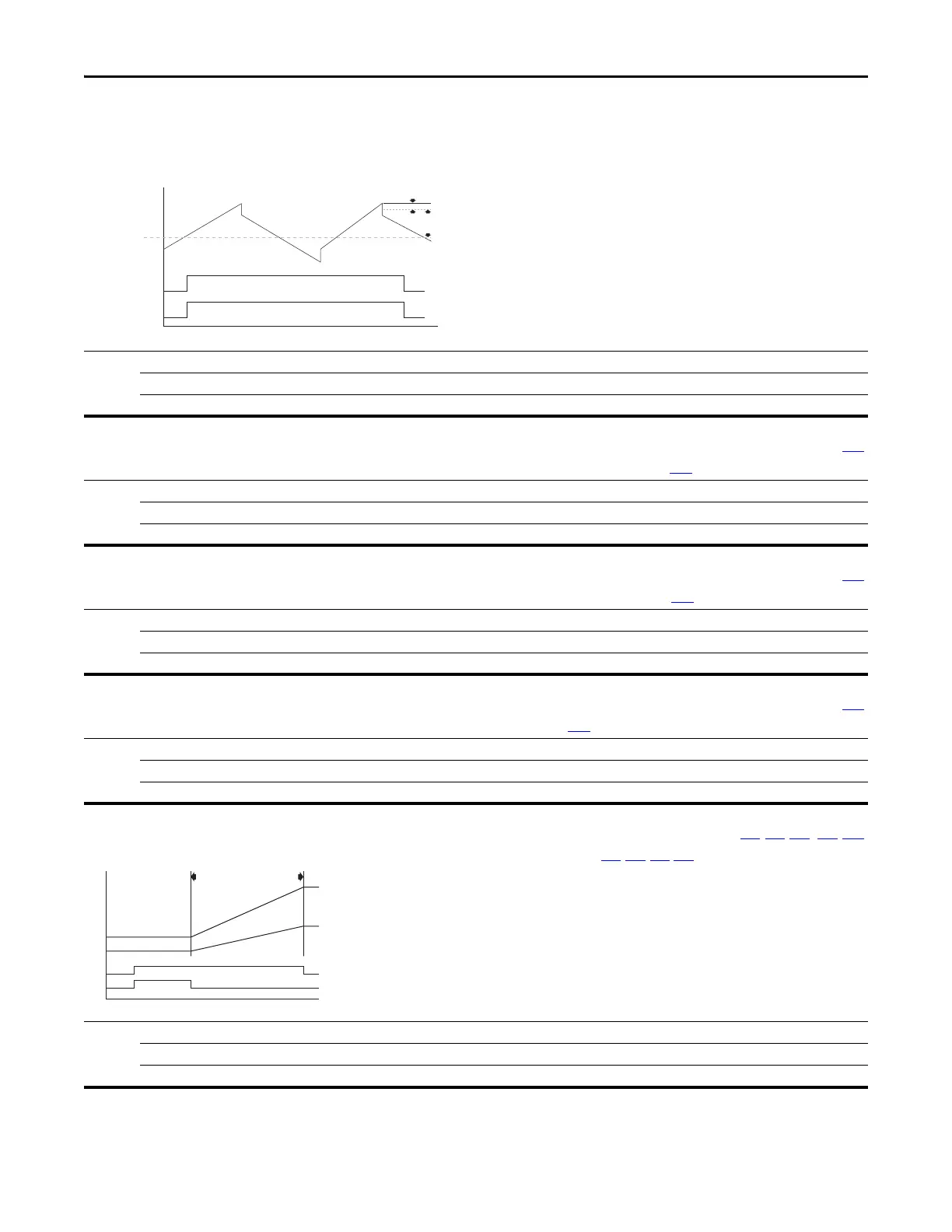

A567 [Max Traverse]
Sets the amplitude of triangle wave speed modulation.
Values Default: 0.00 Hz
Min/Max: 0.00/300.00 Hz
Display: 0.01 Hz
Hertz
Seconds
[Max Traverse]
[P Jump]
[Output Freq]
[Fiber Status]
Traverse Enable Bit
Traverse Bit
A568 [Traverse Inc] Related Parameter(s): A567
Sets the time required for the Traverse function to accelerate from the minimum to the maximum traverse frequency. See the diagram at A567 [Max Traverse].
Values Default: 0.00 s
Min/Max: 0.00/300.00 s
Display: 0.01 s
A569 [Traverse Dec] Related Parameter(s): A567
Sets the time required for the Traverse function to decelerate from the maximum to the minimum traverse frequency. See the diagram at A567 [Max Traverse].
Values Default: 0.00 s
Min/Max: 0.00/300.00 s
Display: 0.01 s
A570 [P Jump] Related Parameter(s): A567
Sets the frequency amplitude that is added to or subtracted from the commanded frequency. See the diagram at A567 [Max Traverse].
Values Default: 0.00 Hz
Min/Max: 0.00/300.00 Hz
Display: 0.01 Hz
A571 [Sync Time] Related Parameter(s): t062, t063, t065 - t068, A560
Enables the function that holds the drive at the current frequency even if the commanded frequency changes. Used with t062, t063, t065-t068 [DigIn TermBlk xx] 32 “Sync Enable”.
Values Default: 0.0 s
Min/Max: 0.0/3200.0 s
Display: 0.1 s
Hertz
Time
Speed Sync Bit
Change Ref's
[Sync Time]
Drive #1 and #2 Sync Enable Input
[Fiber Status]
New Drive #1 Reference
New Drive #2 Reference
To Next Page
