Rockwell Automation Publication 520-UM001G-EN-E - September 2014 177
Accessories and Dimensions Appendix B

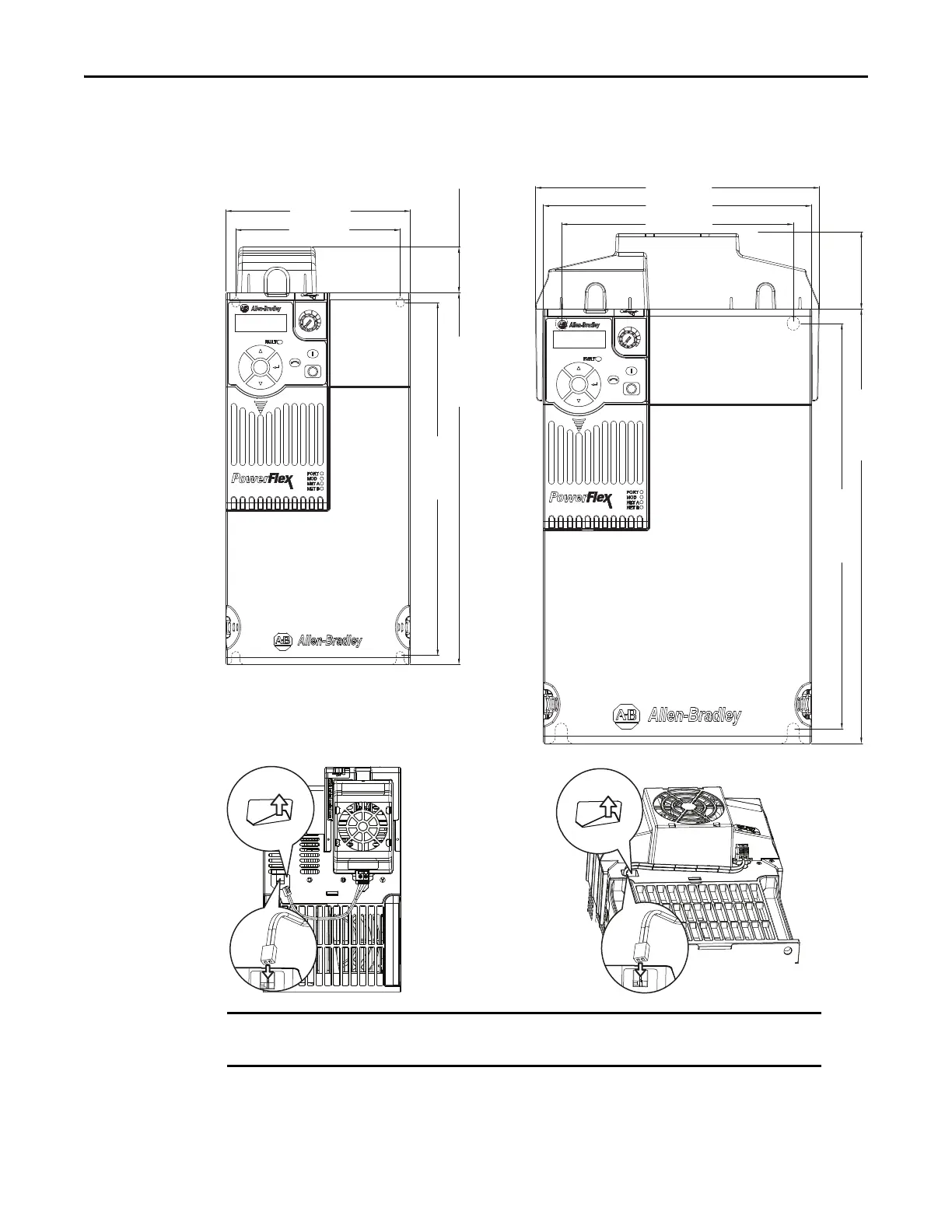

IP 20/Open Type with Control Module Fan Kit – Frame D...E
Esc
Sel
130.0 (5.12)
32.0 (1.26)
260.0 (10.24)
247.0 (9.72)
116.0 (4.57)
Esc
Sel
185.0 (7.28)
196.0 (7.72)
52.0 (2.05)
300.0 (11.81)
280.0 (11.02)
160.0 (6.30)
Dimensions are in millimeters and (inches)
Frame D Frame E
Remove the label to access the built-in 24V supply on drive frames D and E for use with the
Control Module Fan Kit.
