Allen-Bradley PowerFlex 525 User Manual

Rockwell Automation Publication 520-UM001G-EN-E - September 2014 27
Installation/Wiring Chapter 1
Power and Control Module
PowerFlex 520-series drives consist of a Power Module and Control Module.

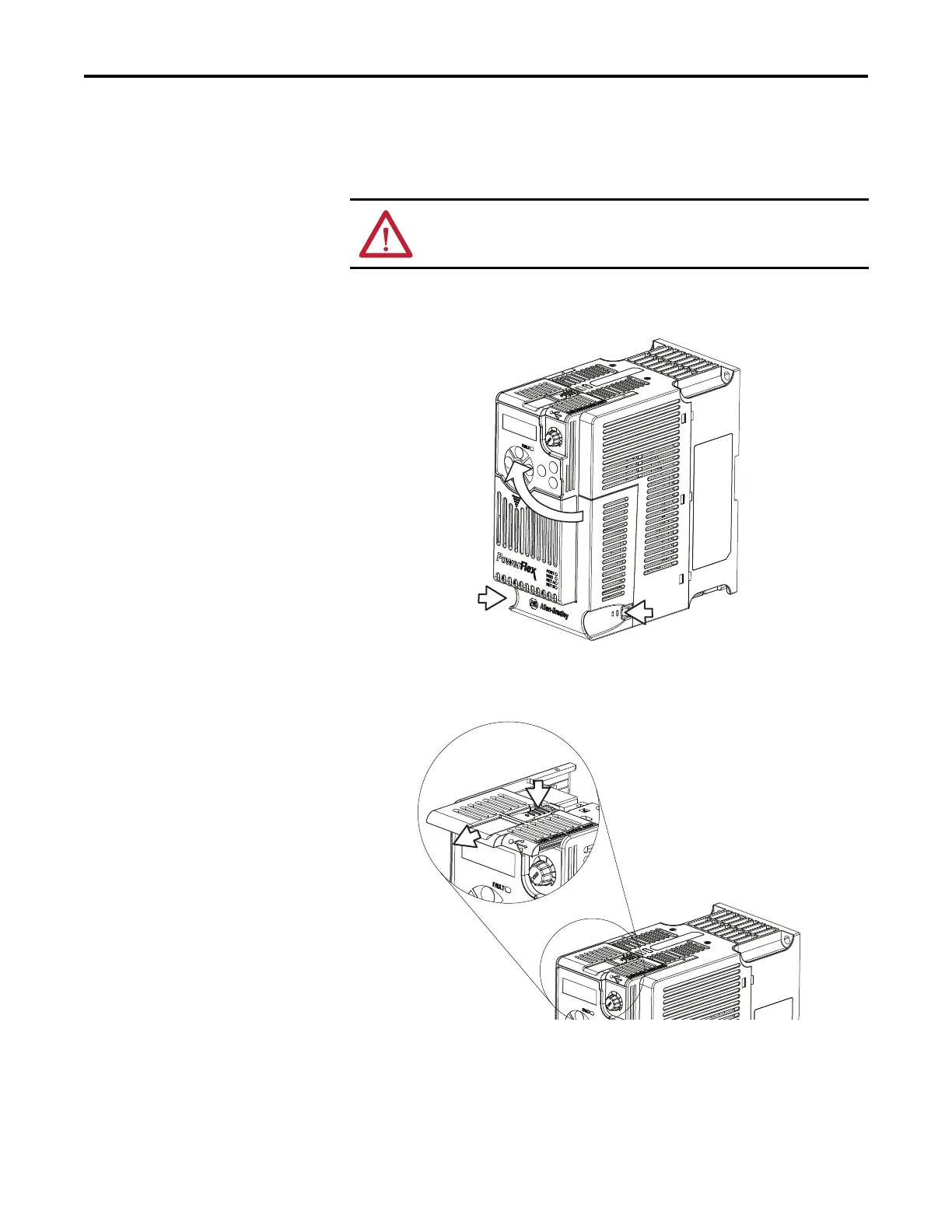

Separating the Power and Control Module
1. Press and hold down the catch on both sides of the frame cover, then pull
out and swing upwards to remove (Frames B...E only).
2. Press down and slide out the top cover of the Control Module to unlock it
from the Power Module.
ATTENTION: Perform this action only when drive is NOT powered.
1
2

Allen-Bradley PowerFlex 525 Specifications

General

Horsepower	0.5-30 HP
kW	0.4-22 kW
Input Voltage	200-240V AC, 380-480V AC
Enclosure	IP20, NEMA/UL Type 1
Communications	EtherNet/IP
Control Methods	V/Hz, Sensorless Vector
STO	Safe Torque Off (STO)
Output Voltage	0-Input Voltage
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5-95% non-condensing
Dimensions	Varies by model
Weight	Varies by model
