38 Rockwell Automation Publication 520-TD002A-EN-E - May 2015
PowerFlex 527 AC Drive Specifications

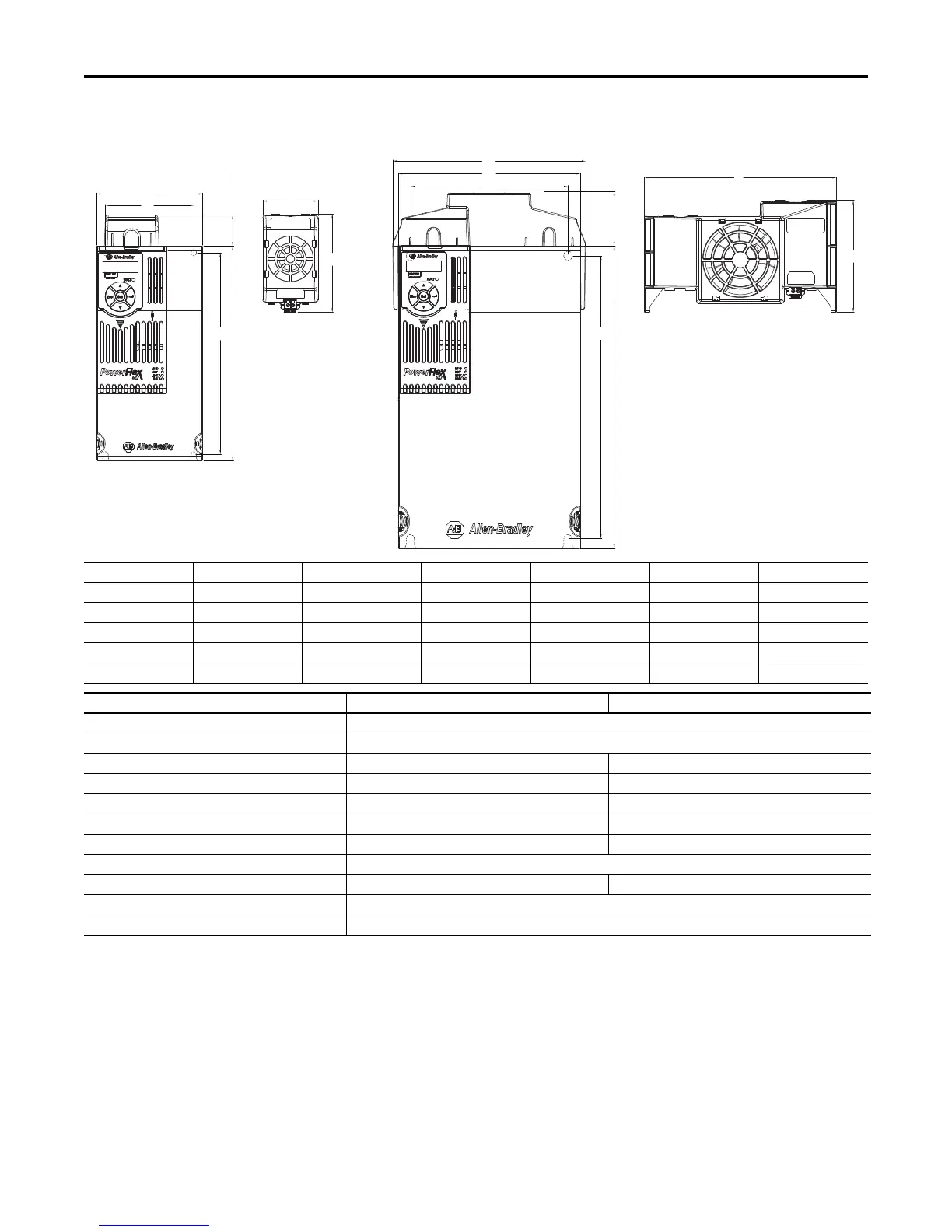

Control Module Fan Kit – Dimensions are in mm and (in.).
Frame Size A B C D E F
A 72.0 (2.83) 152.0 (5.98) 57.5 (2.26) 140.0 (5.51) 56.0 (2.20) 99.8 (3.93)
B 87.0 (3.43) 180.0 (7.09) 72.5 (2.85) 168.0 (6.61) 56.0 (2.20) 99.8 (3.93)
C 109.0 (4.29) 220.0 (8.66) 90.5 (3.56) 207.0 (8.15) 56.0 (2.20) 99.8 (3.93)
D 130.0 (5.12) 260.0 (10.24) 116.0 (4.57) 247.0 (9.72) 56.0 (2.20) 99.8 (3.93)
E 196.0 (7.72) 300.0 (11.81) 185.0 (7.28) 280.0 (11.02) 196.0 (7.72) 114.3 (4.50)
Specifications 25-FAN1-70C 25-FAN2-70C
Rated Voltage 24V DC
Operation Voltage 14...27.6V DC
Input Current 0.1 A 0.15 A
Speed (Reference) 7000 rpm 4500 ± 10% rpm
Maximum Air Flow (At zero static pressure) 0.575 m
3
/min 1.574 m
3
/min
Maximum Air Pressure (At zero air flow) 7.70 mmH
2
O 9.598 mmH
2
O
Acoustical Noise 40.5 dB-A 46.0 dB-A
Insulation Type UL Class A
Frame Size Frame A...D Frame E
Wire Size 0.32 mm
2
(22 AWG)
Torque 0.29...0.39 Nm (2.6...3.47 lb-in.)
E
F
A
F
A
32.0 (1.26)
B
D
C
C
A
52.0 (2.05)
B
D
E
