Rockwell Automation Publication 520-TD002A-EN-E - May 2015 15
PowerFlex 527 AC Drive Specifications

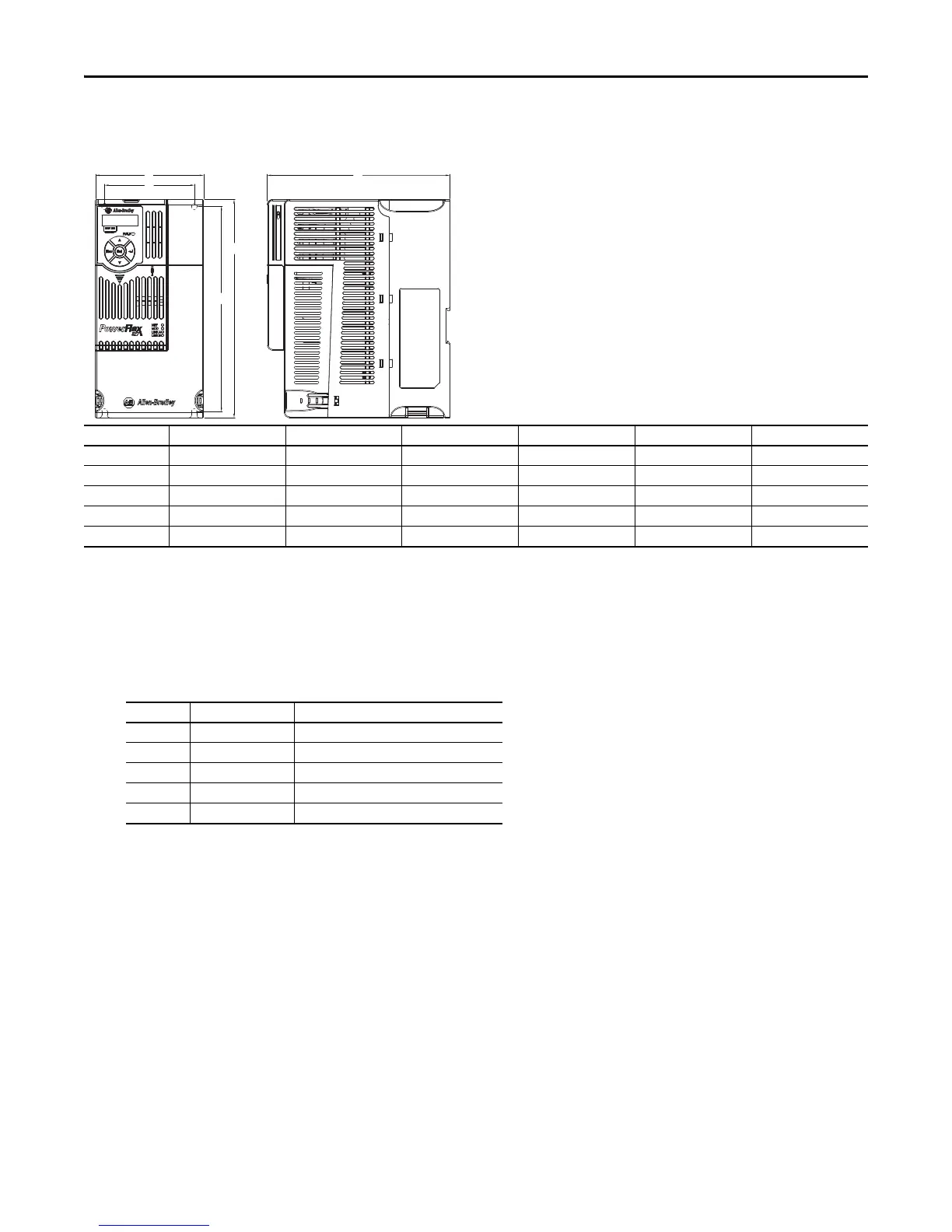

Drive Dimensions and Weight
Dimensions are in mm and (in.). Weights are in kg and (lb).
Design Considerations
Mounting Considerations
• Mount the drive upright on a flat, vertical and level surface.
• Protect the cooling fan by avoiding dust or metallic particles.
• Do not expose to a corrosive atmosphere.
• Protect from moisture and direct sunlight.
Frame Size A B C D E Weight
A 72.0 (2.83) 152.0 (5.98) 172.0 (6.77) 57.5 (2.26) 140.0 (5.51) 1.1 (2.4)
B 87.0 (3.43) 180.0 (7.09) 172.0 (6.77) 72.5 (2.85) 168.0 (6.61) 1.6 (3.5)
C 109.0 (4.29) 220.0 (8.66) 184.0 (7.24) 90.5 (3.56) 207.0 (8.15) 2.3 (5.0)
D 130.0 (5.12) 260.0 (10.24) 212.0 (8.35) 116.0 (4.57) 247.0 (9.72) 3.9 (8.6)
E 185.0 (7.28) 300.0 (11.81) 279.0 (10.98) 160.0 (6.30) 280.0 (11.02) 12.9 (28.4)
Frame Screw Size Screw Torque
A M5 (#10...24) 1.56...1.96 Nm (14...17 lb-in.)
B M5 (#10...24) 1.56...1.96 Nm (14...17 lb-in.)
C M5 (#10...24) 1.56...1.96 Nm (14...17 lb-in.)
D M5 (#10...24) 2.45...2.94 Nm (22...26 lb-in.)
E M8 (5/16 in.) 6.0...7.4 Nm (53...65 lb-in.)
