Allen-Bradley PowerFlex 70 Reference Manual

PowerFlex 70 Dimensions 1-9

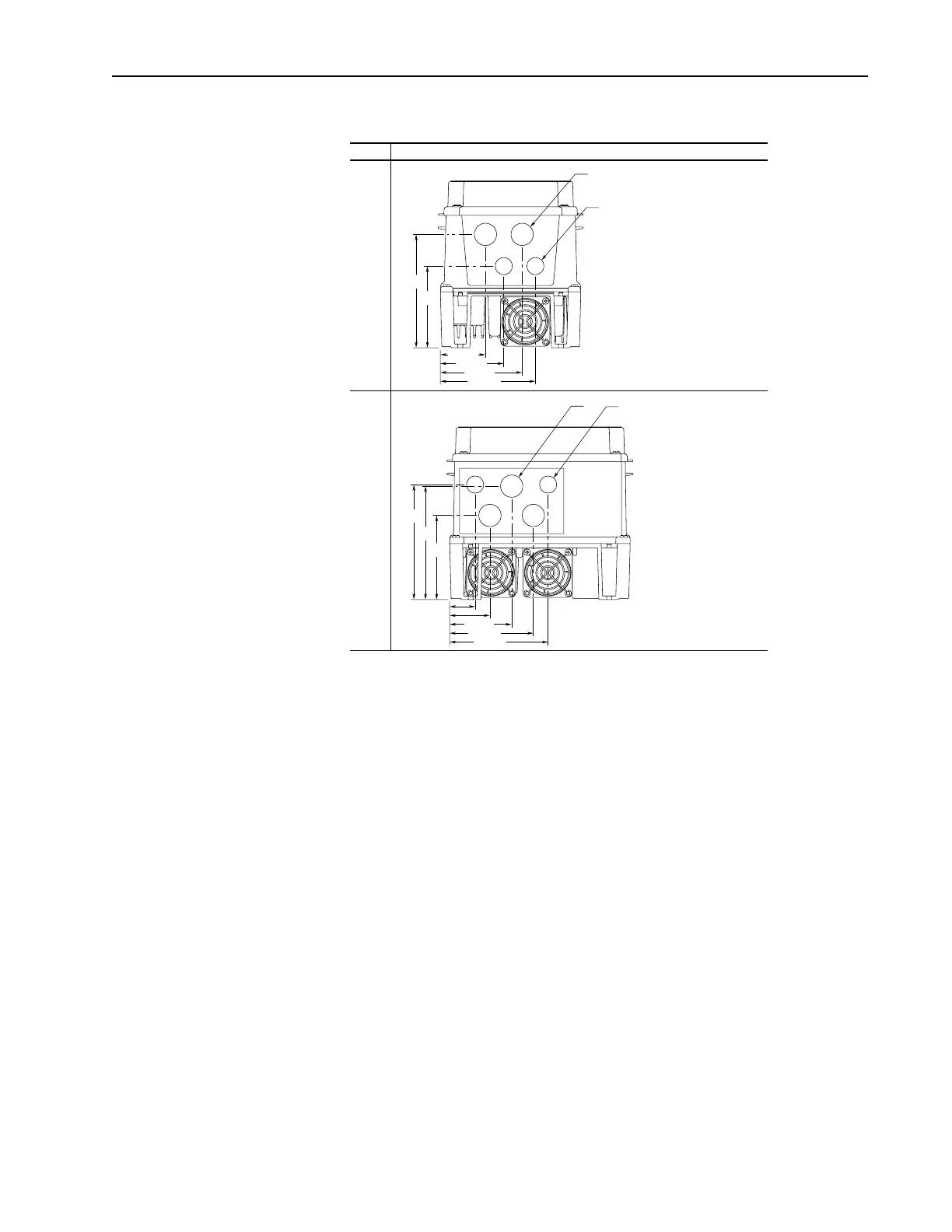

Figure 1.3 PowerFlex 70 IP66 (NEMA Type 4X/12) Bottom View Dimensions
Frame Dimensions in millimeters and (inches)
B
D
55.2 (2.17)
77.3 (3.04)
99.6 (3.92)
115.9 (4.56)
99.6
(3.92)
138.2
(5.44)
28.3
(1.11)
22.1
(0.87)
31.0 (1.22)
49.1 (1.93)
75.5 (2.97)
102.0 (4.02)
120.1 (4.73)
102.9
(4.05)
138.6
(5.46)
140.5
(5.53)
28.3
(1.11)
22.1
(0.87)

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
