1-16 PowerFlex 700 Dimensions

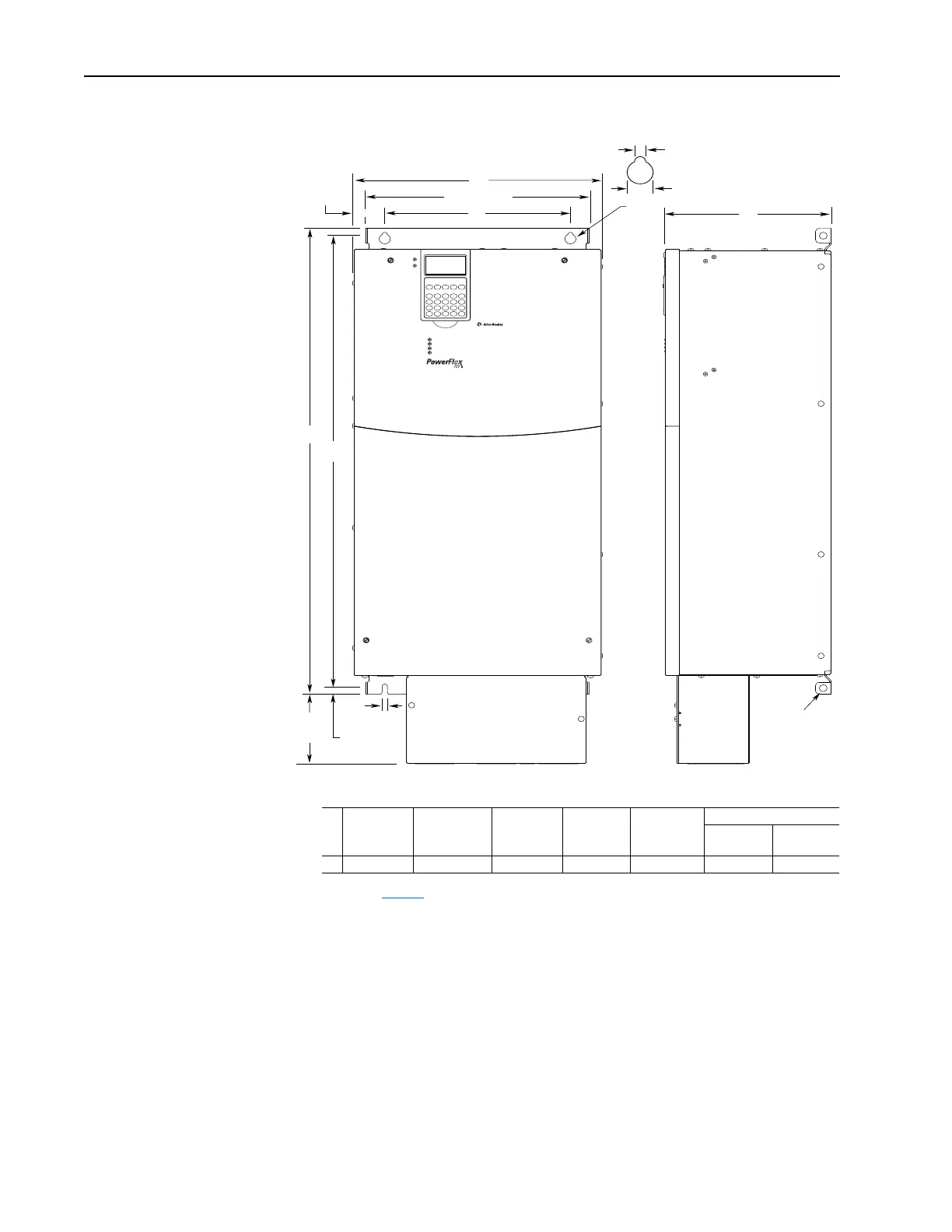

Figure 1.10 PowerFlex 700 Frame 6
Dimensions are in millimeters and (inches)
E
13.5 (0.53)
126.3
(4.97)
8.5 (0.33)
B
Lifting Holes
4 Places
12.7 (0.50) Dia.
D
C
A
360.6 (14.20)
Detail
18.0 (0.71)
8.5 (0.33)
49.6 (1.95)
Frame
(1)
(1)
Refer to Ta ble 1. B for frame information.
A (Max.) BC (Max.) DE
Approx. Weight
(2)
kg (lbs.)
(2)
Weights include HIM and Standard I/O.
Drive
Drive &
Packaging
6 403.9 (15.90) 850.0 (33.46) 275.5 (10.85) 300.0 (11.81) 825.0 (32.48) 71.44 (157.5) 91.85 (202.5)

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
