Allen-Bradley PowerFlex 70 Reference Manual

3-6 Evaluating the Internal Resistor

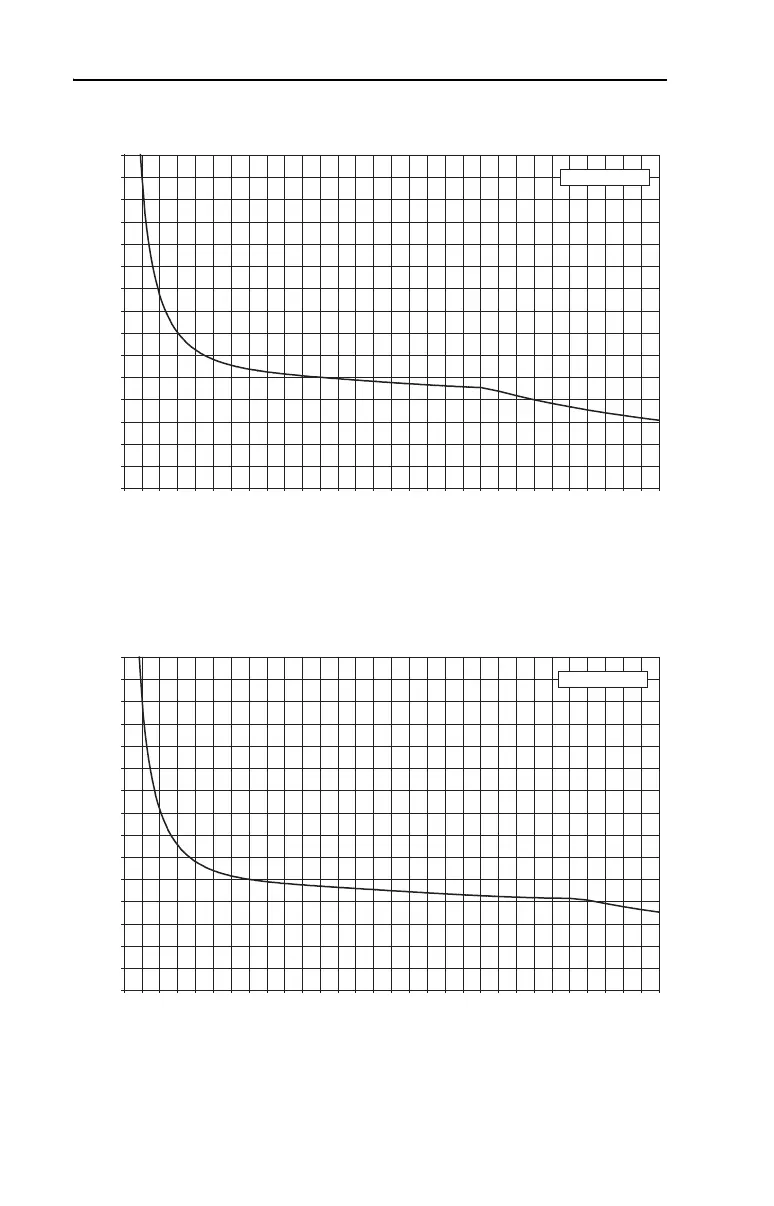

Figure 3.6 PowerFlex 70 – 480 Volt, Frame C
Figure 3.7 PowerFlex 70 – 480 Volt, Frame D
0 1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930
Decel Time (Seconds)
% Peak Power
0
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
480V Frame C
0 1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930
Decel Time (Seconds)
% Peak Power
0
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
480V Frame D

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
