Allen-Bradley PowerFlex 70 Reference Manual

2-10 Analog Inputs
Speed Ref A Sel Speed Ref B Sel TB Man Ref Sel PI Reference Sel PI Feedback Sel Current Lmt SelTrim In Select DC Brk Levl Sel Sleep-Wake Ref
Analog Input
1 Scale
Analog Input
2 Scale
Ref A
Scale/Limit
Ref B
Scale/Limit
Tr im
Scale/Limit
Cal Analog 1 Cal Analog 2
+
+
Hz Hz Hz %%
Hz
Volts or mA Volts or mA
Sleep Level
Wake Level

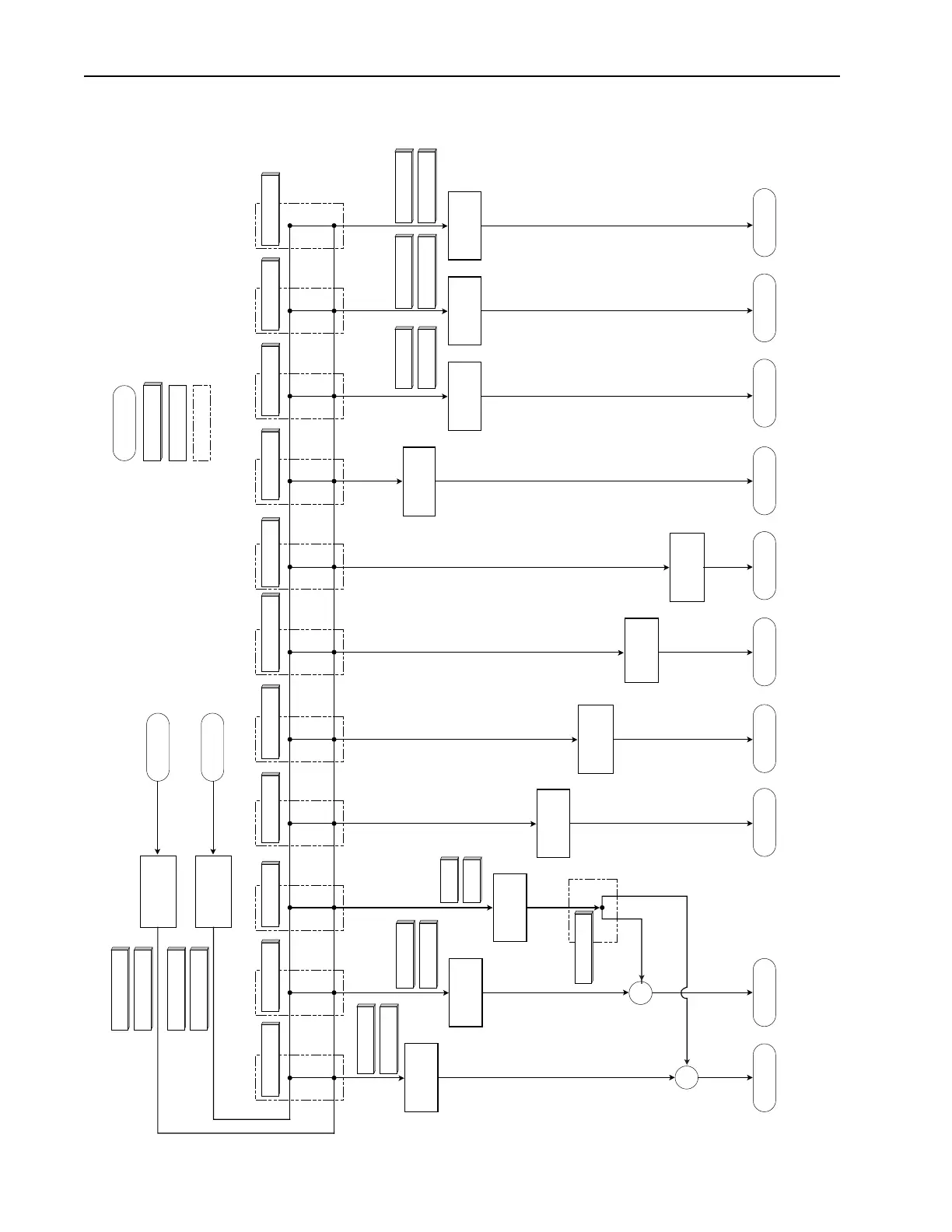

Input/Output Parameter Processing
Selection/Control
Speed Ref A Lo
Trim Lo
Trim Hi
Speed Ref A Hi
Speed Ref B Lo
Speed Ref B Hi
Analog In 1 Lo
Analog In 1 Hi
Analog In 2 Lo
Analog In 2 Hi
PI
Reference
Scale/Limit
TB Manual
Scale/Limit
PI Feedback
Scale/Limit
Current Limit
Scale/Limit
Current LimitPI FeedbackPI ReferenceTB ManualReference BReference A DC Brake Sleep/Wake
% Rated Current
% Rated Current
Sleep/ Wake
Sleep Level
Compare
Torque Ref A Sel
Torque Ref A Lo
Torque Ref A Hi
Torque Ref A
%
Torque Ref A
Div
Torque Ref B Sel
Torque Ref B Lo
Torque Ref B Hi
Torque Ref B
%
Torque Ref B
Mult
Brake Level
Scale/Limit
Trim Out Sel

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
