58 Rockwell Automation Publication 750-RM003A-EN-P - April 2018
Chapter 1 Selection Considerations

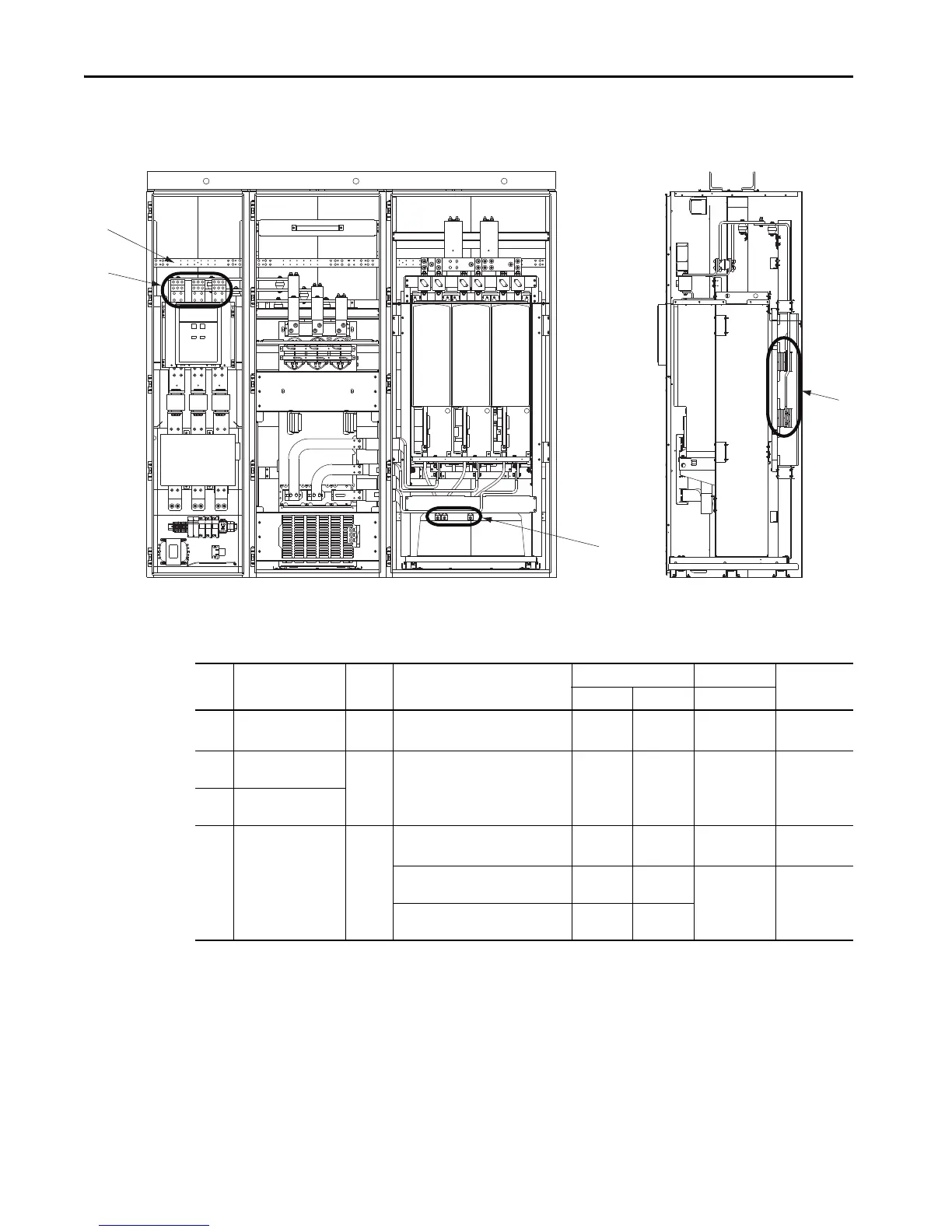

Figure 11 - PowerFlex 700AFE Frame 13 IP20 MCC Power Terminal Locations
Table 29 - PowerFlex 700AFE Frame 13 IP21 Rittal Power Terminal Specifications
1
2
3
4
Shown with
enclosure doors
and side removed.
Front View Right Side View
Item Name Frame Description
Wire Size Range
(1)
(2)
Torque
Terminal Bolt
Size
(3)
(4)
Max Min Recommended
1 Input power terminals
L1, L2, L3
(1)
13 Input power 380 mm
2
(750 MCM)
53 mm
2
(1/O AWG)
50 N•m
(442 lb•in)
—
2 SHLD terminal, line PE,
ground
(3)
13 Terminating point for wiring shields
300 mm
2
(600 MCM)
2.1 mm
2
(14 AWG)
40 N•m
(354 lb•in)
M5-M10
3 SHLD terminal, motor
PE, ground
(3)
4DC bus
(3)
(DC–, DC+) 13 DC output (using cable) 380 mm
2
(750 MCM)
2.1 mm
2
(14 AWG)
70 N•m
(620 lb•in)
M12
DC output (using right-side splice kit
SK-Y1-BUSSPLICE-F13R)
——
40 N•m
(354 lb•in)
M10
DC output (using left-side splice kit
SK-Y1-BUSSPLICE-F13L)
——
(1) Maximum/minimum sizes that the terminals can accept. These sizes are not recommendations.
(2) Do not exceed maximum wire size. Parallel connections can be required.
(3) These connections are bus bar type terminations and require the use of lug type connectors.
(4) Apply counter-torque to the nut on the other side of terminations when tightening or loosening the terminal bolt to avoid damage to the terminal.
