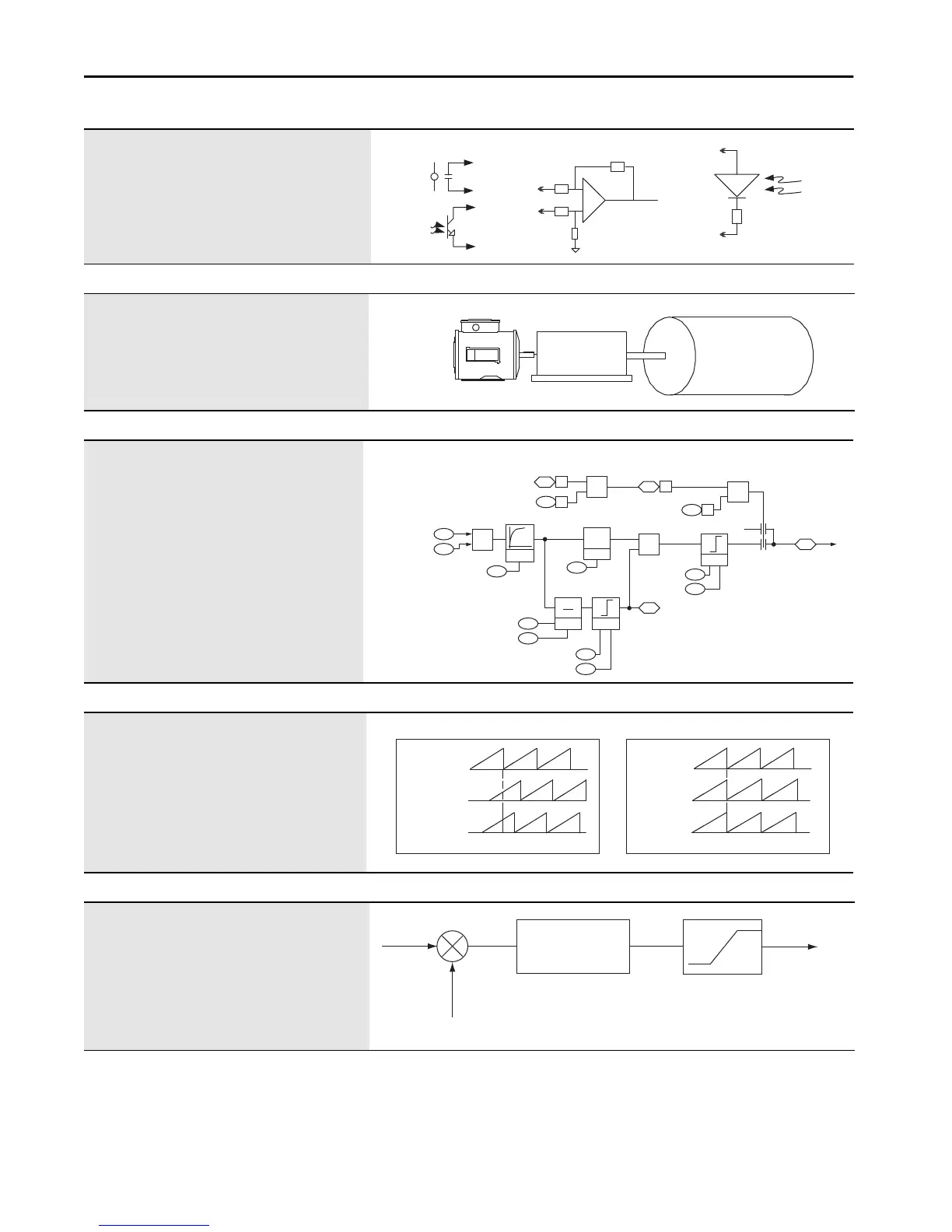

Rockwell Automation Publication 20D-TD002L-EN-P - July 2018 9
PowerFlex 700S Drives with Phase II Control
High-Speed Analog and Digital I/O execute in 0.5 ms or less to provide
fast response and fast capture for registration information and position
data. Output relays, optically isolated and differentially isolated I/O are
supplied.
Inertia Adaptation stabilizes inertia disconnect due to gear boxes or
flexible couplings. It also provides broadband resonance compensation,
allowing up to 4x improvement to speed regulator bandwidth.
An Enhanced Process Loop executes six times faster than previous
loops, providing greatly improved dynamic response in tension control
applications.
The Control Loops within each drive are Synchronized. In addition, the
control loops for all drives on SynchLink are synchronized within micro-
seconds. This provides exceptional link coordination and tracking for
critical applications.
The Enhanced Bus Regulator reacts four times faster than previous
products, providing quicker stops without over-voltage issues and
outstanding performance in other regenerative applications.
Gear Reducer
Motor
155 1
151 12
&
157 31
OR
183 00
181
182
184
kp
186
+
I Gain
P Gain
ki
s
185
187
Limit
Limit
188
189
191
192
180
190
LPass
Filter
0
1
Logic Status (Running)
Logic Command (Procs Trim En)
Logic Ctrl State
(Procs Trim En)
PI Command (Enable)
PI Reference
PI Feedback
PI Lpass Filt BW
PI Preload
PI Integ Time
PI Prop Gain
PI Integ HLim
PI Integ LLim
PI Integ Output
PI High Limit
PI Lower Limit
PI Output
0
to Speed Control
- Reference [2G5]
+
-
Drive 1
(Time keeper)
Followers
Drive 1
(Time keeper)
Followers
Before Synchronization Synchronized Operation
Bus Limit
Bus Voltage
Quick Switch
Bus Regulator
Regenerate
Bus Regulator
Ki
To Next Page
