Rockwell Automation Publication 750-UM003D-EN-P - March 2017 19
Installation and Wiring Chapter 2

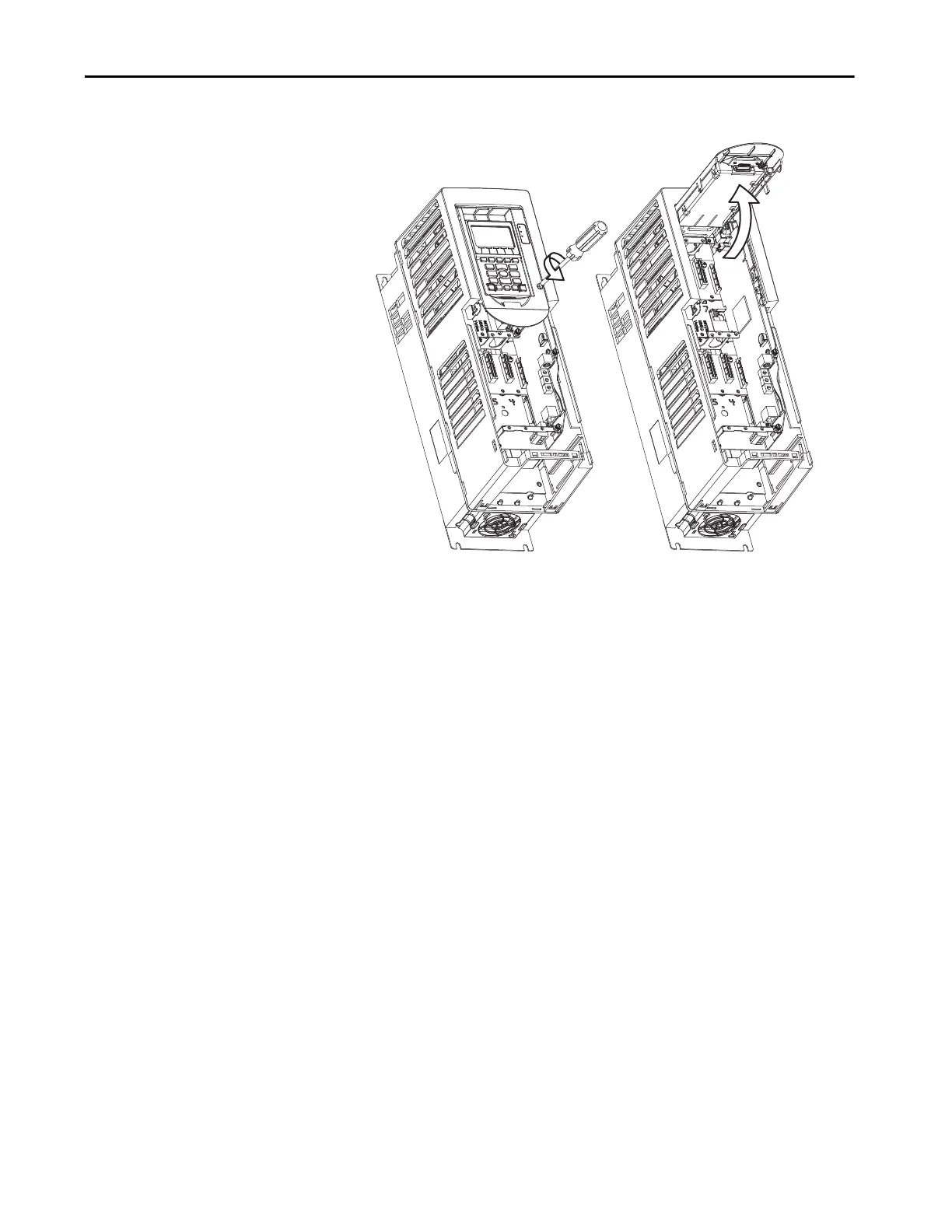

b. Lift the cradle until the latch engages.
Remove the Drive Cover for Frames 8…12
To remove the drive cover for PowerFlex 755 AC drives and PowerFlex 755T
drive products, frame 8…12, follow these steps.
1. Remove the top screws.
2. Loosen the bottom screws.
3. Remove the right front cover.
