Reference Section

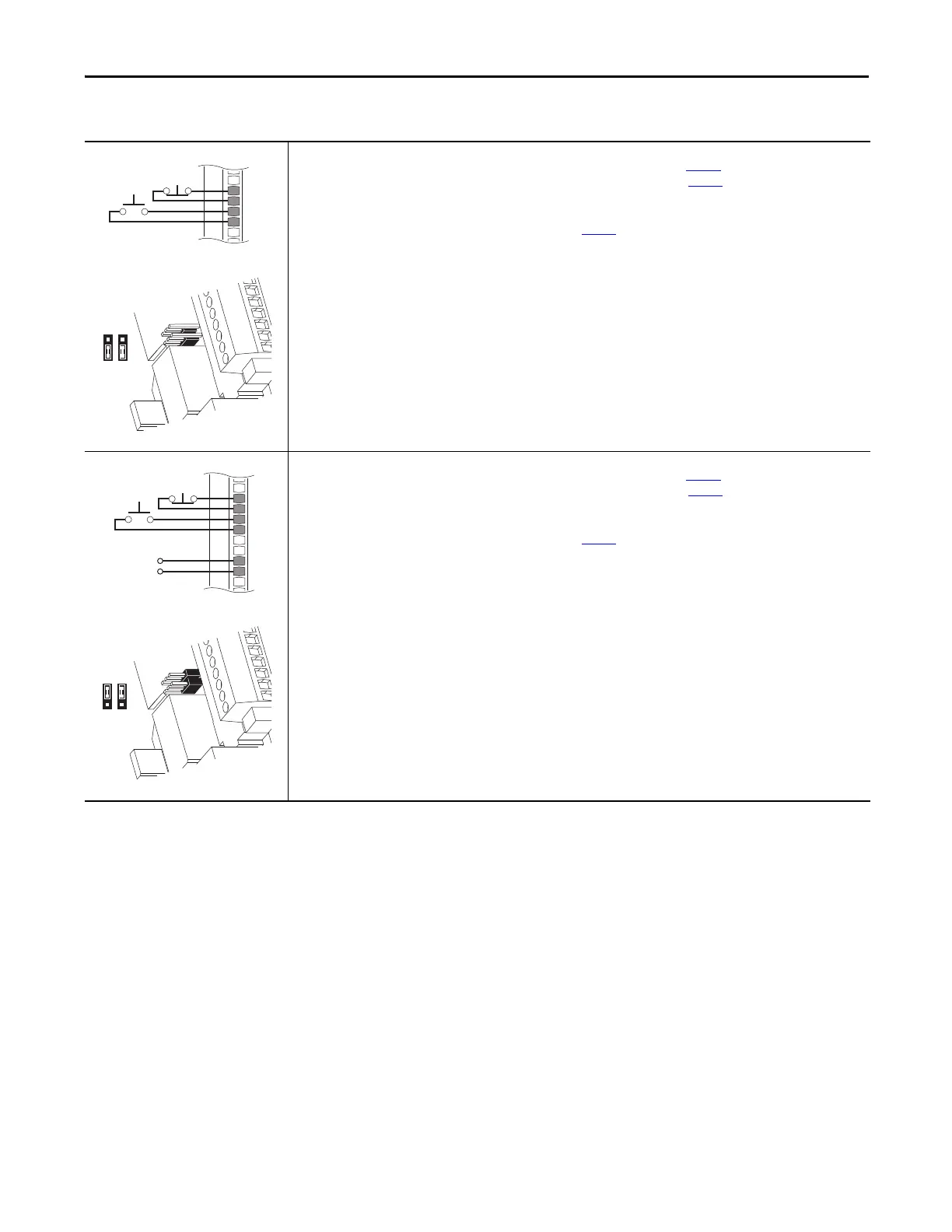

Table 24 - 3-Wire Control on 11-Series I/O Module
Internal Supply
11-Series I/O Module TB1
Set Selection
Port 0: P158 [DI Stop] = Port 4 (or port where your 11-Series I/O Module is installed), See page 10: P1 [Dig In Sts], bit 0 = Input 0
Port 0: P161 [DI Start] = Port 4 (or port where your 11-Series I/O Module is installed), See page
10: P1 [Dig In Sts], bit 1 = Input 1
View Results
Port 4 (or port where your 11-Series I/O Module is installed), See page
10: P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]
Jumpers set to internal supply source.
External Supply
11-Series I/O Module TB1
Set Selection
Port 0: P158 [DI Stop] = Port 4 (or port where yo
ur 11-Series I/O Module is installed), See page 10: P1 [Dig In Sts], bit 0 = Input 0
Port 0: P161 [DI Start] = Port 4 (or port where your 11-Series I/O Module is installed), See page
10: P1 [Dig In Sts], bit 1 = Input 1
View Results
Port 4 (or port where your 11-Series I/O Module is installed), See page
10: P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]
IMPORTANT: Connect 24V supply only to 20-750-1132C-2R or 20-750-1133C-1R2T.
C
onnect 120V supply only to 20-750-1132D-2R.
Jumpers set to external supply source.
Di0
Di0P
Di1
Di1P
Start
Stop
P3
P8
3
1
3
1
Di0
Di0P
Di1
Di1P
Ip
Ic
+24V or +120V
Common
Stop
Start
Start
Stop
Common
P3 P8
3
1
3
1
