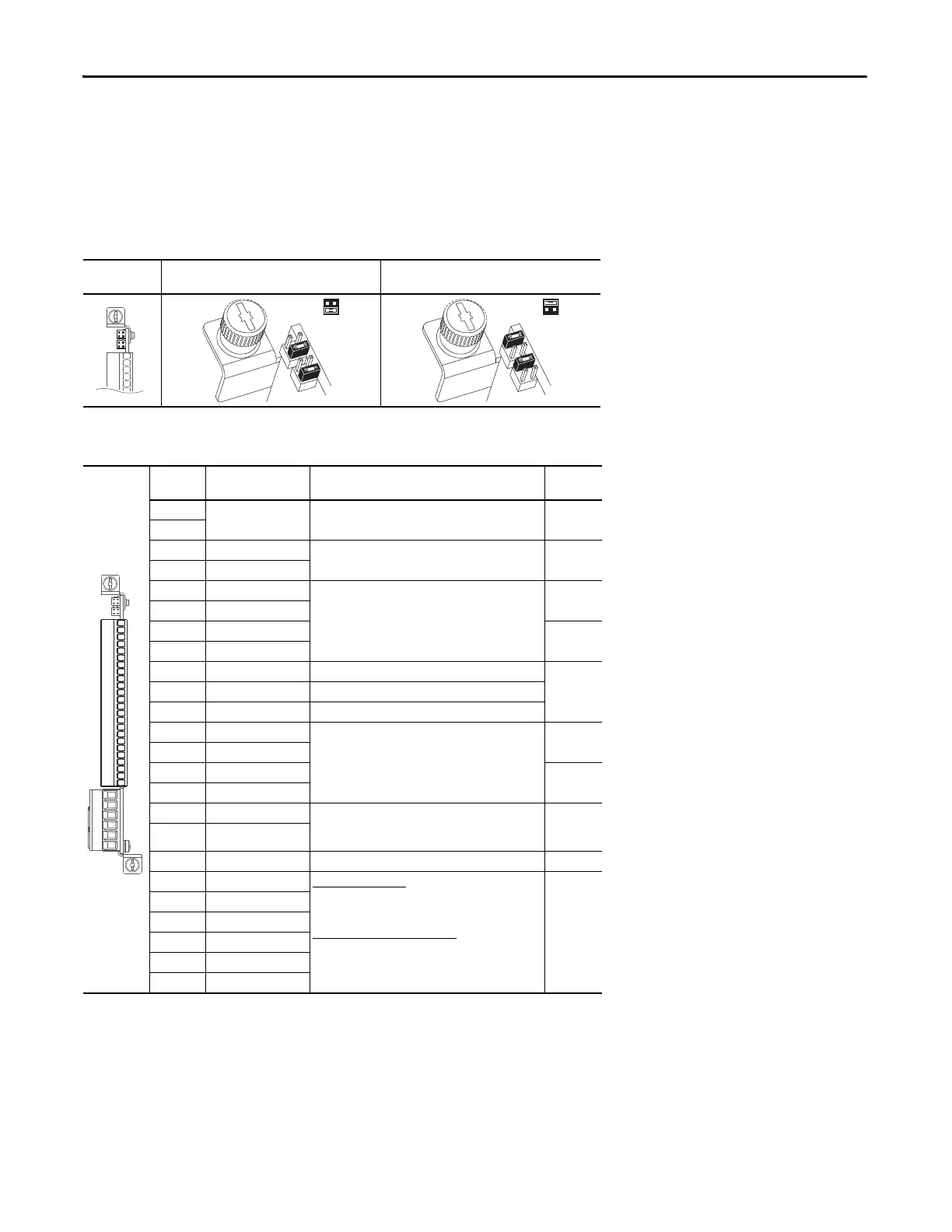

48 Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Reference Section
Connections on 22-Series Expansion I/O Module
Terminal block TB1 and the input mode jumpers are mounted on the option module installed in the drive.
22-Series I/O Module
Table 25 - Input Mode Jumpers
Jumper
Position
Voltage Mode Current Mode
Table 26 - TB1 Terminal Designations
Terminal Name Description Related
Param
(4)
(4) I/O Module parameters also have a Port designation.
Sh Shield Terminating point for wire shields when an EMC plate
or conduit box is not installed.
Sh
Ptc– Motor PTC (–) Motor protection device (Positive Temperature
Co
efficient).
40
on Port X
Ptc+ Motor PTC (+)
Ao0– Analog Out 0 (–) Bipolar, ±10V, 11 bit & sign, 2 k ohm minimum load.
4-20 mA, 11 bit & sign, 400 ohm maximum load.
75
on Port X
Ao0+ Analog Out 0 (+)
Ao1– Analog Out 1 (–) 85
on Port X
Ao1+ Analog Out 1 (+)
–10V –10 Volt Reference 2k ohm minimum.
10VC 10 Volt Common For (–) and (+) 10 Volt references.
+10V +10 Volt Reference 2k ohm minimum.
Ai0– Analog Input 0 (–) Isolated
(2)
, bipolar, differential, 11 bit & sign.
Voltage Mode: ±10V @ 88k ohm input impedance.
Current Mode: 0-20 mA @ 93 ohm input impedance.
(2) Differential Isolation - External source must be maintained at less than 160V with respect to PE. Input provides high common mode
immunity.
50, 70
on Port X
Ai0+ Analog Input 0 (+)
Ai1– Analog Input 1 (–) 60, 70
on Port X
Ai1+ Analog Input 1 (+)
24VC 24 Volt Common Drive supplied logic input power.
200 mA max. per I/O module
600 mA max per drive
+24V +24 Volt DC
Di C Digital Input Common Common for Digital Inputs 0…5
Di 0 Digital Input 0
(1)
(1) Digital Inputs are either 24 Volts DC (2262C) or 115 Volts AC (2262D) based on module catalog number. Ensure applied voltage is
correct for I/O module.
24V DC (30V DC Max.) - Opto isolated
High State: 20…24V DC 11.2 mA DC
Low State: 0…5V DC
120V AC (132V AC Max.) 50/60 Hz
(3)
- Opto isolated
High State: 100…132V AC
Low State: 0…30V AC
(3) For CE compliance use shielded cable. Cable length should not exceed 30 m (98 ft).
1
on Port X
Di 1 Digital Input 1
(1)
Di 2 Digital Input 2
(1)
Di 3 Digital Input 3
(1)
Di 4 Digital Input 4
(1)
Di 5 Digital Input 5
(1)
Ai0
Ai1
Ai0
Ai1
Sh
Sh
PTC–
PTC+
Ao0–
Ao0+
Ao1–
Ao1+
–10V
10VC
+10V
Ai0–
Ai0+
Ai1–
Ai1+
24VC
+24V
DiC
Di0
Di1
Di2
Di3
Di4
Di5
