Allen-Bradley PowerFlex 753 User Manual

Rockwell Automation Publication 750-QS001A-EN-P - March 2015 49
Reference Section

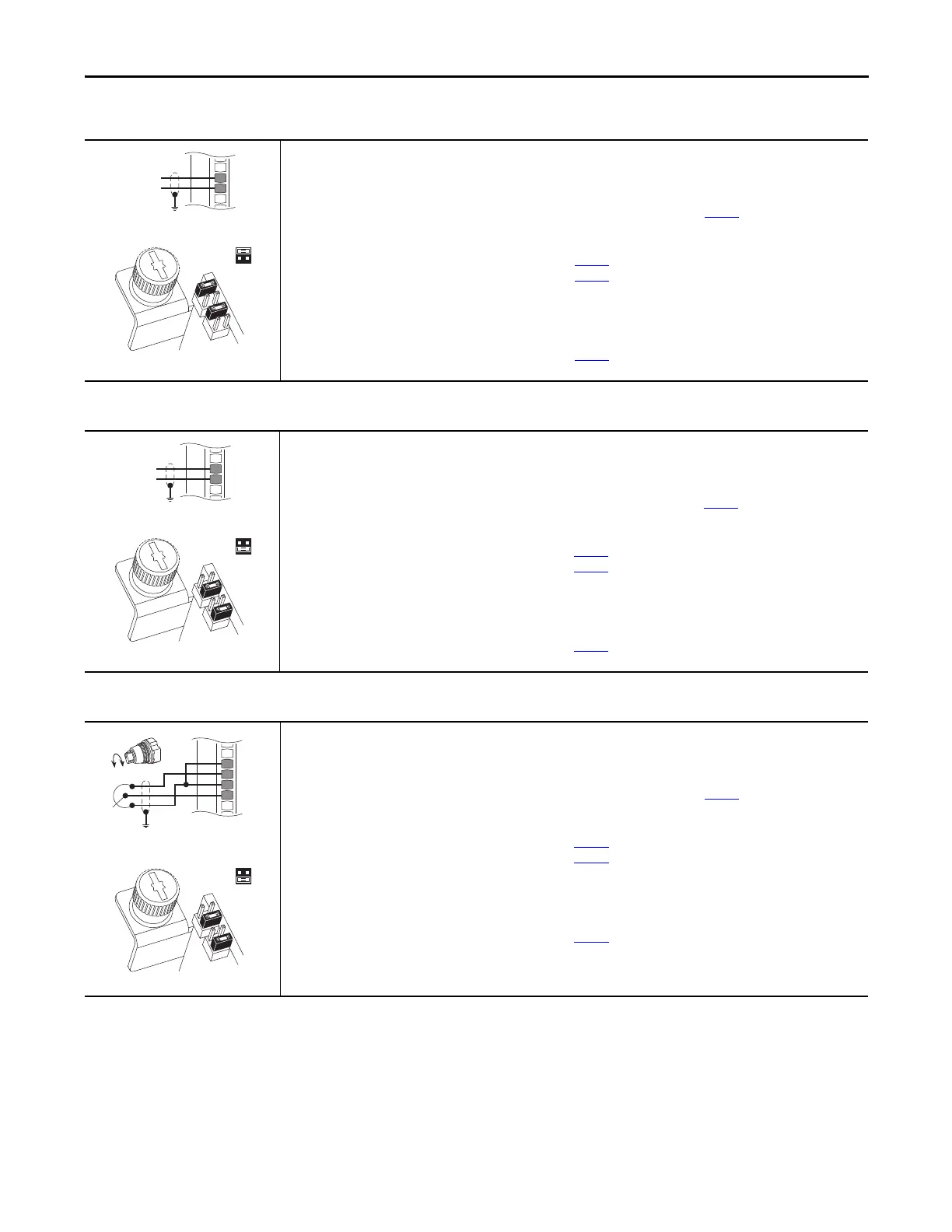

Table 27 - 0…20 mA Analog Input - Unipolar Speed Reference at Terminals Ai0±
22-Series I/O Module TB1
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 “Unipolar”
Set Selection
Port 0: P545 [Spd Ref A Sel] = Port 4 (or port where y
our 22-Series I/O Module is installed), See page 10: P50 [Anlg In0 Value]
Adjust Scaling
Port 4 (or port where your 22-Series I/O Module is installed), See page
10: P51 [Anlg In0 Hi] = 20 mA
Port 4 (or port where your 22-Series I/O Module is installed), See page
10: P52 [Anlg In0 Lo] = 0 mA
Port 0: P547 [Spd Ref A AnlgHi] = 60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = 0 Hz
View Results
Port 4 (or port where your 22-Series I/O Module is installed), See page
10: P50 [Anlg In0 Value]
Port 0: P592 [Selected Spd Ref]
Jumpers set to current mode.
Table 28 - 0…+10V Analog Input - Unipolar Speed Reference at Terminals Ai0±
22-Series I/O Module TB1
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 “Unipolar”
Set Selection
Port 0: P545 [Spd Ref A Sel] = Port 4 (or port where y
our 22-Series I/O Module is installed), See page 10: P50 [Anlg In0 Value]
Adjust Scaling
Port 4 (or port where your 22-Series I/O Module is installed), See page
10: P51 [Anlg In0 Hi] = 10 Volt
Port 4 (or port where your 22-Series I/O Module is installed), See page
10: P52 [Anlg In0 Lo] = 0 Volt
Port 0: P547 [Spd Ref A AnlgHi] = 60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = 0 Hz
View Results
Port 4 (or port where your 22-Series I/O Module is installed), See page
10: P50 [Anlg In0 Value]
Port 0: P592 [Selected Spd Ref]
Jumpers set to voltage mode.
Table 29 - 10k Ohm Potentiometer - Unipolar Speed Reference at Terminals Ai0±
22-Series I/O Module TB1
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 “Unipolar”
Set Selection
Port 0: P545 [Spd Ref A Sel] = Port 4 (or port where
your 22-Series I/O Module is installed), See page 10: P50 [Anlg In0 Value]
Adjust Scaling
Port 4 (or port where your 22-Series I/O Module is installed), See page
10: P51 [Anlg In0 Hi] = 10 Volt
Port 4 (or port where your 22-Series I/O Module is installed), See page
10: P52 [Anlg In0 Lo] = 0 Volt
Port 0: P547 [Spd Ref A AnlgHi] = 60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = 0 Hz
View Results
Port 4 (or port where your 22-Series I/O Module is installed), See page
10: P50 [Anlg In0 Value]
Port 0: P592 [Selected Spd Ref]
Jumpers set to voltage mode.
Ai0–
Ai0+
+
Common
Ai0
Ai1
Ai0–
Ai0+
+
Common
Ai0
Ai1
10VC
+10V
Ai0–
Ai0+
Ai0
Ai1

Allen-Bradley PowerFlex 753 Specifications

General

Output Voltage	0 to input voltage
Humidity	5% to 95% non-condensing
Altitude	Up to 1000 m (3300 ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC
Horsepower	1 to 250 HP
Enclosure	NEMA/UL Type 1, 12, IP20, IP30, IP54
Communications	EtherNet/IP, DeviceNet, ControlNet
Control Method	Sensorless Vector Control, V/Hz Control
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
