38 Rockwell Automation Publication PFLEX-AP005B-EN-P - May 2019
Chapter 1 Drive Selection Considerations

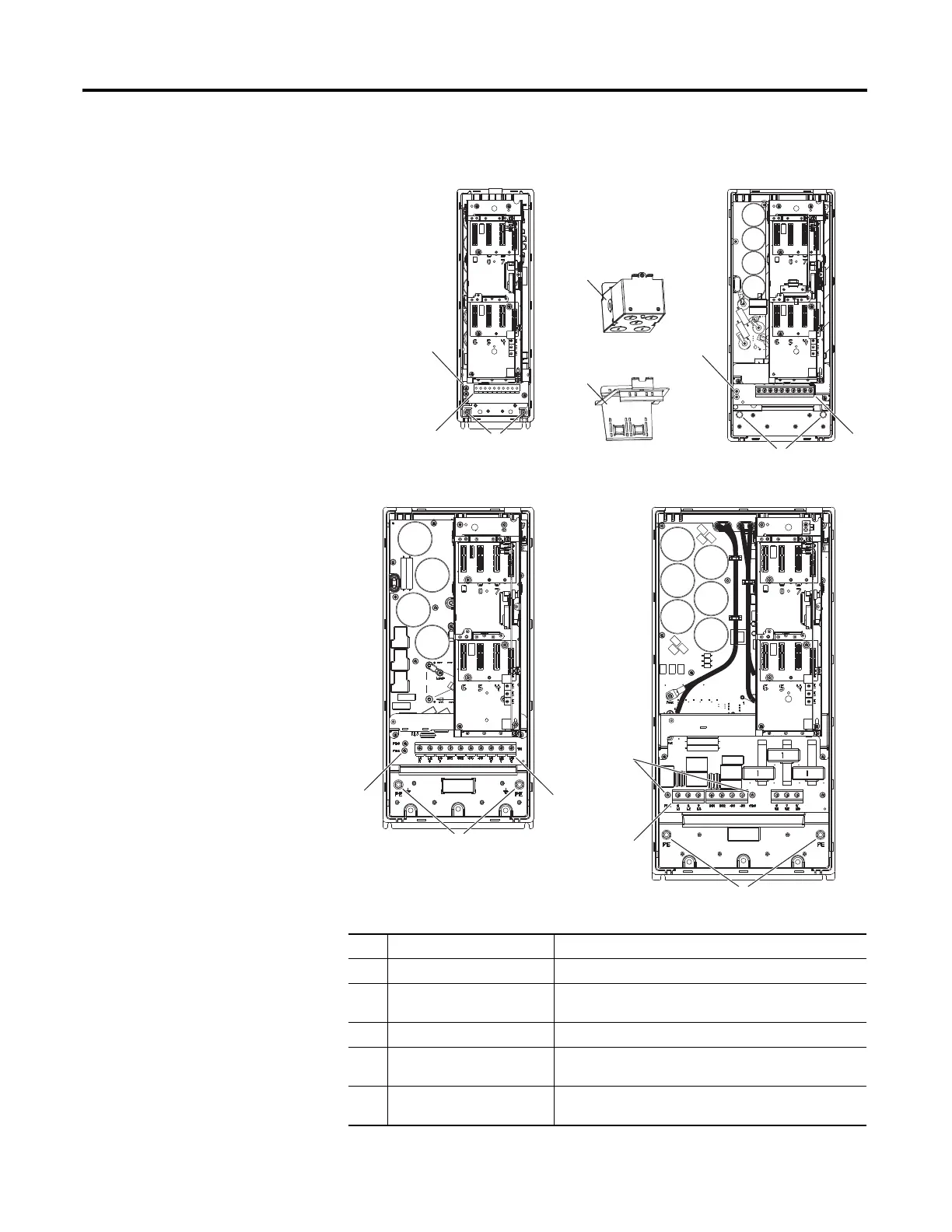

Figure 16 - PowerFlex 750-Series Frames 2…5
Typical Terminal Block Location and Termination Points
No. Name Description
1 Power Terminal Block R/L1, S/L2, T/L3, BR1, BR2, +DC, -DC, U/T1, V/T2, W/T3
2 PE Grounding Studs Terminating point to chassis ground for incoming AC line
and motor shields
3 PE-A and PE-B MOV and CMC jumper screws
4 Optional NEMA/UL Type 1
Conduit Box
Terminating point to chassis ground for incoming AC line,
motor shields, and control wire shields
5 Optional EMC Plate Terminating point to chassis ground for incoming AC line,
motor shields, and control wire shields
Frame 2
Frame 3
Frame 4
Frame 5
