Rockwell Automation Publication PFLEX-AP005B-EN-P - May 2019 39
Drive Selection Considerations Chapter 1

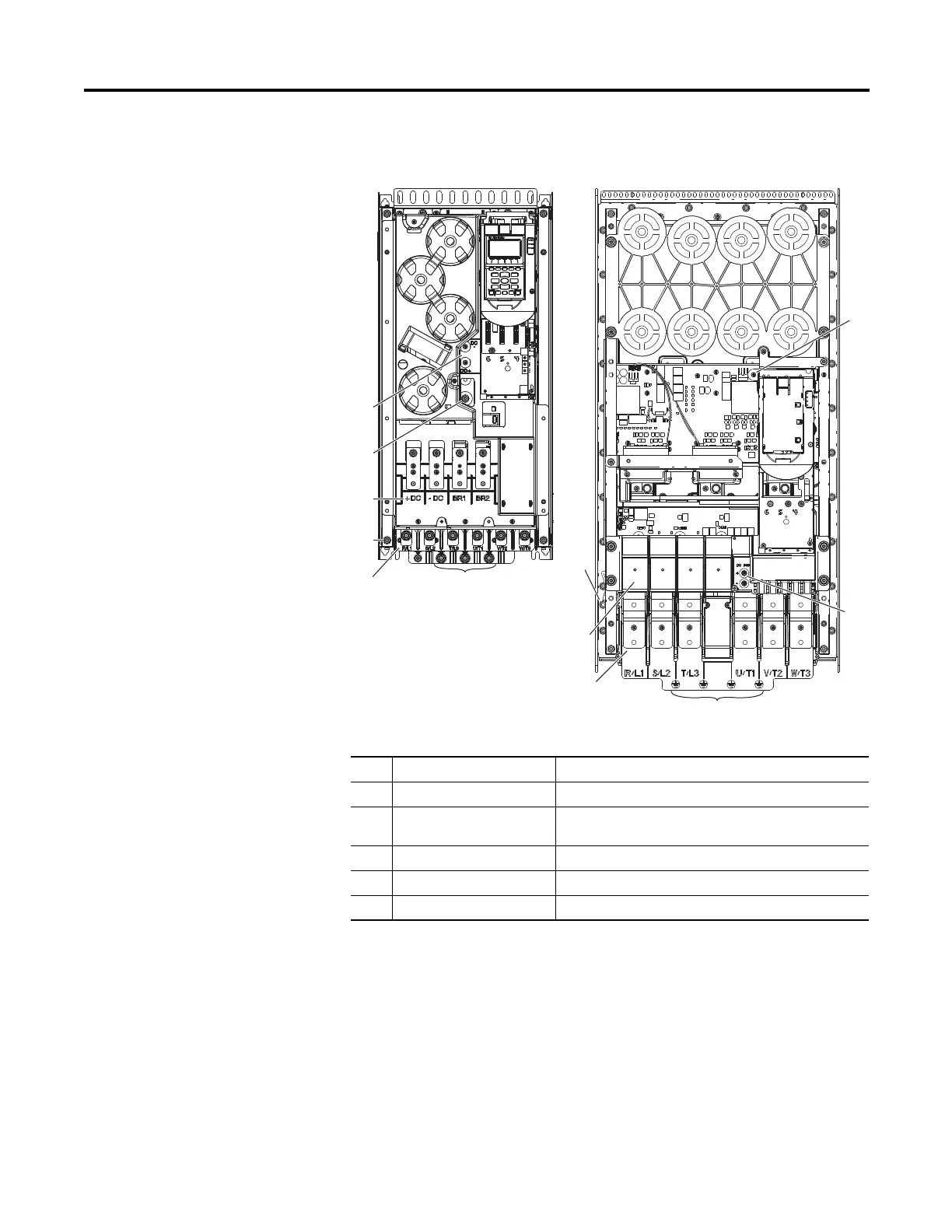

Figure 17 - PowerFlex 750-Series Frames 6 and 7
Typical Terminal Block Location and Termination Points (continued)
No. Name Description
1 Power Terminals R/L1, S/L2, T/L3, U/T1, V/T2, W/T3
2 PE Grounding Studs Terminating point to chassis ground for incoming AC line
and motor shield
3 DC Bus and Brake Terminals +DC, -DC, BR1, BR2
4 PE-A and PE-B MOV and CMC jumper wires
5 DC+ and DC- Bus voltage test points
Frame 6
Frame 7
