Ethernet Switches
Stratix
9-14
Visit our website: www.ab.com/catalogs
Publication M117-CA001A-EN-P
Embedded Switch Technology
General Quick Selection 9-Ethernet
Switches
Connection
Systems
PannelConnect Safety
Connection
6-Ethernet
Switches

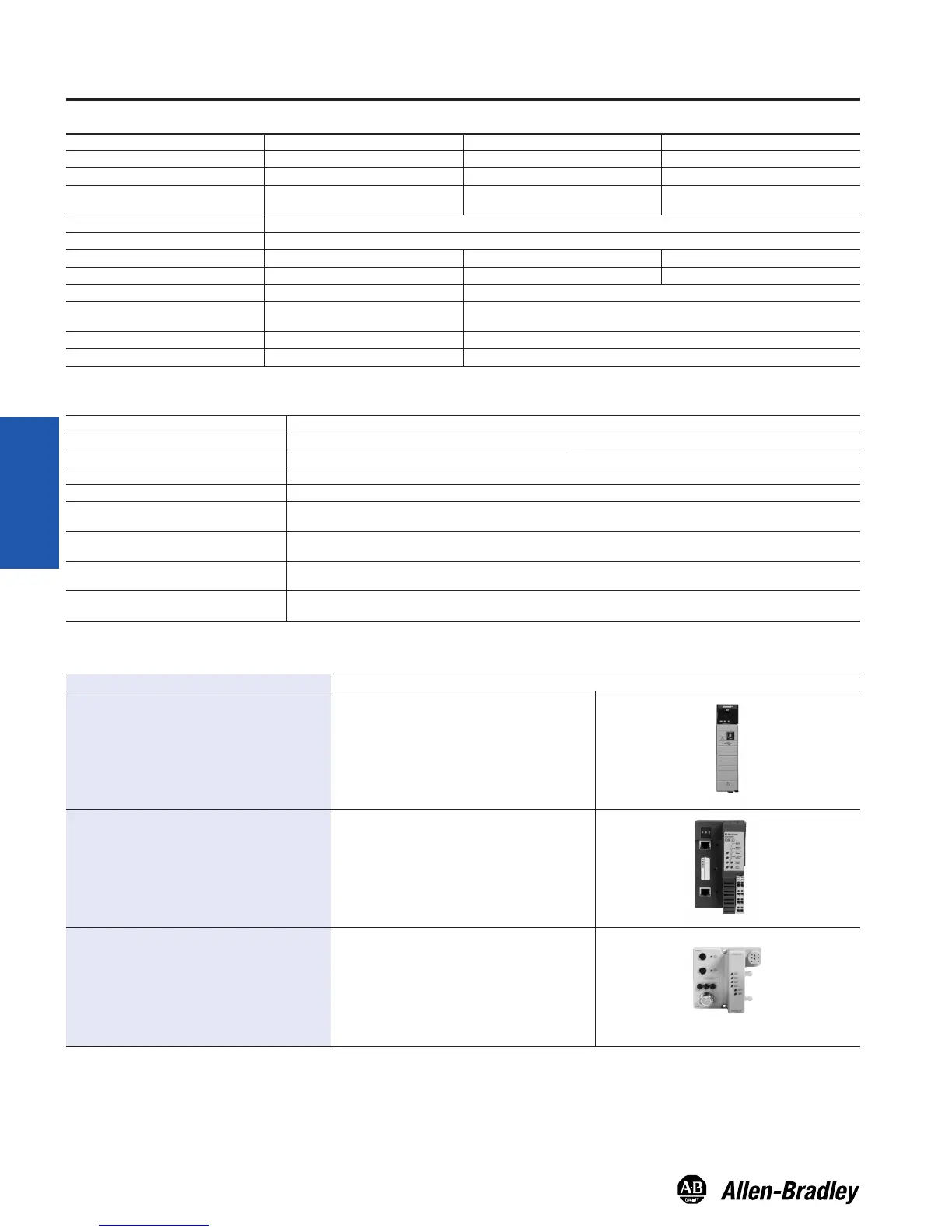

1783-ETAP 1783-ETAP1F 1783-ETAP2F
Ports per Module 3 3
Copper Ports 3 10/100 Mbps, full or half duplex 2 10/100 Mbps, full or half duplex 1 10/100 Mbps, full or half duplex
Fiber Ports
⎯
1 100 Base-FX port multimode, with
LC connector
2 100 Base-FX port multimode, with
LC connector
CompactFlash Memory No
Power Requirements 24V DC (20.4…27.6V DC)
Current Consumption, Max. 125 mA @ 24V DC 200 mA @ 24V DC 260 mA @ 24V DC
Power Consumption, Max. 3 W 4.8 W 6.24 W
Fiber Optic Ethernet Data Rate
⎯
100 Mbps
Fiber Optic Link Budget
⎯
12.8 dB for 62.5/125 μm multimode fiber
9.3 dB for 50/125 μm multimode fiber
Fiber Optic Cable Length, Max
⎯
Graded index multimode fiber; 2000 m
Fiber Optic Connector Type
⎯
LC
Feature Benefit
RSLogix 5000 AOP (Add On Profile) Enables easy switch setup and diagnostics with Logix controllers and the Integrated Architecture
VLAN (Virtual LAN) with trunking Helps ease network management in the production network
QoS (Quality of Service) Enables prioritization of applications, users, or data flows to help provide a higher level of network predictability
Bandwidth Threshold Alarming Supports alarms to track network changes and detect malfunctioning devices
STP/RSTP (Spanning Tree Protocol/Rapid
Spanning Tree Protocol)
Provides a resilient path between switches for applications that require a fault-tolerant network
DLR (Device-level Ring) Supports a resilient ring network at the device level without external switching hardware, providing fast recovery
rates for real-time control applications
CIP Sync (IEEE 1588) Supports very high precision clock synchronization across automation devices for time-critical tasks such as
accurate alarming for post-event diagnostics and precision motion
IGMP (Internet Group Management
Protocol) Snooping and Querier
Reduces multicast traffic from intensive IP applications, such as I/O control on EtherNet/IP
Key Software Features
Technical Specifications
Cat. No. Description
1756-EN2TR
ControlLogix 2-Port EtherNet/IP Communication
Module
1734-AENTR POINT I/O 2-Port EtherNet/IP Adapter
1738-AENTR ArmorPoint I/O 2-Port EtherNet/IP Adapter
Additional Products with Embedded Switch Technology
