Ethernet Switches

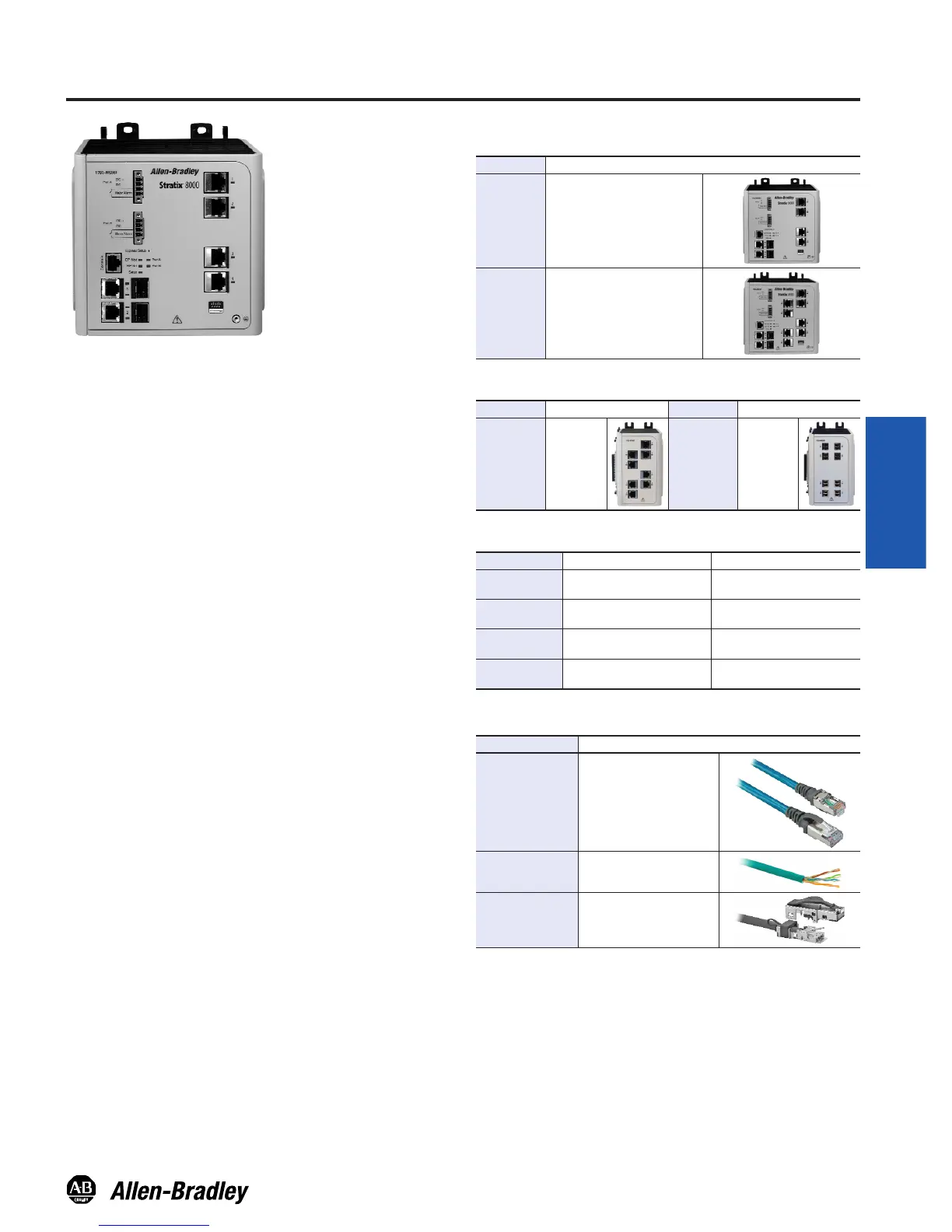

Stratix 8000
9-7
Visit our website: www.ab.com/catalogs
Publication M117-CA001A-EN-P
Modular Managed Switches
GeneralQuick Selection9-Ethernet
Switches
Connection
Systems
PannelConnectSafety
Connection
6-Ethernet
Switches
Base Switches
Cat. No. Description
1783-MS06T
6 copper ports (includes 2
dual-purpose ports with SFP
slots), Layer 2 switch
1783-MS10T
10 copper ports (includes 2
dual-purpose ports with SFP
slots), Layer 2 switch
Expansion Modules
Cat. No. Description Cat. No. Description
1783-MX08T
8 copper
ports
1783-MX08F
8 fiber
ports
Fiber Optic Uplink (SFP) Transceivers
Cat. No. Description Compatible With
1783-SFP100FX
100Base-FX Multi-mode
Fiber SFP
Stratix 8000/8300
1783-SFP100LX
100Base-LX Single-mode
Fiber SFP
Stratix 8000/8300
1783-SFP1GSX
1000Base-SX Multi-mode
Fiber Transceiver
Stratix 8000/8300, Stratix
6000
1783-SFP1GLX
1000Base-LX/LH Single-
mode Fiber SFP
Stratix 8000/8300, Stratix
6000
Description
Product Selection
Features
Ethernet Cable
 Best of Cisco:
− Secure integration with enterprise network
− Cisco internet operating system (IOS)
− Cisco Catalyst switch architecture/feature set
− Common configuration tools, command line interface (CLI), CNA,
and Device Manager
 Best of Rockwell Automation:
− CIP interface to Integrated Architecture
− RSLogix 5000 programming software for configuration (AOP)
− Predefined Logix tags for diagnostics
− FactoryTalk View HMI software faceplates for status monitoring
and alarming
 Best for the manufacturing environment:
− Removable CompactFlash memory card stores configuration for
easy device replacement
− Industrial environmental ratings
− Default configurations for industrial automation and EtherNet/IP
devices (Globals and Smartports)
Cat. No. Description
1585J-M8PBJM-21
RJ45 to RJ45 patchcord
1585-C8PB-S100
Ethernet cable spool
1585J-M8CC-H
Field attachable connector,
IDC
1 Replace -2 (2 m) with 5 (5 m) or 10 (10 m) for additional standard cable
lengths.
 Replace 100 (100 m) with 300 (300 m) or 600 (600 m) for additional
standard cable lengths.
Optimized with features for both IT and manufacturing
environments, the Stratix 8000™ Modular Managed Ethernet
Switches are the first of their kind. The result of a joint collaboration
between Cisco and Rockwell Automation, this industrial Ethernet
switch line uses the current Cisco Catalyst operating system,
feature set and user interface, making IT professionals feel at home.
At the same time, it provides easy set-up and comprehensive
diagnostic information from within the Rockwell Automation
Integrated Architecture.
Users have the benefits of CIP interface for predefined Logix tags
and configuration screens in RSLogix 5000 programming software,
as well as diagnostic faceplates for Rockwell Software FactoryTalk
View HMI software, which is the preferred way for controls and
automation professionals to integrate networked devices. Modular
and industrially rated, the product line scales from 6 to 26 ports with
options for copper and fiber to meet a variety of applications.
