4 5
HOW TO USE THIS INSTRUCTION MANUAL

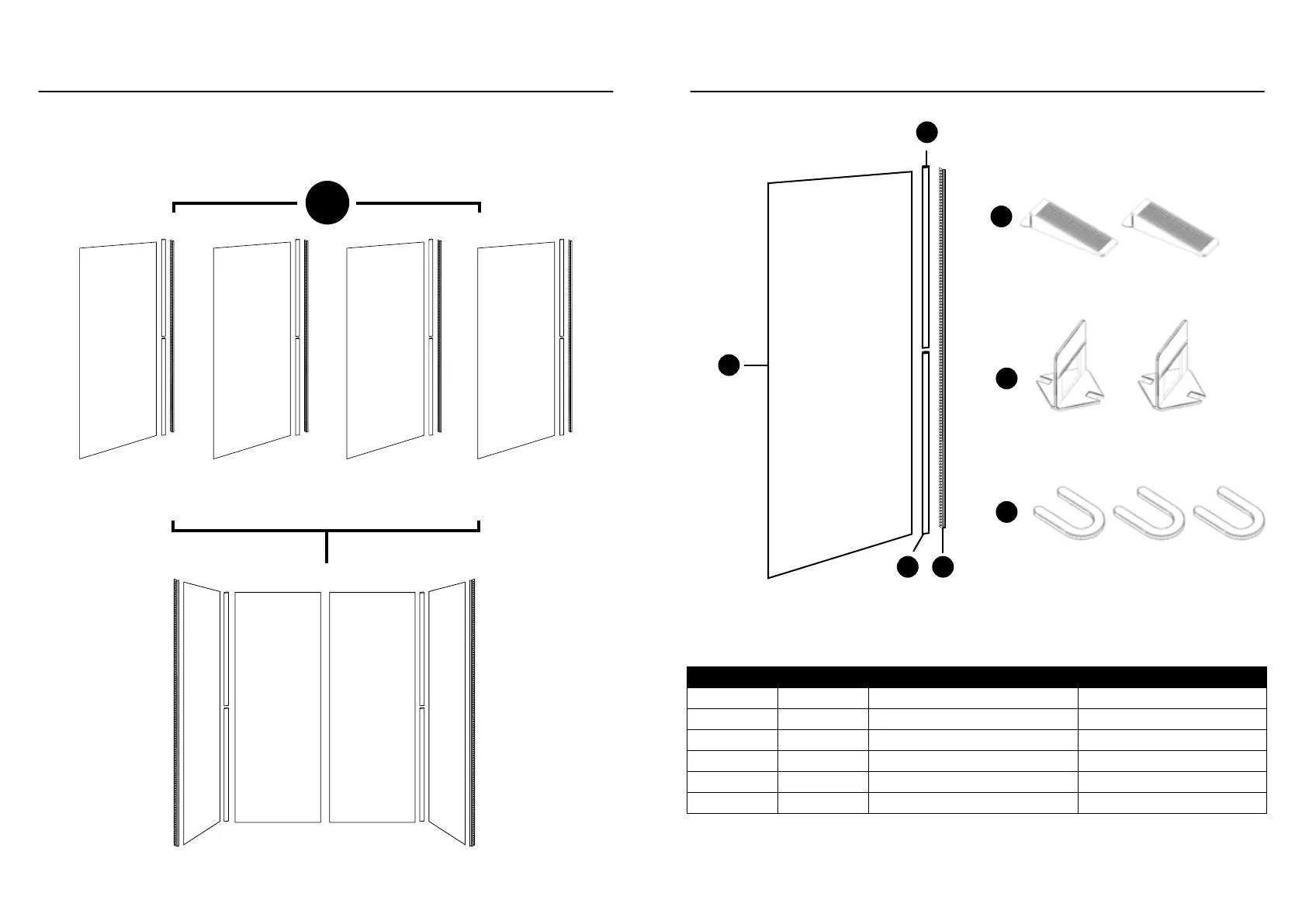

PACKAGE CONTENTS
KEY QTY DESCRIPTION DIMENSIONS
A 1 Porcelain Panel 77.5in x 28.62in x 0.24in
B 2 Inside Corner Porcelain Molding 1.25in x 38.75in
C 1 Aluminum Edge Trim 5/16in x 77.5in
D 3 Horseshoe Shim 1/16in thick
E 2 Edge Leveling Clip 1/16in thick
F 2 Wedge for Edge Leveling Clip n/a
A
B
B
C
D
E
F
x4
This Installation Manual was written to instruct how to
build a standard 60-in x 30-in shower alcove.
4 boxes/panels needed for standard 60-in x 30-in alcove shower.
*When four boxes/panels are purchased, you will have 4 inside corner porcelain
moldings and 2 aluminum edge trims left over. Save these extras for back up.
Required pieces to
complete a 60-in x 30-in
alcove shower:
4qty Porcelain Panels
4qty Inside Corner
Porcelain Moldings
2qty Aluminum Edge
Trims
60-in x 30-in Alcove Shower
To Next Page
