Allen + Roth 76246 - Assembly Instructions; Step 1: Front Panels Assembly; Step 2: Attach Center Top Panel; Step 3: Attach Front Panels to Hearth;Base

8
2. Insert wood dowels (CC) into the holes of right front
panel (C) and left front panel (B), then push center
top panel (E) to t snugly onto the assembly. Make
sure the wood dowels (CC) are seated in the pre-
drilled holes. Insert bolts (AA) and washers (BB)
into the holes in the mounting blocks to secure
the assembly.
HAND TIGHTEN ONLY.

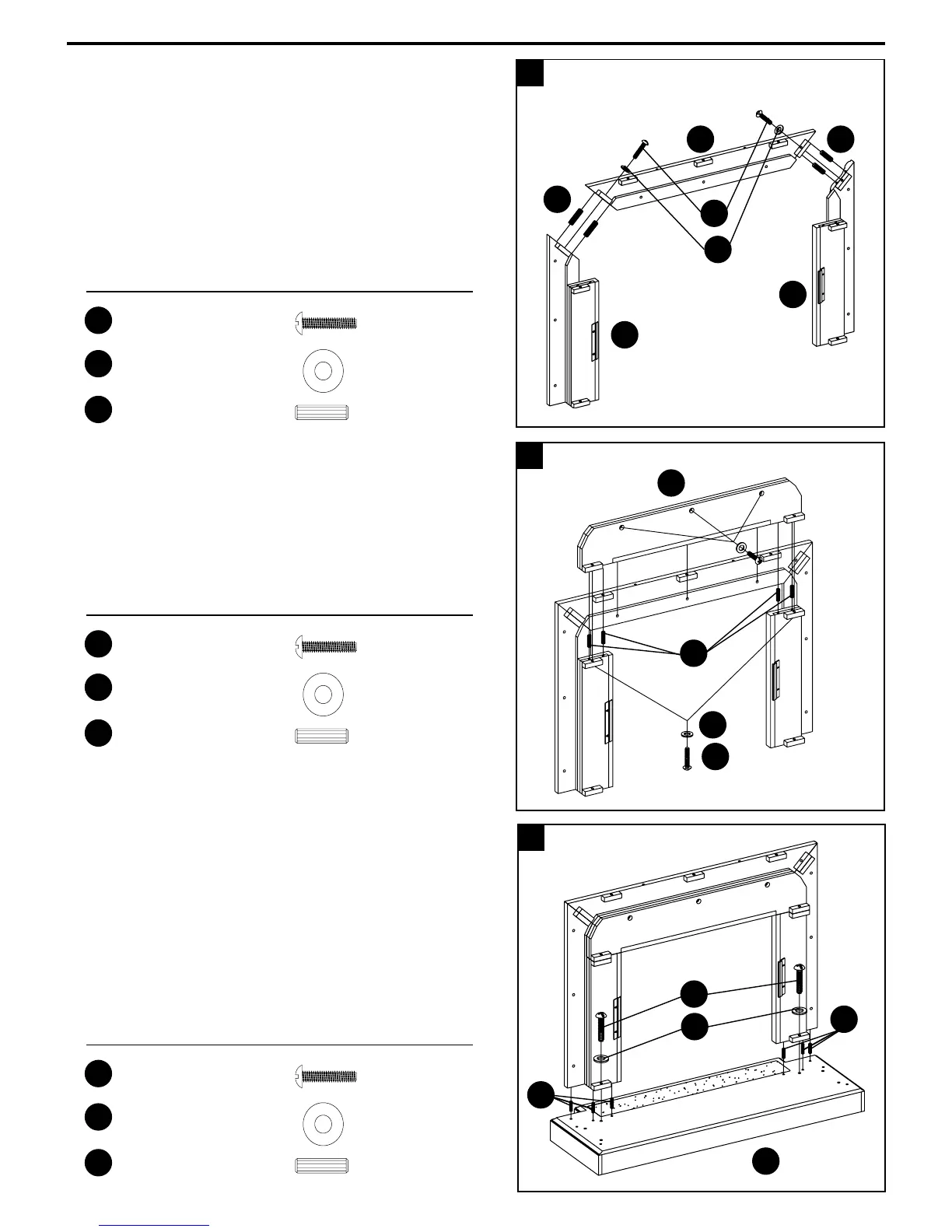

1. Set center front panel (D), right front panel (C) and
left front panel (B) face down on a scratch-free
surface.
Insert one wood dowel (CC) into each of the pre-
drilled holes on right front panel (C) and left front
panel (B), then push the two pieces to t snugly
on center front panel (D). Make sure the wood
dowels (CC) are seated in the pre-drilled holes.
Insert bolts (AA) and washers (BB) into the holes
in the mounting blocks to secure the assembly.
HAND TIGHTEN ONLY.
ASSEMBLY INSTRUCTIONS
1
CC
CC
AA
AA
BB
BB
C
D
E
CC
B
Hardware Used
Hardware Used
CC
CC
AA
AA
BB
BB
Wood Dowel
Wood Dowel
Bolt
Bolt
Washer
Washer
x 4
x 4
x 2
x 5
x 2
x 5
2
3. Set hearth/base (A) nished-side down on the oor,
and insert one wood dowel (CC) into each of the
pre-drilled holes.
Attach the completed front panels from step 2 to the
hearth/base (A). Make sure the wood dowels (CC)
are seated into the pre-drilled holes.
Insert bolts (AA) and washers (BB) into the holes in
the mounting blocks to secure the assembly.
HAND TIGHTEN ONLY.
A
Hardware Used
CC
CC
CC
AA
AA
BB
BB
Wood Dowel
Bolt
Washer
x 6
x 2
x 2
3
