3. Take the bypass tube (F) and the 5’ X 1/2” hose (G) that is supplied and fasten together. Put the bypass tube in the
smaller hole of the barrel. Connect opposite end of the bypass hose to the 1/2” QDC connector located directly below
the ow control valve.
4. Locate the spray wand hose (H). This hose will be the longer of the three. Connect one end to the spray wand (I)
and the opposite end to the1/2” QDC connector located on the 90 degree elbow below the ow control valve on the
sprayer.
NOTE: Your sprayer and components may differ from the one shown in Fig. 2. This will depend on what model you order.

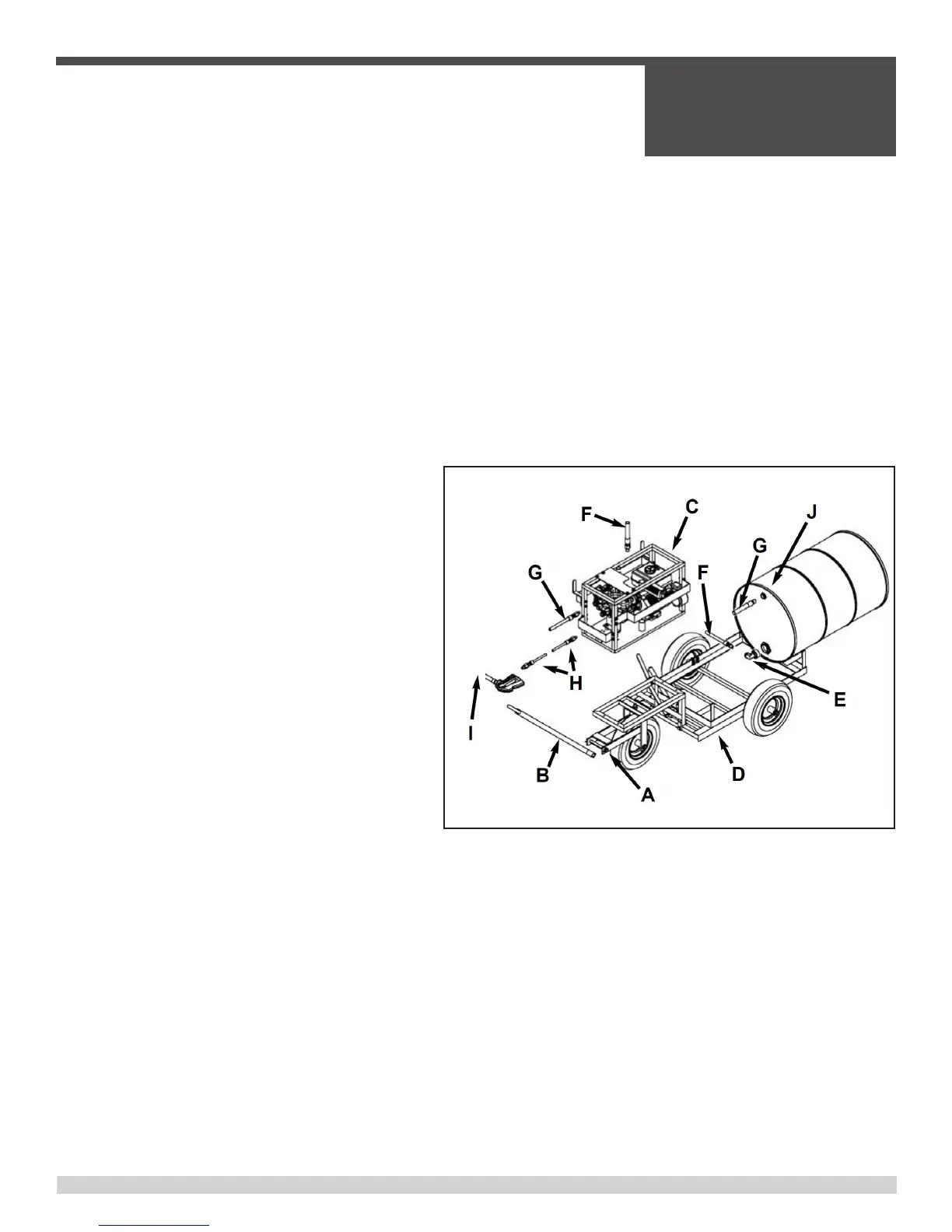

2.1.3 Assembly of Razorback® Power
Sprayers to a Tow Cart.
1. After you have uncrated all components received,
remove cotter key and washer (A). Slide out the pin
in order to install the tow handle (B).
2. Next place the sprayer (C) on the tow cart (D). Use
the fasteners provided to fasten the sprayer to the
frame. If you are using a 9910 sprayer, place the
sprayer to the front of the frame away from the
barrel. If you are using a 6500, 7560, or a 7560XL
sprayer, this process will not have to be done.
3. Take the reducer (E) and the 5’ X 3/4” hose (F) that
is supplied and fasten together. Connect that end to
the larger hole on the barrel. Connect opposite end
of suction hose to the 3/4” QDC connector located
on the sprayer.
4. Take the 5’ X 1/2” bypass hose (G) that is supplied and fasten to the smaller hole on the barrel. Connect opposite end
of the bypass hose to the 1/2” QDC connector located directly below the ow control valve.
5. Locate the spray wand hose (H). This hose will be the longer of the three. Connect one end to the spray wand (I)
and the opposite end to the1/2” QDC connector located on the 90 degree elbow below the ow control valve on the
sprayer.
NOTE: Your sprayer and components may differ from the one shown in Fig. 3. This will depend on what model you order.
NOTE: Barrels are not sold by Allen Engineering Corporation
2.1 - Sprayer Assembly, continued
Figure 3
