allen 6500 - Model 51-C Push Cart Assembly

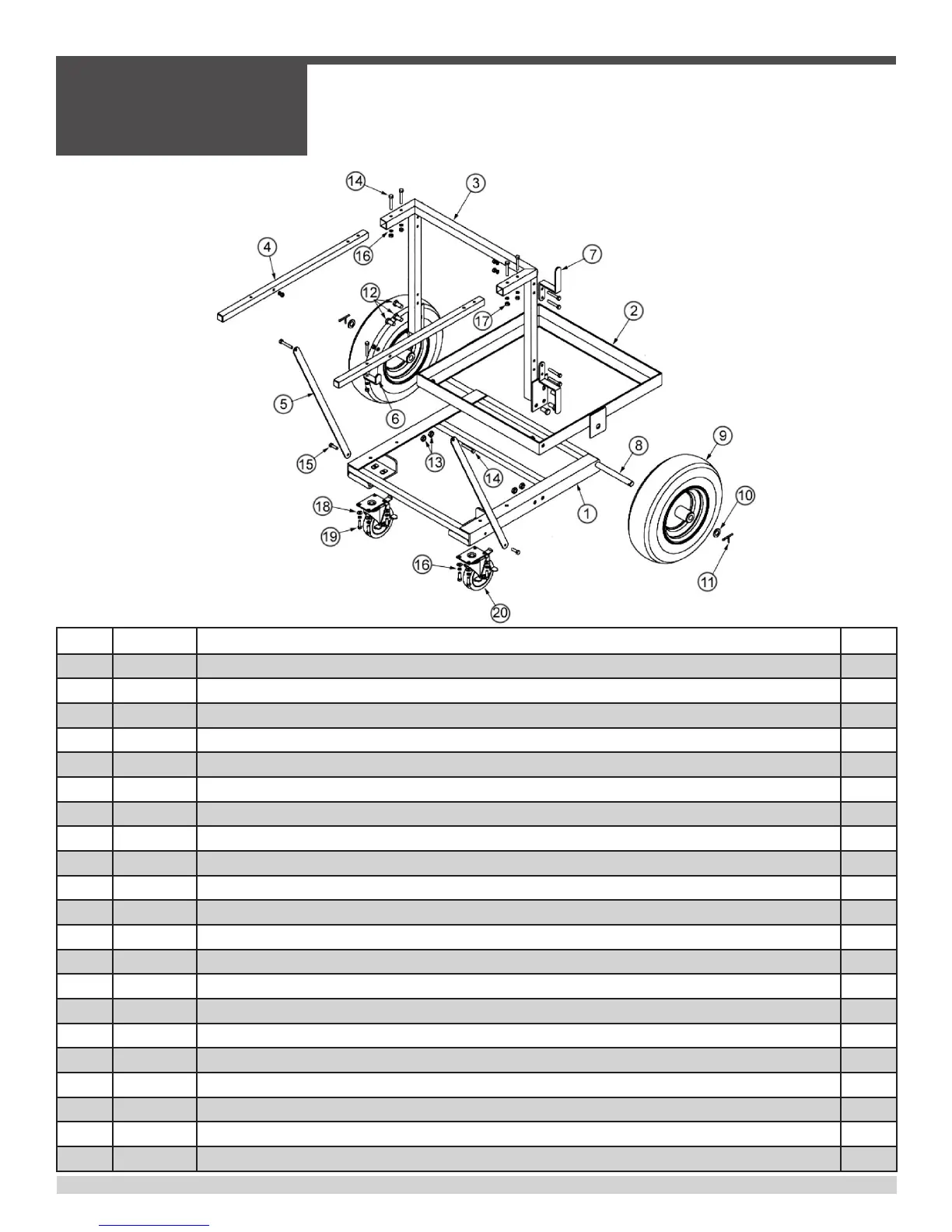

4.4 - Model 51-C Push Cart Assembly,
Illustration & Parts List
ITEM PART # DESCRIPTION QTY
- 221075 Assembly, Power Sprayer Push Cart (Two Pneumatic Tires and Two Casters) -
1 016023 Frame, Prayer Base 1
2 016022 Frame, Barrel Base 1
3 016021 Frame, Sprayer Handle 1
4 018016 Handle, Sprayer 2
5 010253 Brace, Sprayer Handle 2
6 010252 Bracket, Spray Wand Holder 1
7 010242 Bracket, Sprayer Hose Hanger 2
8 011163 Axle, Sprayer Assembly Wheel 1
9 221058 Wheel and Tire Assembly 2
10 010087 Fastener, Flat Washer, 3/4” 2
11 010133 Pin, Cotte, 3/16” x 2” 2
12 010067 Fastener, Bolt, 1/2”-13NC x 1” 6
13 010106 Fastener, Hex Nut, 1/2”-13 NC 6
14 010023 Fastener, Bolt, 5/16”-18NC x 1-3/4” 11
15 010019 Fastener, Bolt, 5/16”-18NC x 3/4” 2
16 010090 Fastener, Lock Washer, 5/16” 21
17 010100 Fastener, Nut, 5/16”-18NC 11
18 010082 Fastener, Flat Washer, 5/16” 8
19 010020 Fastener, Bolt, 5/16”-18NC x 1 8
20 038121 Wheel, Caster 2
SECTION 4
PARTS
038479Page 42
