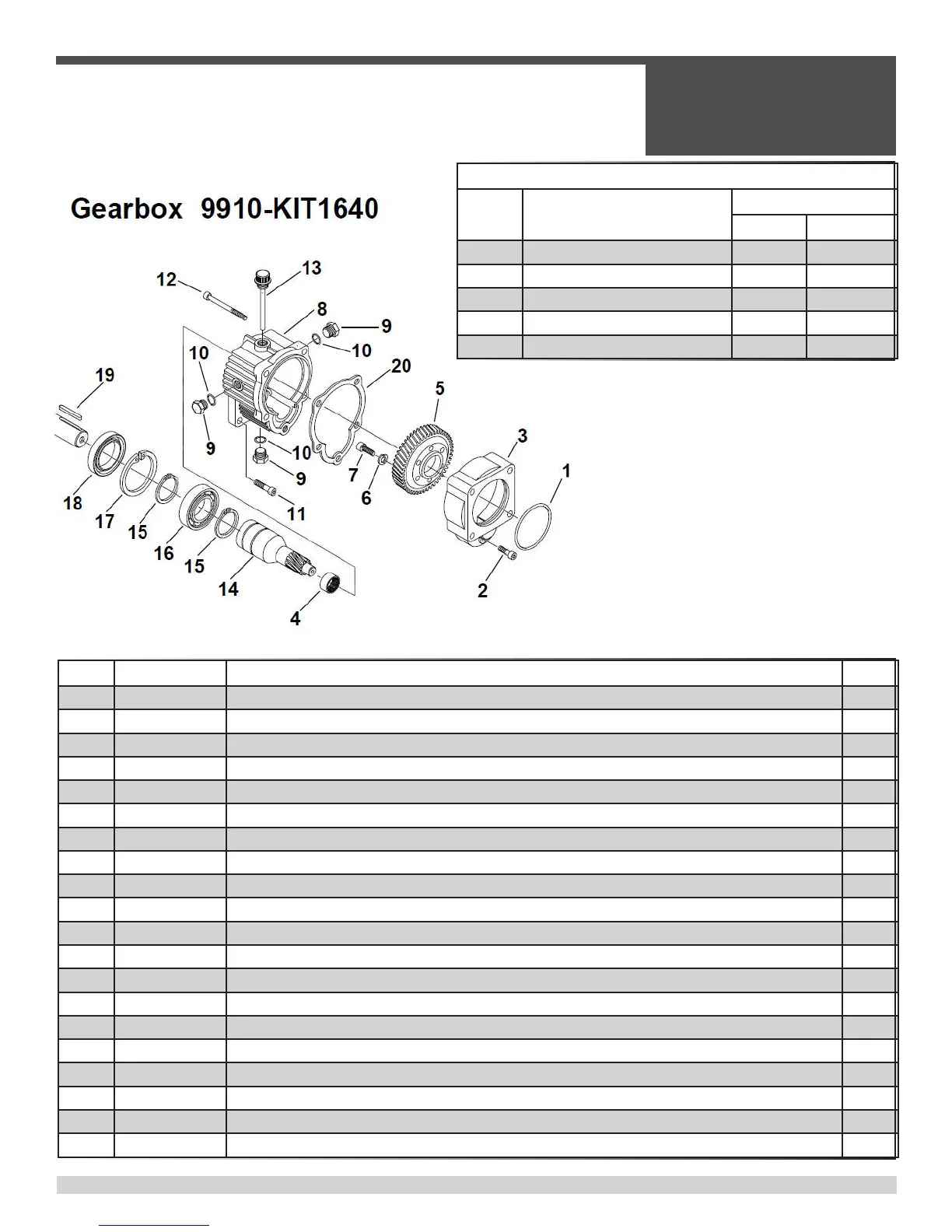

allen 6500 - Model 9910 Pump Gearbox

ITEM PART # DESCRIPTION QTY
1 9910-620561 O-Ring 1
2 9910-180030 Fastener, Bolt, M8 x 20mm 1
3 9910-621000 Pump Adapter Flange 1
4 9910-620990 Bearing 1
5 9910-651620 Gear 1
6 9910-200231 Lock Washer 6
7 9910-620470 Fastener, Bolt, M10 x 20mm 3
8 9910-620960 Gearbox Body 1
9 2406-0023 Plug 2
10 9910-740290 O-Ring 2
11 9910-651000 Fastener, Bolt, 5/16” x 24 UNF x 1 4
12 9100-621010 Fastener, Bolt, M10 x 75mm 4
13 9910-1140370 Vent Plug 1
14 9910-621660 Pinion Gear 1
15 9910-320240 Retaining Ring (External) 2
16 9910-961780 Bearing 1
17 9910-961790 Retaining Ring (Internal) 1
18 9910-961800 Seal 1
19 9910-881090 Key 1
20 9910-620950 Gasket 1
4.9 - Model 9910 Pump Gearbox,
Illustration & Parts List (9910-D30GRGI)
FASTENER TORQUE REQUIREMENTS
ITEM DESCRIPTION
TIGHTENING TORQUE
In. Lbs. Nm
2 Fastener, Bolt, M8 x 20mm 218.7 24.5
7 Fastener, Bolt, M10 x 20mm 171.4 19.6
9 Plug 171.4 19.6
11 Fastener, Bolt, 5/16” x 24 UNF x 1 218.7 24.5
12 Fastener, Bolt, M10 x 75mm 218.7 24.5
