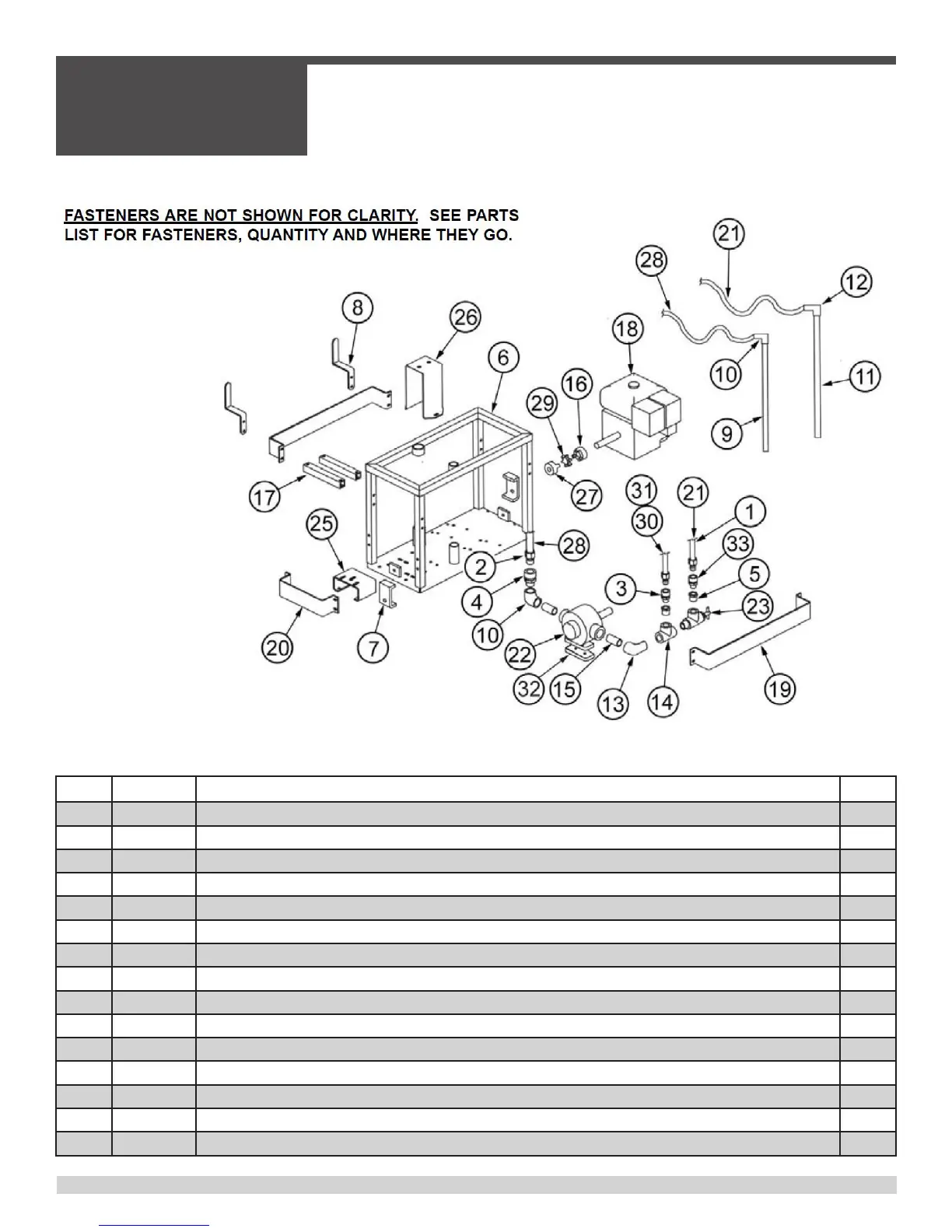

4.2 - Model 7560 & 7560XL Assembly,
Illustration & Parts List
Item Part# Description Qty
1 010177 Nipple, QDC, Male, 1/2” 2
2 010178 Nipple, QDC, Male, 3/4” 1
3 010189 Coupler, QDC, Female, 1/2” 1
4 010190 Coupler, QDC, Female, 3/4” 1
5 010208 Bushing, Reducer, 3/4” X 1/2” 2
6 010239 Frame 1
7 010241 Lock, Barrel Mount 2
8 010242 Bracket, Hose Hanger 2
9 010243 Pipe, Suction 1
10 010244 Elbow, 3/4”, 90°, Female 2
11 010245 Pipe, By-Pass 1
12 010246 Elbow, 1/2”, 90° Female 1
13 010259 Elbow, 3/4”, 90° Street 1
14 010321 Tee, 3/4”, Female 1
15 010345 Nipple, Pipe, 3/4” x 3”, Galvanizedanized 2
SECTION 4
PARTS
038479Page 38
To Next Page
