Removing the Transport Brackets
To prevent damage during transportation, the machine
has been equipped with four red transport brackets
(refer to Figure 9 for 12 lb. (60 l), 14 lb. (65 l), 18 lb.
(75 l), 25 lb. (100 l), 30 lb. (135 l) and 35 lb. (165 l)
capacity models; refer to Figure 10 for 55 lb. (235 l)
and 75 lb. (305 l) capacity models [depending on
model number]) to eliminate every possible movement
of the tub.
After the machine has been placed level, take off the
service panels and the back panel to remove these
transport brackets.
For 12 lb. (60 l), 14 lb. (65 l), 18 lb. (75 l), 25 lb.
(100 l), 30 lb. (135 l) and 35 lb. (165 l) capacity
models, remove the panel braces. Refer to Figure 9.

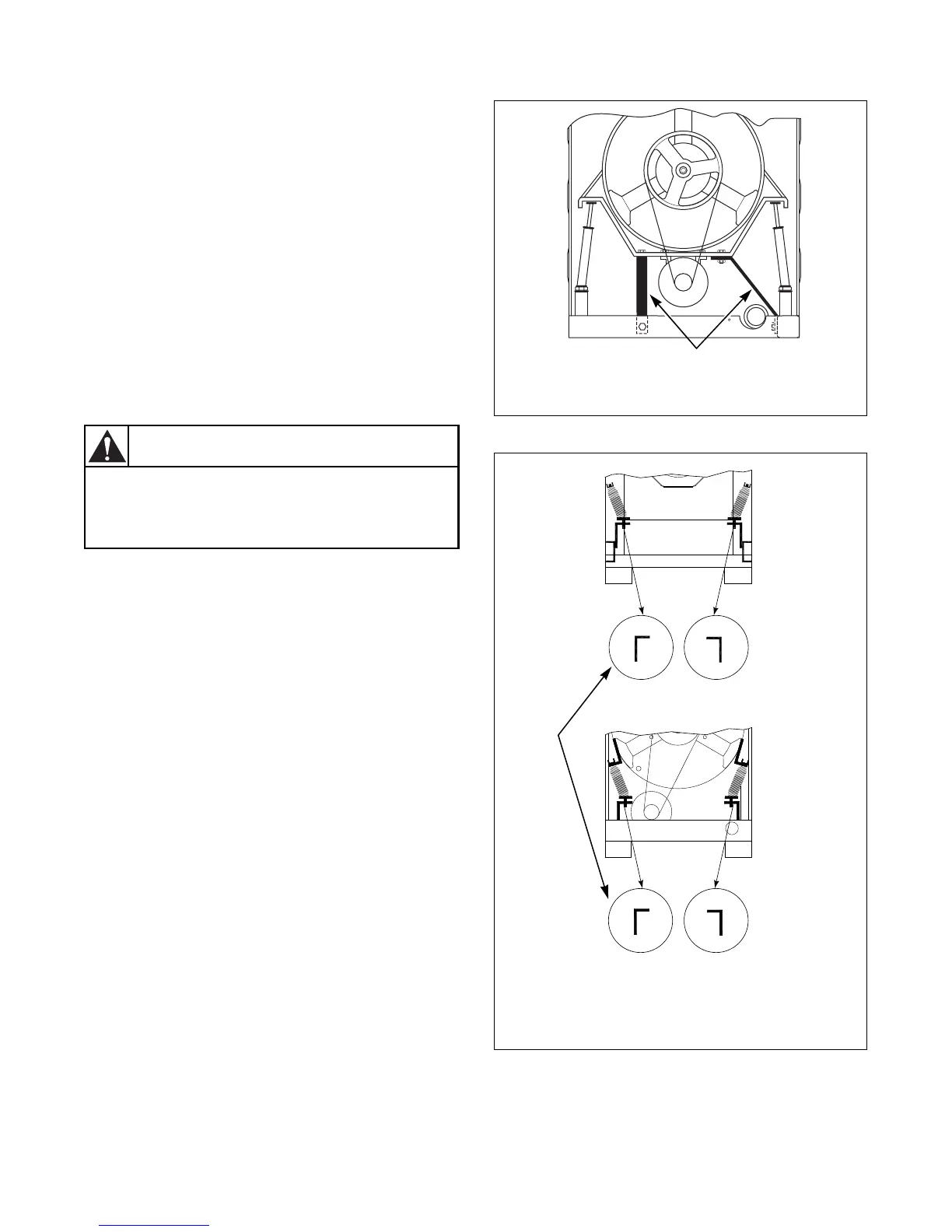

Figure 9
Figure 10
The machine must never be activated
before removing these transport
brackets.
W489
WARNING
1 Panel Braces
CFS487N
1 Transport Brackets
CFD34N
CFD34N
1
CFS487N
1
FRONT
REAR
55 LB. (235 L) AND 75 LB. (305 L)
CAPACITY MODELS
