Operation
Machine Familiarization Guide

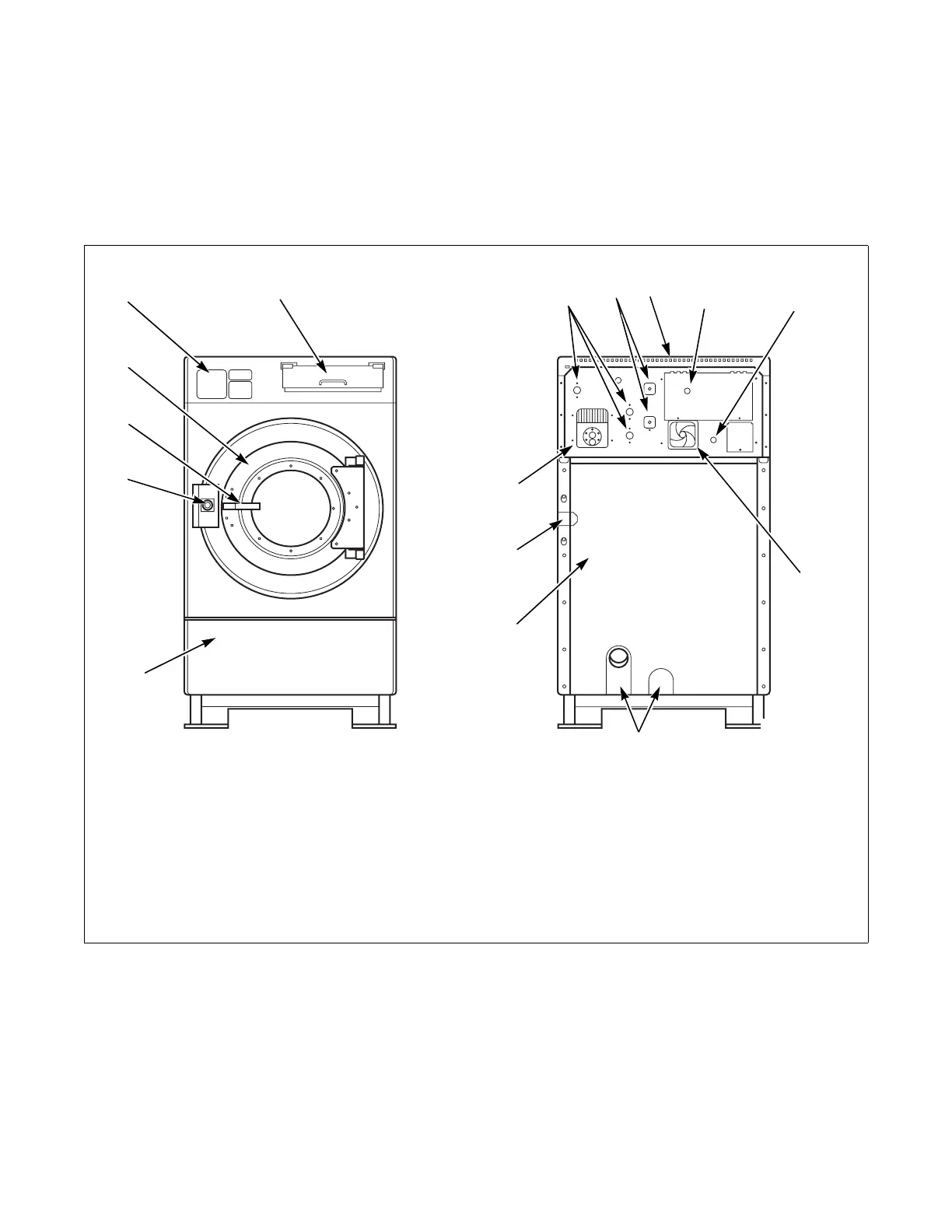

The machine familiarization guide in Figure 2 and
Figure 3 identifies major operational features of the
washer-extractor.
Figure 2
PHM696N
1 Front Service Panel 9 Chemical Service Connection
2 Door Release 10 Water Service Connections (2 std)
3 Door Handle 11 Lubrication Points for Bearings
4 Loading Door 12 Top Service Panel
5 Control Panel 13 Chemical Signal Control Connection
6 Supply Dispenser 14 Power Service Connection
7 Rear Service Panel 15 Cooling Fan and Filter
8 Steam Service Connection 16 Drain Service Connections (1 std)
3
2
6
1
7
12
11
16
8
15
4
5
14
13
9
10
