Outputs
IR Ignition Reset (Gas Models
Only)
KA1 Auxiliary Output 1
KM1 Drive Power
KM2 Auxiliary Output 2
OPT Optional Heat Control Relay
PO1 Programmable Output 1
PO2 Programmable Output 2
PO3 Programmable Output 3
RUN Airflow Proving Run Output
Table 10
Factory Test Menu

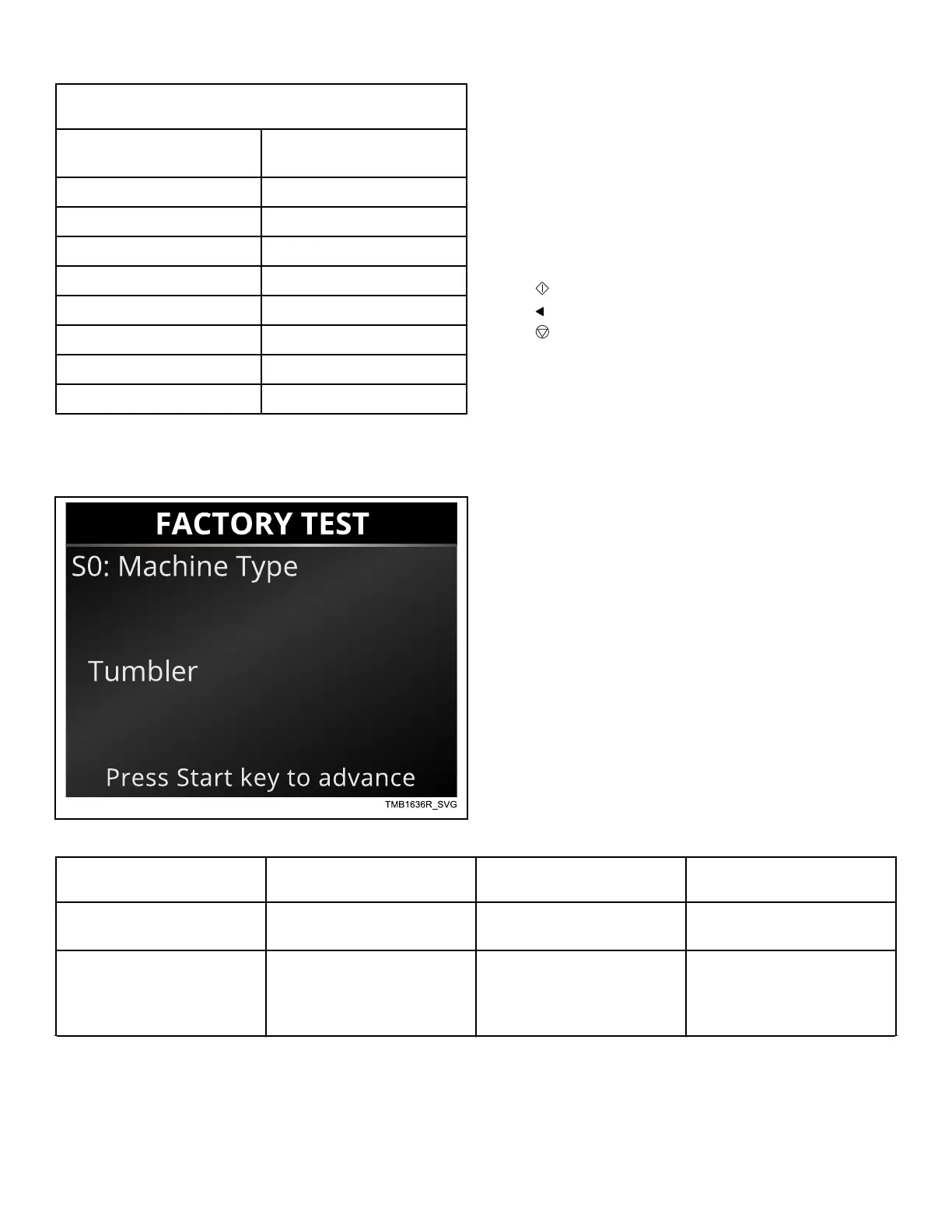

Figure 33
If enabled (refer to Globals Menu), the Factory Test Menu allows
the user to run a diagnostic test cycle. The control must be in
Start Mode.
At the start of the factory test cycle, the control enters Factory
Test Mode. The command message at the bottom of the Factory
Test Menu display will show the remaining step time or prompt
the user for input throughout the test cycle. Refer to Table 11 for
test sequence.
When in Factory Test Mode :
•
The keypad advances the control to the next test step.
• The keypad returns the control to the previous test step.
•
The keypad terminates the factory test cycle.
Step Test Cycle Step Display Description
0 Machine Type "Tumbler" This test displays the machine
type.
1 Control Software Version XXX.YY XXX is the control software
version number and YY is the
control software subversion
number.
Table 11 continues...
Diagnostics Menu
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
42 Part No. 70549501ENR6
